CrimeStopper SV-6709 Reference Manual

SV-6709
Features
1. An angle of view 135°
2. Auto E. Shutter, Auto Gain control, Auto W.B.
3. Small size
4. Quick Disconnect plugs
Specifications
• Chip Brand -----------------1/3" color CCD Sensor
• Effective Pixels-------------NTSC:512(H)×492(V)
• Sync System-----------------Internal
• Resolution-------------------More than 330 TV Line
• Minimum Illumination-----0.7Lux/F1.6/50IRE
• S/N Ratio (AGC Off)-------More than 48 db
• Gain Control-----------------Auto
• Exposure---------------------Auto E. Shutter
• Supply Voltage--------------DC 12V.
• Power Consumption--------100mA
• Dimension--------------------25.4mm×60mm.
• Video Output----------------1.0Vp-p Composite
• Gamma Correction----------0.45
• Mirror Function-------------optional
• White Balance---------------Auto(2500° k~9500° k)
.
PAL: 512(H) ×582(V)
1/60 (1/50)-1/100000Sec
(75Ω Load)

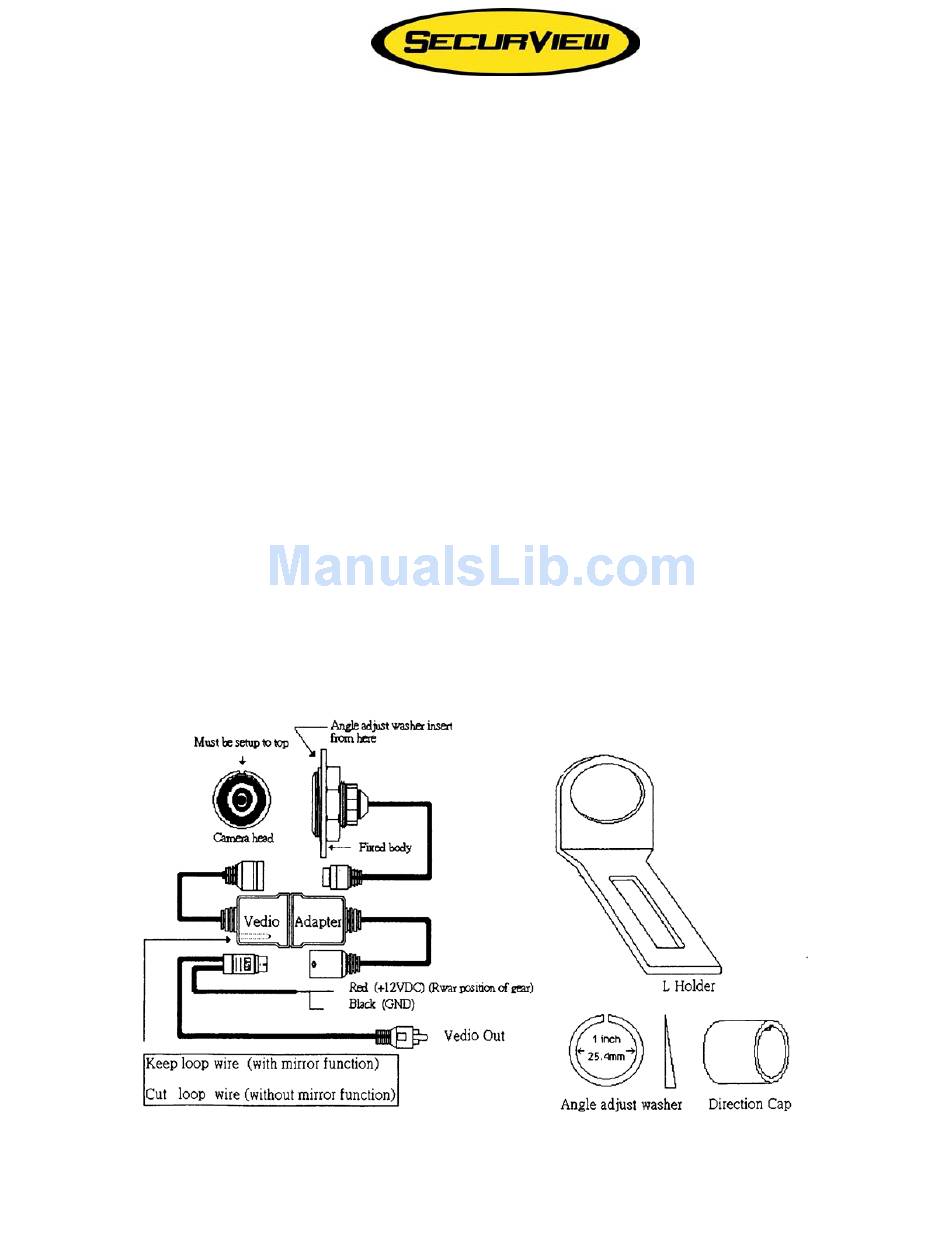

Installation
