INSTALLATION INSTRUCTION
The SV-6300 universal mount waterproof back-up cameras are designed to be
installed on any vehicle. Most installations are easy to install with no drilling
required, requiring minimal installation time.
This uniquely designed product can be of use for any passenger car, SUV and
Van, also can be of use for large truck, school bus, bus and boat as well.
Furthermore, it can not only be installed on the license plate, but anywhere on
the vehicle, such as under the bumper, on the sides of cargo trailers or above the
hatch.
SPECIFICATION:
Image Device:
TV System:
Operating Voltage:
Image:
Video Output:
Resolution:
Illumination:
Current Consumption:
Lens:
View Angle:
Water Resistance:
INSTALLATION TIPS:

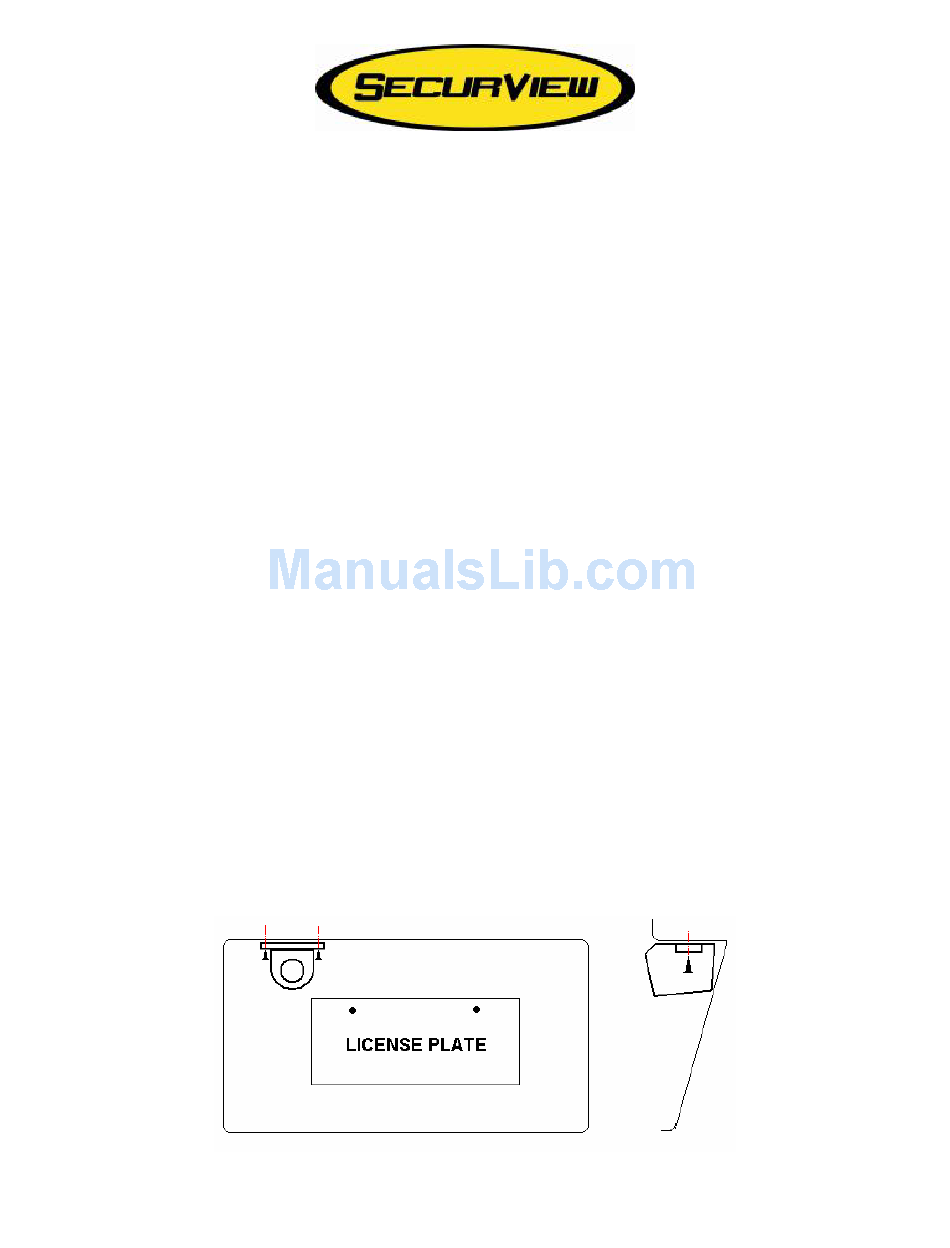

Step 1. Find a flat place to the left or right of license plate or mounting surface.
Step 2. Mount the SV-6300 camera using screws provided to secure the camera
base to your chosen mounting location (Do not over tighten screws).
TECHNICAL SUPPORT: (800) 998-6880
SV-6300 OEM
SV-6300 OEM-IR
OmniVision CameraChip
NTSC full color
12 V DC
Mirror image or non mirror image (optional)
1.0Vp-p, 750Ohm
380 TV Lines
2Lux/F1.2, 0Lux with Night-vision (SV-6300 OEM-IR)
Max. 60mA/ 200mA for Night-vision
f=2.8mm/f=2.0
115 degrees
IP68
TM
VER 2.22.07
Advertisement
Related Manuals for CrimeStopper SV-6300.OEM
Summary of Contents for CrimeStopper SV-6300.OEM
-
Page 1: Installation Instruction
SV-6300 OEM-IR INSTALLATION INSTRUCTION The SV-6300 universal mount waterproof back-up cameras are designed to be installed on any vehicle. Most installations are easy to install with no drilling required, requiring minimal installation time. This uniquely designed product can be of use for any passenger car, SUV and Van, also can be of use for large truck, school bus, bus and boat as well. - Page 2 Step 3. Wire connections: Connect the Camera’s (Yellow) connector to video input on monitor unit; Black connector is for the power connected to DC 12V. A. Connect the yellow (RCA) connector to video monitor input connection, and the black connector to the video monitor power output connector, if the Rear view monitor unit has auto reverse camera power on feature.
- Page 3 C. Connect the yellow (RCA) connector to camera input on Video Switch Control unit (3VSC), if using Rear, Left & Right 3 camera’s, connect the black connector to Video Switch Box power distributor wire base on rear, left & right operator options. D.
-
Page 4: New Feature
The two pin white connector is for Reverse Image/Mirror Image selection. This camera will give a Reverse image for use with Crimestopper Mirror Monitors. By placing the included jumper on this plug the camera will give a Mirror Image for use with aftermarket screens or for the customer looking for the Mirror image.
