Summary of Contents for Sceptre E22

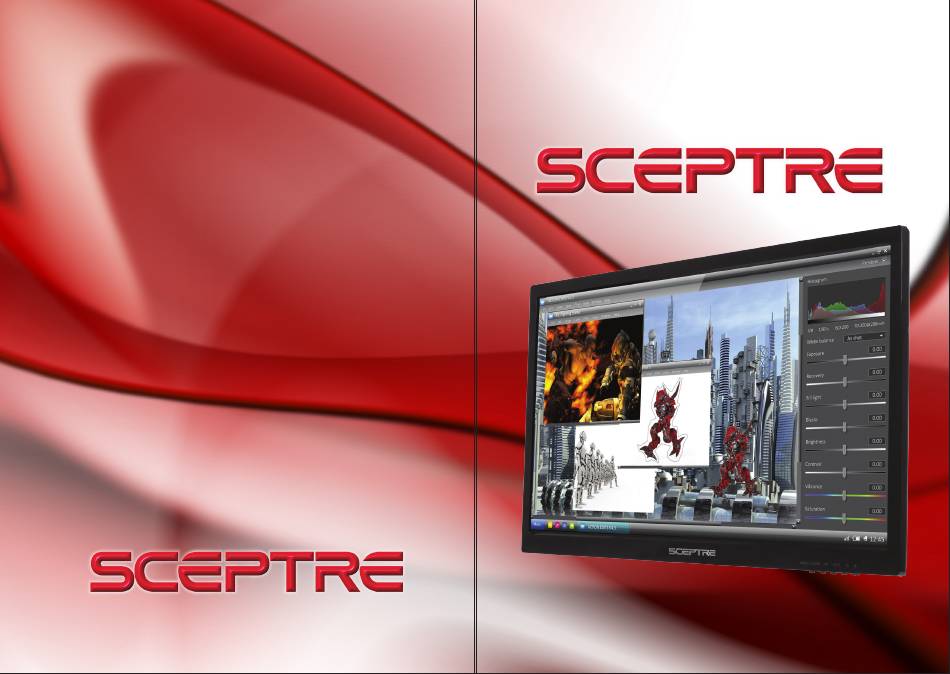

- Page 1 LED MONITOR WWW.SCEPTRE.COM WWW.SCEPTRE.COM...
-
Page 2: Important Information
Important Information SCEPTRE E22 Page1... -
Page 3: Fcc Compliance Statement
The Federal communications Commission warns that changes or modifications to the unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Page2 SCEPTRE E22... - Page 4 “Le présent appareil numérique n’èmet pas de bruits radioélectriques dé passant les limites applicables aux appareils numé riques de la class B prescrites dans le Rè glement sur le brouillage radioé lectrique é dicté par le ministè re des Communications du Canada." SCEPTRE E22 Page3...
-
Page 5: Important Information
Page4 SCEPTRE E22... -
Page 6: Tips And Safety Precautions
Unplug the power cord before cleaning the It is not recommended to use the E22 LED E22 LED MONITOR. Do not use a liquid or MONITOR in a portrait format (by rotating a spray cleaner for cleaning the product. - Page 7 Pulling the power cable when it will not be used for a long period of itself may damage the wires inside the time. This will protect the E22 LED cable and cause fire or electric shocks. MONITOR from damage due to power When the product will not be used for an surges.
-
Page 8: Table Of Contents
MISC.............................23 Supported PC Resolution ........................24 Supported Video Resolution ........................24 Troubleshooting ............................25 How do I clean the LED Monitor?......................28 Specification .............................29 Call Us If You Need Help! ........................30 LIMITED PRODUCT WARRANTY ......................31 Disclaimer & Copyright Information ......................33 SCEPTRE E22 Page7... - Page 9 Dear SCEPTRE Customer, Congratulations on your new SCEPTRE E22 LED monitor purchase. Thank you for your support. To ensure safety and many years of trouble free operation of your LED monitor, please read the manual carefully before making any adjustments, and keep them in a safe place for future reference. We hope you enjoy your new SCEPTRE monitor.
-
Page 10: Opening The Package
Opening the Package The SCEPTRE E22 LED monitor is packaged in a carton together with standard accessories. The weight of the LED display is approximately 6.61 lbs. Since the LED panel can be easily scratched or broken, please handle the product gently. -
Page 11: Setting Up Your Monitor
PC and turn on the PC and the monitor. Under Windows, use your mouse to select Desktop. Once you’re on the desktop, right-click on the wallpaper and select the RESOLUTION option. Change your resolution to 1920x1080 and click on APPLY. Page10 SCEPTRE E22... -
Page 12: Mounting Preparations
The screw depth of the mounting pattern should not exceed 7mm. The 4 screws removed are for securing the monitor stand only. If you are mounting the monitor please consult a qualified installer for further instructions on bracket support and wall support. SCEPTRE E22 Page11... -
Page 13: Identifying Front And Rear Panel
This button is also the hotkey for volume up. EXIT – The exit button exits either the on screen menu or your current selec ted option. - The power button turns the monitor on or off. Page12 SCEPTRE E22... -
Page 14: Connections
POWER – This plug is responsible for providing power to the monitor. Understanding Your Cables & Connections Cable Corresponding Connection Name Cable Picture Picture (digital video) (analog video) 3.5 mm Mini-jack HDMI *The cables above do not represent the package’s actual content. SCEPTRE E22 Page13... -
Page 15: Connecting The Led Monitor
Obtain a DVI cable and connect to the DVI connection on your PC. Connect the other end of the cable to your E22 LED MONITOR. Turn on the power of both the E22 LED MONITOR and the PC. Please Note: ... -
Page 16: If You Have Vga Connection On Your Video Card
60 Hz frequency before using the E22 LED MONITOR. You can find the refresh rate information and change it by RIGHT CLICKING on the desktop with nothing selected. After you have right clicked, select the PROPERTIES option. -
Page 17: If You Have Hdmi Connection On Your Cable Or Satellite Box
2. Obtain a HDMI cable and connect one end to the back of the monitor and the other end to the back of the cable or satellite box. 3. Turn on the power of both the E22 LED MONITOR and the cable or satellite box. Please Note: ... -
Page 18: On Screen Display (Osd) Menu
MENU button to select the option you want to adjust. Use the UP or DOWN buttons to adjust each option’s values. When you want to exit press the EXIT button. SCEPTRE E22 Page17... -
Page 19: Picture Settings
If it sets too low, the picture will looked washed out. DCR is a function that automatically adjusts the contrast for you depending on the graphics displayed at the time. Page18 SCEPTRE E22... -
Page 20: Color Adjust
WARM – This option adjusts the white balance towards the red color giving the picture a reddish tint and warmer look. USER COLOR – This option lets the user adjust the white balance by tweaking the RED, GREEN, and BLUE color. SCEPTRE E22 Page19... -
Page 21: Image
SHARPNESS – This option adjusts the sharpness of the picture. Please Note: Always use auto adjust first to adjust the image. This option is only available with a VGA connection. The image option will be disabled if you are using HDMI or DVI. Page20 SCEPTRE E22... -
Page 22: Signal Source
Press MENU to open the OSD then highlight SIGNAL SOURCE by pressing the UP or DOWN buttons. Press MENU to enter the function. Press the UP or DOWN buttons to select the source you want to change to. SCEPTRE E22 Page21... -
Page 23: Osd Menu
TRANSLUCENCE – This option adjusts the transparency of the OSD menu. Please Note: Changing the language of the OSD will alter all the messages and OSD language of the monitor. There is no reset for this function. Page22 SCEPTRE E22... -
Page 24: Misc
ALL RESET – This option resets all values in the OSD back to factory standard. SCALE – This option forces the picture into 16:9 or 4:3 mode. INFORMATION – This option shows the current video signal’s resolution and syncing frequency. SCEPTRE E22 Page23... -
Page 25: Supported Pc Resolution
Supported Video Resolution VIDEO RESOLUTION 480p 720p 1080i 1080p *Once a mode is optimized, there is no need to make any further adjustment as long as the VGA card remains unchanged. **Specifications are subject to change without notice. Page24 SCEPTRE E22... -
Page 26: Troubleshooting
Click on OK 2-3 times to finalize your change. If you do NOT have a CRT monitor or it’s already broken, please make sure both the E22 LED monitor and your computer is turned off. Turn on the LED monitor and the computer. - Page 27 HOW DO I RESET THE Make sure there is a valid video signal to the monitor and press menu MONITOR to open the OSD. Look for ALL RESET under MISC. options. Page26 SCEPTRE E22...
- Page 28 PORT I CAN’T GET TO THE Make sure you are using a VGA video connection. If you have DVI or IMAGE OPTION HDMI, that option will be disabled because it only adjusts analog UNDER THE OSD signals. SCEPTRE E22 Page27...
-
Page 29: How Do I Clean The Led Monitor
Wipe the display with a dry micro-fiber cloth or 100% cotton cloth afterwards. Page28 SCEPTRE E22... -
Page 30: Specification
100mm x 100mm (M4 x 7mm screws) Features VGA, DVI, HDMI (HDCP supported), AUDIO IN SPEAKER OUTPUT 2 Watt x 2 FCC, cTUVus, Energy Star, RoHS, MS WHQL Compliance (Windows 8), ISTA 3A Energy Star V6.0 *Specifications are subject to change without notice. SCEPTRE E22 Page29... -
Page 31: Call Us If You Need Help
For more information on warranty services or repairs after the warranty period, please contact our support department at the number below. For technical help, contact our SCEPTRE Technical Support Group via email or phone. Please have your SCEPTRE Product Number (P/N), Serial Number (S/N), and date of purchase available before you call. -
Page 32: Limited Product Warranty
Service Labor During a period of one (1) year from the effective warranty date, SCEPTRE will provide, when needed, service labor to repair a manufacturing defect at SCEPTRE’s own Service Center. To obtain warranty service in the Untied States, you must first call our Customer Support at (800) 788-2878. - Page 33 There are millions of pixels on a LCD screen. Therefore, there is industry standard specification regarding dead or bad pixels. SCEPTRE sets limit on the LCD at 3 dead pixels in a cluster adjacent to each other, 5 dead pixels of the same brightness and color. Any number of dead or bad pixels under the limit is considered normal specification.
-
Page 34: Disclaimer & Copyright Information
Licensing LLC.” HDCP is a trademark or registered trademark of Digital Content Protection, LLC. Sceptre, Inc. shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product.
