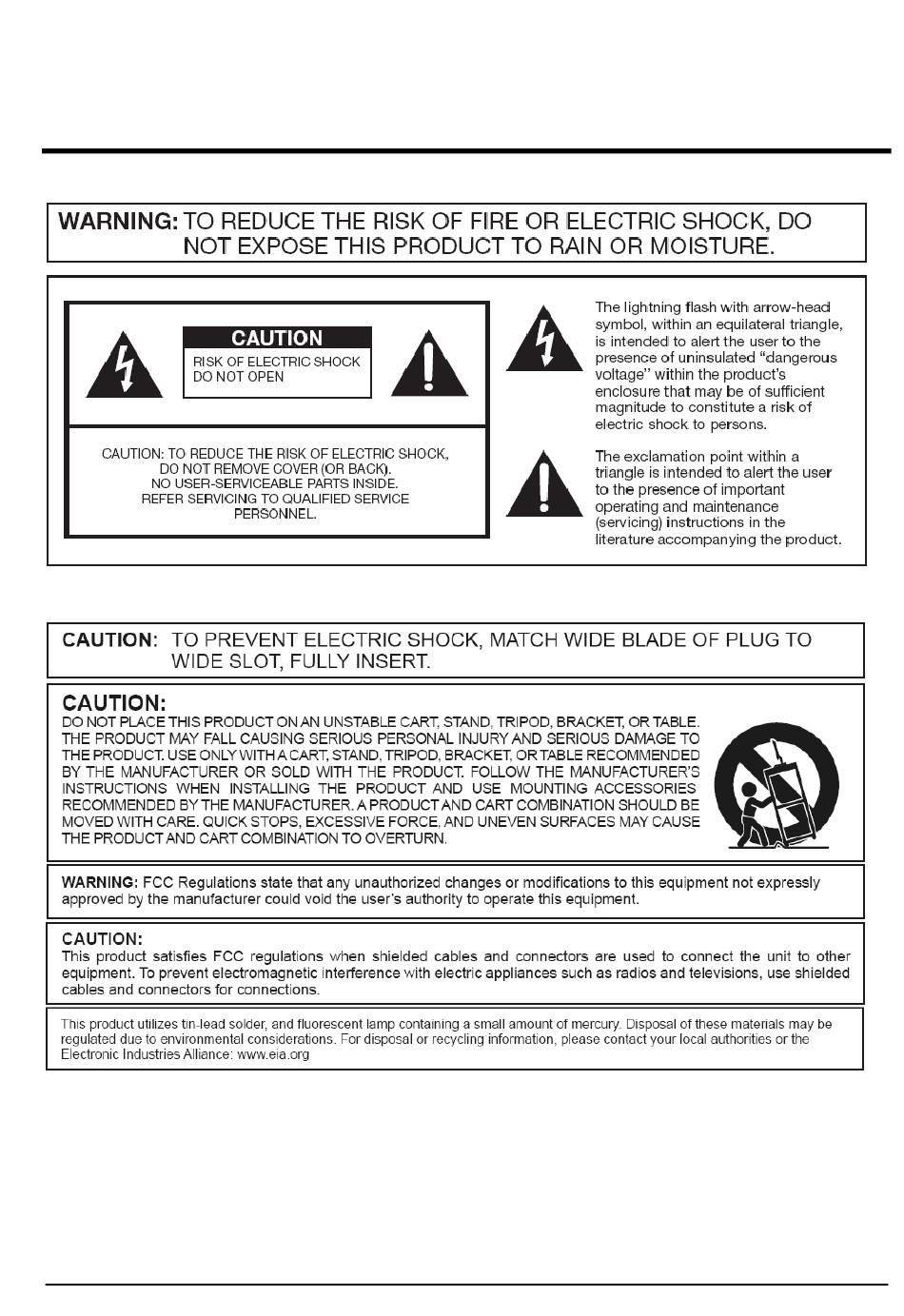

Page 1: Important Information
Important Information SCEPTRE E20 Page1... -
Page 2: Fcc Compliance Statement
The Federal Communications Commission warns that changes or modifications to the unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Page2 SCEPTRE E20... - Page 3 Regulation of the Canadian Department of Communications. “Le présent appareil numérique n’èmet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la class B prescrites dans le Règlement sur le brouillage radioélectrique édicté par le ministère des Communications du Canada." SCEPTRE E20 Page3...
-
Page 4: Important Information
Page4 SCEPTRE E20... -
Page 5: Important Information
The house icon identifies that this product is for indoor use. WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. SCEPTRE E20 Page5... -
Page 6: Tips And Safety Precautions
Keep these instructions in a safe place for future reference. To avoid the risk of electric shock or It is not recommended to use the E20 LED component damage, switch off the power MONITOR in a portrait format (by rotating before connecting other components to the 90 degrees) under high temperature E20 LED MONITOR. - Page 7 time. This will protect the E20 LED Hold the power connector when removing MONITOR from damage due to power the power cable. Pulling the power cable surges.
-
Page 8: Table Of Contents
MISC................Error! Bookmark not defined. Supported PC Resolution ....................23 Supported Video Resolution ....................23 Troubleshooting .........................24 How do I clean the LED Monitor? ..................27 Specification ........................28 Call Us If You Need Help! ....................29 LIMITED PRODUCT WARRANTY ..................30 Disclaimer & Copyright Information ...................32 Page8 SCEPTRE E20... - Page 9 Dear SCEPTRE Customer, Congratulations on your new SCEPTRE E20 LED monitor purchase. Thank you for your support. To ensure safety and many years of trouble free operation of your LED monitor, please read the manual carefully before making any adjustments, and keep them in a safe place for future reference. We hope you enjoy your new SCEPTRE monitor.
-
Page 10: Opening The Package
Opening the Package The SCEPTRE E20 LED monitor is packaged in a carton together with standard accessories. Since the LED panel can be easily scratched or broken, please handle the product gently. Never place the unit on a surface with the glass facing downwards unless it is on a protective padding. -
Page 11: Setting Up Your Monitor
PC and turn on the PC and the monitor. Under Windows, use your mouse to select Desktop. Once you’re on the desktop, right-click on the wallpaper and select the RESOLUTION option. Change your resolution to 1600x900 and click on APPLY. SCEPTRE E20 Page11... -
Page 12: Mounting Preparations
The screw depth of the mounting pattern should not exceed 7mm. The 4 screws removed are for securing the monitor stand only. If you are mounting the monitor please consult a qualified installer for further instructions on bracket support and wall support. Page12 SCEPTRE E20... -

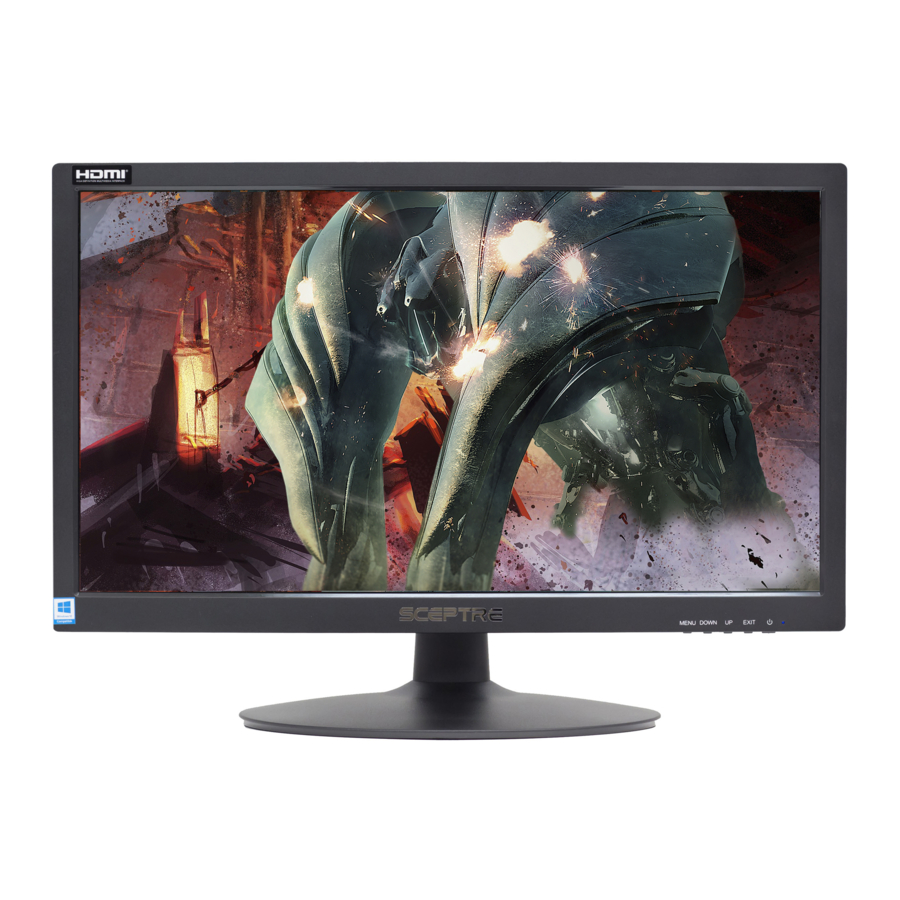

Page 13: Identifying Front And Rear Panel
This button is also the hotkey for volume up. EXIT – The exit button exits either the on screen menu or your current selected option. The power button turns the monitor on or off. SCEPTRE E20 Page13... -
Page 14: Connections
POWER – This plug is responsible for providing power to the monitor. Understanding Your Cables & Connections Cable Corresponding Connection Name Cable Picture Picture (analog video) 3.5 mm Mini-jack HDMI *The cables above do not represent the package’s actual content. Page14 SCEPTRE E20... -
Page 15: Connecting The Lcd
60 Hz frequency before using the E20 LED MONITOR. You can find the refresh rate information and change it by RIGHT CLICKING on the desktop with nothing selected. After you have right clicked, select the PROPERTIES option. -
Page 16: If You Have Hdmi Connection On Your Cable Or Satellite Box
2. Obtain a HDMI cable and connect one end to the back of the monitor and the other end to the back of the cable or satellite box. 3. Turn on the power of both the E20 LED MONITOR and the cable or satellite box. Please Note: ... -
Page 17: On Screen Display (Osd) Menu
you’re in the function already, use the button to select the option you want to adjust. Use the buttons to adjust each option’s values. When you want to exit press the button. SCEPTRE E20 Page17... -
Page 18: Brightness
– This option lets the user manually switch an input or auto where the monitor SOURCE detects a signal and changes the source automatically. – This display mode filters out blue light for users who want blue BLUE LIGHT SHIFT light protection. Page18 SCEPTRE E20... - Page 19 – This option automatically stretches any picture to the full screen regardless of picture FULL proportion. – This option forces any resolution to a 4:3 square format. – This option adjusts the sharpness of graphics and text for this monitor. SHARPNESS SCEPTRE E20 Page19...
- Page 20 H. POSITION – This option adjusts the horizontal position of the image. V. POSITION – This option adjusts the vertical position of the image. CLOCK – This option adjusts the picture clarity by large increments. PHASE – This option adjusts the picture clarity by small increments. Page20 SCEPTRE E20...
- Page 21 – This option adjusts the tint of the entire monitor. TINT – This option adjusts the color saturation of the entire monitor. SATURATION – This display mode filters out blue light for users who want blue BLUE LIGHT SHIFT light protection. SCEPTRE E20 Page21...
- Page 22 – This option adjusts the opacity of the OSD menu. OSD TRANSPARENCY – This option allows users to change the output level of the audio out port. VOLUME – This option resets all values of the menu back to factory default. RESET Page22 SCEPTRE E20...
-
Page 23: Supported Pc Resolution
Supported Video Resolution VIDEO RESOLUTION 480p 720p 1080i 1080p (scaled) *Once a mode is optimized, there is no need to make any further adjustment as long as the VGA card remains unchanged. **Specifications are subject to change without notice. SCEPTRE E20 Page23... -
Page 24: Troubleshooting
Click on OK 2-3 times to finalize your change. If you do NOT have a CRT monitor or it’s already broken, please make sure both the E20 LED monitor and your computer is turned off. Turn on the LED monitor and the computer. - Page 25 HOW DO I RESET THE Make sure there is a valid video signal to the monitor and press menu MONITOR to open the OSD. Look for RESET under the RESET option. SCEPTRE E20 Page25...
- Page 26 UNDER THE OSD AUTO ADJUST IS Make sure you are using a VGA video connection. If you have HDMI, GRAYED OUT that option will be disabled because it only adjusts analog signals. Page26 SCEPTRE E20...
-
Page 27: How Do I Clean The Led Monitor
Wipe the display with a dry micro-fiber cloth or 100% cotton cloth afterwards. SCEPTRE E20 Page27... -
Page 28: Specification
VESA Hole Pattern 100mm x 100mm (M4 x 7mm screws) Features VGA, HDMI (HDCP supported), AUDIO IN SPEAKER OUTPUT 2 Watt x 2 FCC, cTUVus, ISTA 3A, WHQL (Windows 10), Compliance RoHS *Specifications are subject to change without notice. Page28 SCEPTRE E20... -
Page 29: Call Us If You Need Help
For more information on warranty services or repairs after the warranty period, please contact our support department at the number below. For technical help, contact our SCEPTRE Technical Support Group via email or phone. Please have your SCEPTRE Product Number (P/N), Serial Number (S/N), and date of purchase available before you call. -
Page 30: Limited Product Warranty
Service Labor During a period of one (1) year from the effective warranty date, SCEPTRE will provide, when needed, service labor to repair a manufacturing defect at SCEPTRE’s own Service Center. To obtain warranty service in the Untied States, you must first call our Customer Support at (800) 788-2878. - Page 31 There are millions of pixels on a LCD screen. Therefore, there is industry standard specification regarding dead or bad pixels. SCEPTRE sets limit on the LCD at 3 dead pixels in a cluster adjacent to each other, 5 dead pixels of the same brightness and color. Any number of dead or bad pixels under the limit is considered normal specification.
-
Page 32: Disclaimer & Copyright Information
United States and other countries. Sceptre, Inc. shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product.
