Thank You for purchasing this quality-built Snapper mower. We’re pleased that you placed your confidence in the Snapper brand. When operated and maintained according to the instructions in this manual, your Snapper mower will provide many years of dependable service.
If you have any questions pertaining to your machine which your dealer cannot answer to your satisfaction, call or write the Customer Service Department at SNAPPER, McDonough, Georgia 30253. Phone: (1-800-317-7833). Protection for Children...
Page 5
Operator Safety Safe Handling of Gasoline Operation (Continued From Previous Page) (Continued From Previous Column) 6. DO NOT fill fuel containers inside a vehicle or on a truck 13. DO NOT operate mower without the entire grass catch- or trailer bed with a plastic liner. Always place the contain- er, or guards in place discharge guard, rear guard or other ers on the ground away from the vehicle before filling.
‘Engine Stop Lever’.) Slowly pull the recoil-start grip (A, Figure 3). To attach the recoil-start grip to the rope guide (B), twist the rope through the rope guide mounted on the right side of the handle. Figure 3: Attaching the recoil-start grip www.snapper.com...
Assembly Handle Height 1. Remove the wingnuts (A, Figure 4), washers (not shown), and bolts from the right and left handle brackets (B). Note: Do not remove the lower set of handle hardware (D) . 2. Adjust the handle to a higher or lower height adjustment hole (C).
2. Make sure the handle (A, Figure 6) is on the outside of the grass bag. 3. First, attach the clips (B, Figure 6) to the side of the frame assembly (C). Next, attach the clips to the top and bottom of the frame assembly. Figure 6: Installing the bag clips www.snapper.com...
Page 9
Assembly Mounting the Grass Bag 1. To mount the grass bag on the mower, raise the rear door (A, Figure 7). Holding the grass bag by the handle (B), mount the hooks (C) on either end of the grass bag frame assembly onto the rear door pivot rod (D).
Figure 9) goes through the slot in the side deflector. Figure 9: Side discharge deflector locking tabs 4. Lower the mulcher cover (A, Figure 10). 5. Attach the wire to the spark plug. Figure 8: Installing the side discharge deflector Figure 10: Releasing the mulcher cover www.snapper.com...
Assembly Mulching Tips Keep a sharp edge on the blade. A blade that is not sharp will cause the ends of the grass to become brown. Clean the underside of the mower housing. Grass and Mulching finely cuts the grass so that the grass can be easily other debris can keep the mower from working recycled.
Note: When the drive system is disengaged on a new unit, it is possible for the front wheels to rotate if lifted off the ground. This is normal and will stop after one or two hours of operation. www.snapper.com...
Operation Starting the Engine WARNING: The blade will rotate when the engine runs. IMPORTANT: Before you start the engine, operate the engine stop lever several times. Make sure the engine stop cable moves freely. Note: The engine design does not include a throttle control or an engine speed adjustment.
**Check blades more often in regions with sandy soils or high dust conditions. Replace spark plug Replace fuel filter (if equipped) Clean engine air cooling system * Whichever comes first. **Clean more often in dusty conditions or when airborne debris is present. www.snapper.com...
Maintenance Engine Maintenance Hard starting. Engine smoking. Spark plug fouling. Use the following maintenance section to keep your unit in Oil or gas saturation of the air filter. good operating condition. All the maintenance information for the engine is in the “Engine Instruction Book”. Before you start the engine, read this book.
IMPORTANT: Before you start the engine, operate the engine stop lever several times. Make sure the engine stop cable moves freely. Figure 17: Adjusting the drive cable www.snapper.com...
Maintenance Preparing the Mower for Storage WARNING: Do not remove gasoline while inside a building, near a fire, or while you smoke. Gasoline fumes can cause an explosion or a fire. 1. Drain the fuel tank. 2. Let the engine run until it is out of gasoline. 3.
2. Take the mower to an Authorized Service Center. . The grass is not cut even. 1. Check the height adjustment at each wheel. The height adjustment must be the same for each wheel. 2. Take the mower to an Authorized Service Center. www.snapper.com...
BRIGGS & STRATTON POWER PRODUCTS GROUP, L.L.C. OWNER WARRANTY POLICY LIMITED WARRANTY Briggs & Stratton Power Products Group, LLC will repair and/or replace, free of charge, any part(s) of the equipment that is defective in material or workmanship or both. Briggs & Stratton Corporation will repair and/or replace, free of charge, any part(s) of the Briggs and Stratton engine* (if equipped) that is defective in material or workmanship or both.
Page 22
(air cleaner, exhaust, charging, cooling, carburetor, fuel pump, etc.), application limitations, ambient operating conditions (temperature, humidity, altitude), and engine-to-engine variability. Due to manufacturing and capacity limitations, Briggs & Stratton may substitute an engine of higher rated power for this Series engine. www.snapper.com...
Page 23

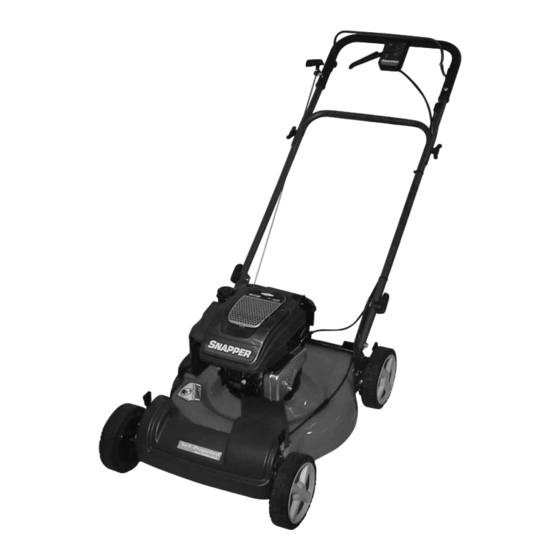

Manual del operador CORTADORAS DE CÉSPED CON CONDUCTOR A PIE SNAPPER ® DE 55.9 cm (22") de Modelo Descripción 7800604 S22675 7800605 SP22675 7800607 NS22675 7800608 NSP22675...
Page 24
Gracias por comprar este producto de calidad Snapper. Nos complace que haya puesto su confianza en la marca Snapper. Cuando se maneja y mantiene de acuerdo a las instrucciones que aparecen en este manual, su producto Snapper brindará muchos años de servicio seguro.
Page 25
Índice Seguridad del operador ............4 Ensamblaje .
Ante cualquier duda respecto a su máquina que su concesionario no pueda solucionar para su satisfacción, llame o escriba al Customer Service Department, SNAPPER, McDonough, Georgia 30253. Phone: (1-800-317-7833). Protección para los niños Preparación...
Page 27
Seguridad del operador Manejo seguro de la gasolina Manejo (viene de la columna anterior) (viene de la columna anterior) 4. NO cargue combustible con la máquina puertas adentro. 13. NO maneje la cortadora sin que el recogedor de hierba com- 5.
Para sujetar el mango del cable retráctil de arranque a la guía (B) del cable, entrelace el cable a través de la guía de cable montada en el lado derecho del asidero. Figura 3: Sujeción del mango del cable retráctil de arranque www.snapper.com...
Ensamblaje Altura de la manija 1. Retire las tuercas de alas (A, Figura 4), las arandelas (no mostradas) y los pernos de las abrazaderas izquierda y derecha del mango (C). Nota: No retire el juego inferior de aditamentos del mango (D) . 2.
2. Verifique que la manija (A, Figura 6) está en el lado exterior de la bolsa de césped. 3. Primero, sujete los ganchos (B, Figura 6) al costado del armazón (C). Luego, sujete los ganchos a la parte superior e inferior del armazón. Figura 6: Instalación de los ganchos de la bolsa www.snapper.com...
Page 31
Ensamblaje Montaje de la bolsa de césped (No todos los modelos) 1. Para montar la bolsa de césped en el cortacésped, levante la puerta trasera (A, Figura 7). Sosteniendo la bolsa de césped mediante la manija (B), monte los ganchos (C) de ambos extremos del armazón de la bolsa de césped sobre la barra- pivote (D) de la puerta trasera.
4. Baje la cubierta del triturador (A, Figura 10). 5. Conecte el cable a la bujía. Figura 9: Lengüetas de enganche del deflector de descarga lateral Figura 8: Instalación del deflector de descarga lateral Figura 10: Liberación de la cubierta del triturador www.snapper.com...
Ensamblaje Recomendaciones acerca del triturado Mantenga afilada la cuchilla. Una cuchilla que no está afilada provocará que los extremos del césped se vuelvan de color marrón. El triturador corta en trozos pequeños el césped para que el césped Limpie el lado de abajo de la cubierta del cortacésped. El pueda reciclarse fácilmente.
Nota: Cuando el sistema de tracción está desactivado en una unidad nueva, es posible que las ruedas delanteras giren si se levantan del suelo. Esto es normal y dejará de suceder después de una o dos horas de operación. www.snapper.com...
Manejo Encendido del motor ADVERTENCIA: La cuchilla girará cuando el motor se ponga en funcionamiento. IMPORTANTE: Antes de arrancar el motor, accione varias veces la palanca de parada del motor. Verifique que el cable de parada del motor se mueve libremente. Nota: El diseño del motor no incluye un control del acelerador o un ajuste de la velocidad del motor.
Sustituir el filtro de combustible (si equipado) Limpiar el sistema de refrigeración de aire del motor * Lo que ocurra en primer lugar **En condiciones en las que exista polvo o suciedad en forma de partículas en suspensión, limpiar más a menudo. www.snapper.com...
Mantenimiento Mantenimiento del motor Arranque difícil. Ahumado del motor. Ensuciado de la bujía. Utilice la siguiente sección de Mantenimiento para mantener su Saturación de aceite o gasolina del filtro de aire. unidad en buenas condiciones de funcionamiento. Toda la información de mantenimiento para el motor está en el "Manual de Instrucciones del Motor".
IMPORTANTE: Antes de arrancar el motor, accione varias veces la palanca de parada del motor. Verifique que el cable de parada del motor se mueve libremente. Figura 17: Ajuste del cable del sistema de tracción de las ruedas www.snapper.com...
Mantenimiento Preparación del cortacésped para almacenamiento ADVERTENCIA: No extraiga gasolina mientras se está en el interior de una edificación, cerca de una llama, o mientras usted fuma. Los vapores de la gasolina pueden causar una explosión o un incendio. 1. Drene el tanque de combustible. 2.
2. Lleve el cortacésped a un Centro de Servicio Autorizado. El césped no se corta de manera uniforme. 1. Revise el ajuste de altura en cada rueda. El ajuste de altura debe ser el mismo para cada rueda. 2. Lleve el cortacésped a un Centro de Servicio Autorizado. www.snapper.com...
BRIGGS & STRATTON POWER PRODUCTS GROUP, L.L.C. PÓLIZA DE GARANTÍA DEL PROPIETARIO GARANTÍA LIMITADA Briggs & Stratton Power Products Group, LLC reparará y/o reemplazará, sin cargo, cualquier pieza del equipo que esté defectuosa en material o fabricación o ambos. Briggs & Stratton Corporation reparará y/o reemplazará, sin cargo, cualquier pieza del motor* de Briggs and Stratton (si está equipado con éste) que esté...
Page 44
CORTADORAS DE CÉSPED CON CONDUCTOR A PIE SNAPPER DE 55.9 cm (22") ® Especificaciones del Producto S22675 / SP22675 / NS22675 NSP22675 Tamaño de plataforma (pulg.) Altura de corte 1.25 - 4 1.25 - 4 (pulg.) Tipo de transmisión Velocidad/Relación única (Sólo las unidades autopropulsadas)
