Snapper 84871 Parts Manual

28" & 33" hi-vac series 23 rear engine rider
Hide thumbs
Table of Contents

Advertisement

Quick Links

Briggs & Stratton Yard Power Products Group
535 Macon Road
McDonough, GA, 30253 U.S.A.
800-935-2967
Parts Manual for
28" & 33" Hi-Vac
REAR ENGINE RIDER

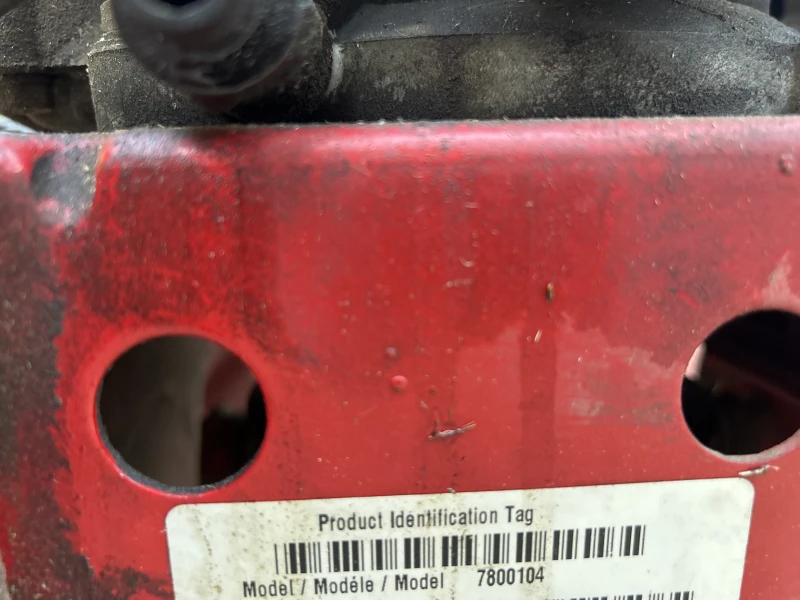

Model No.
84871
7800102
84872
84940
84874
84883
7084940
7800647
85622
7085622
7800104
7800649
84876
7085624
85624
84885
84878
7084879
7800106
84879
7084954
7800107
84954
7800254
7800652
84881
84884
SERIES 23
Description
281023BVE
281123BV
281123BV
281123BV
281123BVE
281123HVE
2811523BV
2811523BV
2812253BVE
2812523BVE
2812523BVE
2812523BVE
281323BVE
2813523BVE
2813523BVE
331323HVE
331523BVE
331523KVE
331523KVE
331523KVE
331723BVE
331723BVE
331723BVE
3317523BVE
3317523BVE
W280923BV
W281023BVE
Manual No.
7006279
Revision: B
12/6/2010

Advertisement

Table of Contents
loading

Related Manuals for Snapper 84871

Summary of Contents for Snapper 84871

  • Page 1 Briggs & Stratton Yard Power Products Group 535 Macon Road McDonough, GA, 30253 U.S.A. 800-935-2967 Parts Manual for 28" & 33" Hi-Vac REAR ENGINE RIDER SERIES 23 Model No. 84871 7800102 84872 84940 84874 84883 7084940 7800647 85622 7085622 7800104...

  • Page 3: Table Of Contents

    PAGE GROUP WHEELS, FRONT & REAR FRONT END, STEERING MAIN CASE & L.H. FENDER LEFT HAND FENDER & BEARING DIFFERENTIAL, R. H. FENDER YOKE LIFT COMPONENTS PRIMARY CHAIN CASE & SMOOTH CLUTCH GEAR SHIFTER ASSEMBLY FUEL TANK & SEAT ENGINE, MUFFLER & DRIVE DISC CUTTING DECKS &...

  • Page 4: Wheels, Front & Rear

    WHEELS, FRONT & REAR Manual No. 7006279 28" & 33" Hi-Vac SERIES 23...
  • Page 5 Item Part No Description 7058943 ASSEMBLY, Front Tire & Rim (Complete) (Includes Items 2, 3, 4, 5 & 6) 7073563 TIRE, 11 x 4.00-4 (Kenda) 7017146 RIM (For 4.10/3.50 x 4 Tire) 7011807 BALL BEARING, Flange (3/4” I.D.) 7012234 VALVE STEM, Snap In 7014669 * LUBE Fitting, Straight (for 3/16"...

  • Page 6: Front End, Steering

    FRONT END, STEERING Manual No. 7006279 28" & 33" Hi-Vac SERIES 23...
  • Page 7 Item Part No Description 7058030 ASSEMBLY, Steering Wheel (for 5/8” shaft) (Includes item 2) 7023781 LOGO, Steering Wheel 7013862 ROLL PIN, 1/4 x 1-1/2” 7023667 FOAM COVER, Steering Shaft 7023671 COVER, Steering Shaft 7090296 PIN, 3/16 x 1” Cotter 7090183 WASHER, .66 x 1.31 x .09 Flat 7046158 BUSHING, Nylon...

  • Page 8: Main Case & L.h. Fender

    MAIN CASE & L.H. FENDER Manual No. 7006279 28" & 33" Hi-Vac SERIES 23...
  • Page 9 Item Part No Description 7028990 COVER, Battery 7028989 COVER, Switch 7073268 COVER, Solenoid 7074210 BRACKET, Belt Adjuster 7091198 SCREW, 3/8-16 x 5/8” Hex Washer Self-Tap 7090358 SCREW, 5/16-24 x 2-1/2” Hex Head Cap, GR 5 7031100 TUBE CLAMP 7010969 NUT, 5/16-24 Flange Lock (Large) 7074650 BUSHING, Pivot (Was 7022509) 7053697...
  • Page 10 MAIN CASE & L.H. FENDER Manual No. 7006279 28" & 33" Hi-Vac SERIES 23...
  • Page 11 Item Part No Description 7037285 FENDER, Left Hand (1.628” I. D. Hole) Footnotes: 28" & 33" Hi-Vac SERIES 23 MAIN CASE & L.H. FENDER Manual No. 7006279...

  • Page 12: Left Hand Fender & Bearing

    LEFT HAND FENDER & BEARING Manual No. 7006279 28" & 33" Hi-Vac SERIES 23...
  • Page 13 Item Part No Description 7012332 BOOT CLAMP, 2” 7075115 BOOT, Rear Axle, Thick Flange 7011072 WASHER, Thrust 7011071 THRUST WASHER 7052827 ASSEMBLY, DX Bearing (incl. next 3 items shown below) 7074182 BEARING, DX 7074500 SEAL, Axle (Dust/Grease) 7075848 FITTING, Lube, 45 Degree, 3/16” w/Hex (long shank) (or 7013324) 7011070 TIE ROD (5/16-24 thread - both ends) 7037285...

  • Page 14: Differential, R. H. Fender

    DIFFERENTIAL, R. H. FENDER Manual No. 7006279 28" & 33" Hi-Vac SERIES 23...
  • Page 15 Item Part No Description 7091819 13 SCREW, 1/4-20 x 5/8” Hex Washer Head Self-Tap (Was 7090362) 7012296 BEARING, Axle (R. H. Fender) 7054372 BEARING-DX, Axle (R. H. Fender) (includes 1-1/8” I.D. (DX) bearing) 7010969 NUT, 5/16-24 Flange Lock (Large) 7031079 WASHER, Thrust 7038067 PLATE, Differential (Note: 4 holes offset - align properly to prevent binding.)

  • Page 16: Yoke Lift Components

    YOKE LIFT COMPONENTS Manual No. 7006279 28" & 33" Hi-Vac SERIES 23...
  • Page 17 Item Part No Description 7013885 SPRING, Clutch & Brake 7014664 BOLT, 5/16-18 Shoulder 7091198 SCREW, 3/8-16 x 5/8” Hex Washer Self-Tap 7090187 WASHER, 5/16” Split Lock 7091511 NUT, 5/16-18 Hex, GR 5 or B (Was 7090196) 7014663 SLIDE HALF 7047190 BRACKET, Slide 7090122 WASHER, 3/8”...

  • Page 18: Primary Chain Case & Smooth Clutch

    PRIMARY CHAIN CASE & SMOOTH CLUTCH Manual No. 7006279 28" & 33" Hi-Vac SERIES 23...
  • Page 19 Item Part No Description 7052683 ASSEMBLY, Primary Chain Case (Includes the following 16 items) 7041136 WELDMENT, Primary Chain Case Half, Right Hand 7028761 GASKET, Primary Chain Case 7011121 WASHER, 5/8” Belleville 7010756 BEARING, .625 x 1.37 x .435 7018963 WELDMENT, Sprocket & Shaft 7010614 KEY, #5 Woodruff 7039778...

  • Page 20: Gear Shifter Assembly

    GEAR SHIFTER ASSEMBLY Manual No. 7006279 28" & 33" Hi-Vac SERIES 23...
  • Page 21 Item Part No Description 7023656 GRIP, Shift Handle 7059212 WELDMENT, Shift Handle 7023914 PIN, 1/4 x 1-3/4” Tapered Clevis 7091597 PIN, 3/32 x 3/4” Cotter (Was 7090037) 7031036 WASHER, Thrust 7019245 BUSHING, 3/4 x 1.62 Flange (Nylon) 7091298 NUT, 5/16-18 Hex Nyloc 7090361 SCREW, 5/16-18 x 5/8”...

  • Page 22: Fuel Tank & Seat

    FUEL TANK & SEAT Manual No. 7006279 28" & 33" Hi-Vac SERIES 23...
  • Page 23 Item Part No Description 7075071 SEAT, Operator (11.58” tall) (shown) (Michigan V-2400 Series) (used on 12HP & Higher Models) 7075376 SEAT, Operator (9.30” tall) (Michigan V-2300 Series) (used on 7084840 (2811523BV) 7051905 ASSEMBLY, Fuel Tank (Includes item 3) (used on 9, 10 & 11.5HP Models) 7052435 ASSEMBLY, Fuel Tank with Gauge (Includes item 3A) (used on 12, 12.5, 15, 17 &...

  • Page 24: Engine, Muffler & Drive Disc

    ENGINE, MUFFLER & DRIVE DISC Manual No. 7006279 28" & 33" Hi-Vac SERIES 23...
  • Page 25 Item Part No Description 28B702-1154-E1 1 * ENGINE, 9HP Briggs (Mod 28B702-1154-E1) (recoil start) 214707-0113-E1 * ENGINE, 10HP Briggs (Mod 214707-0113-E1) (electric start) 21A902-0127-E1 1 * ENGINE, 11HP Briggs (Mod 21A902-0127-E1) (recoil start) 21A907-0124-E1 1 * ENGINE, 11HP Briggs (Mod 21A907-0124-E1) (electric start) GXV340-K2DET3 1 * ENGINE, 11HP Honda (Mod GXV340, Type K2DET3) (electric start) 217802-0113-E1...

  • Page 26: Cutting Decks & Deflector (28" & 33" Hi-Vac)

    CUTTING DECKS & DEFLECTOR (28" & 33" Hi-Vac) Manual No. 7006279 28" & 33" Hi-Vac SERIES 23...
  • Page 27 Item Part No Description 7073434 COVER, Spindle 7091015 SCREW, 1/4-20 x 3-1/2” Hex Head w/Free Spinning Washer 7091016 SCREW, 1/4-20 x 5/8” Hex Head w/Free Spinning Washer 7061970 DECK, 28” Replacement (Painted deck w/decals & wheel bracket fasteners) 7061972 DECK, 33” Replacement (Painted deck with decals) 7090731 BOLT, 5/16-18 x 1/2”...

  • Page 28: Belts, Brakes & Interlock

    BELTS, BRAKES & INTERLOCK Manual No. 7006279 28" & 33" Hi-Vac SERIES 23...
  • Page 29 Item Part No Description 7043844 * BELT, Drive (73.75” AA Section) (used on 33” Deck Models) 7022252 * BELT, Drive (72.75” AA Section) (used on 25” & 28” Decks) 7074467 NUT, 3/4-16 Hex Jam, GR 8 7032027 WASHER, 49/64” I.D. x 1-1/2” O.D. Flat 7018781 PULLEY, Deck 7015290...

  • Page 30: Rails, Lift Arms & Cam Lift

    RAILS, LIFT ARMS & CAM LIFT Manual No. 7006279 28" & 33" Hi-Vac SERIES 23...
  • Page 31 Item Part No Description 7091503 HAIR PIN, 3/32 x 1-1/2” 7028200 SWIVEL, Adjustable 7028728 ADJUSTER, Chain (5/16-18 thread) 7091297 NUT, 5/16-24 Hex (Was 7090223) 7090854 NUT, 3/8-24 Hex Nyloc 7090122 WASHER, 3/8” Flat SAE 7034213 PIVOT, Leveling 7059324 WELDMENT, Rear Lift Arm 7090483 SCREW, 3/8-24 x 1-3/4”...

  • Page 32: Blade Stop Pedals

    BLADE STOP PEDALS Manual No. 7006279 28" & 33" Hi-Vac SERIES 23...

  • Page 33: Blade Stop Pedals

    Item Part No Description 7073267 FOOT PEDAL, Blade Stop Control 7074649 SPRING, Latching (.072 dia.) (replaces 7035669 (.062 dia.) 7015448 SPRING, Pedal 7015495 SHOULDER BOLT, 3/8-24 w/Nylon Patch, GR 5 7015446 SHOULDER BOLT, 3/8-24 x 9/16” 7032030 WASHER, Flat 13/32” ID x 1.25” x 1/8” Thick ZP (Was 7012063) 7091630 NUT, 3/8-24 Hex, GR B (Was 7090155) 7091587...

  • Page 34: Spindle

    SPINDLE Manual No. 7006279 28" & 33" Hi-Vac SERIES 23...
  • Page 35 Item Part No Description 7054531 ASSEMBLY, Spindle Housing (Incl. items 2 thru 9A & 10 thru 13) (used on 33” deck) 7058049 ASSEMBLY, Spindle Housing (Incl. items 2 thru 8 & 9B thru 11) (used on 28” decks) 7012491 RING, 1.85” Internal Retaining 7013313 BEARING, Spindle 7050696...

  • Page 36: Decals

    DECALS Manual No. 7006279 28" & 33" Hi-Vac SERIES 23...
  • Page 37 Item Part No Description 7071916 DECAL, SNAPPER 7023982 DECAL, OHV (33” Kohler Engine Models) 7023980 DECAL, Back-Up Recoil (33” Kohler Engine Models) 7046218 DECAL, Height of Cut 7026831 DECAL, Danger (CPSC) 7046720 DECAL, Chute/Deflector Warning 7023996 DECAL, 28 Inch (Hi-Vac)

  • Page 38: Electrical Systems (Briggs Magneto Ground)

    ELECTRICAL SYSTEMS (Briggs Magneto Ground) Manual No. 7006279 28" & 33" Hi-Vac SERIES 23...
  • Page 39 Item Part No Description View shows engine magneto ground connection on throttle plate Footnotes: 28" & 33" Hi-Vac SERIES 23 ELECTRICAL SYSTEMS (Briggs Magneto Ground) Manual No. 7006279...

  • Page 40: Electrical Systems (For 9, 11 & 11.5Hp Briggs Recoil)

    ELECTRICAL SYSTEMS (For 9, 11 & 11.5HP Briggs Recoil) Manual No. 7006279 28" & 33" Hi-Vac SERIES 23...
  • Page 41 Item Part No Description 7028606 INTERLOCK MODULE, Briggs 7028386 HARNESS (Deck Interlock Wiring) 7018524 SWITCH, Deck Interlock (NO) 7090880 WASHER, 5/8” Internal Tooth Lock 7015438 NUT, 5/8-32 Hex 7011138 IGNITION KEY, Pair 7073714 HARNESS, Ground (Recoil Start) 7012080 CABLE TIE, 7” 7029211 SWITCH, Seat, Quick Mount (NC) (used on 11 &...

  • Page 42: Electrical Systems (For 10, 11, 12, 12.5 & 13Hp Briggs)

    ELECTRICAL SYSTEMS (For 10, 11, 12, 12.5 & 13HP Briggs) Manual No. 7006279 28" & 33" Hi-Vac SERIES 23...
  • Page 43 Item Part No Description 7060753 KIT, Battery, 12V, U-1-7RS, 220CCA Dry Charge Snapper No Spill 7075671 SOLENOID, Super-Trombetta (Was 7018817) 7022788 HARNESS, Starter Wiring (Briggs Engines) 7073715 HARNESS, Ignition Wiring (Briggs Engines) 7016168 HOLDER, Fuse (Includes Fuse) 7016169 FUSE, 10 Amp (Not shown)

  • Page 44: Electrical Systems (For 13.5, 15, 16, 17 & 17.5Hp Briggs)

    ELECTRICAL SYSTEMS (For 13.5, 15, 16, 17 & 17.5HP Briggs) Manual No. 7006279 28" & 33" Hi-Vac SERIES 23...
  • Page 45 Item Part No Description 7060753 KIT, Battery, 12V, U-1-7RS, 220CCA Dry Charge Snapper No Spill 7075671 SOLENOID, Super-Trombetta 7022788 HARNESS, Starter Wiring (Briggs) 7074406 HARNESS, Ignition Wiring (Briggs) 7016168 HOLDER, Fuse (Includes Fuse) 7016169 FUSE, 10 Amp 7028606 INTERLOCK MODULE, Briggs & Kohler...

  • Page 46: Electrical Systems (For 11 & 13Hp Honda)

    ELECTRICAL SYSTEMS (For 11 & 13HP Honda) Manual No. 7006279 28" & 33" Hi-Vac SERIES 23...
  • Page 47 Item Part No Description 7060753 KIT, 12V Dry Charge Battery SOLENOID (not shown, part of engine) (No Snapper part number. Purchase from engine manufacturer.) 7054589 HARNESS, Starter Wiring (Honda) 7074962 HARNESS, Ignition Wiring 7014451 CABLE TIE, 3.19” long 7028606 INTERLOCK MODULE, Briggs & Kohler...

  • Page 48: Electrical Systems (For 15Hp Kohler)

    ELECTRICAL SYSTEMS (For 15HP Kohler) Manual No. 7006279 28" & 33" Hi-Vac SERIES 23...
  • Page 49 Item Part No Description 7060753 KIT, 12 Volt Dry Charge Battery 7075671 SOLENOID, Super-Trombetta (Was 7018817) 7019321 HARNESS, Starter Wiring (Kohler Engines) 7074405 HARNESS, Ignition Wiring (15HP Kohler Engines) 7016168 HOLDER, Fuse (Includes Fuse) 7016169 FUSE, 10 Amp 7028606 INTERLOCK MODULE, Briggs & Kohler 7028386 HARNESS (Deck Interlock Wiring) 7018524...

  • Page 50: Electrical Systems (Kohler Magneto Ground)

    ELECTRICAL SYSTEMS (Kohler Magneto Ground) Manual No. 7006279 28" & 33" Hi-Vac SERIES 23...
  • Page 51 Item Part No Description View shows engine magneto ground area Footnotes: 28" & 33" Hi-Vac SERIES 23 ELECTRICAL SYSTEMS (Kohler Magneto Ground) Manual No. 7006279...

  • Page 52: Wiring Schematic (9, 11 & 11.5Hp Recoil Start Briggs)

    WIRING SCHEMATIC (9, 11 & 11.5HP Recoil Start Briggs) Manual No. 7006279 28" & 33" Hi-Vac SERIES 23...
  • Page 53 Item Part No Description Wiring Schematic incl. harness #'s 7028386, 7073714 & 7028607 Footnotes: 28" & 33" Hi-Vac SERIES 23 WIRING SCHEMATIC (9, 11 & 11.5HP Recoil Start Briggs) Manual No. 7006279...

  • Page 54: Wiring Schematic (10, 11, 12, 12.5 & 13 Hp Briggs)

    WIRING SCHEMATIC (10, 11, 12, 12.5 & 13 HP Briggs) Manual No. 7006279 28" & 33" Hi-Vac SERIES 23...
  • Page 55 Item Part No Description Wiring Schematic incl. harness #'s 7022788, 7073715 & 7028607 Footnotes: 28" & 33" Hi-Vac SERIES 23 WIRING SCHEMATIC (10, 11, 12, 12.5 & 13 HP Briggs) Manual No. 7006279...

  • Page 56: Wiring Schematic (13.5, 15, 16, 17 & 17.5Hp Briggs Engines)

    WIRING SCHEMATIC (13.5, 15, 16, 17 & 17.5HP Briggs Engines) Manual No. 7006279 28" & 33" Hi-Vac SERIES 23...
  • Page 57 Item Part No Description Wiring Schematic incl. harness #'s 7022788, 7074406, 7028675 & 7015430 Footnotes: 28" & 33" Hi-Vac SERIES 23 WIRING SCHEMATIC (13.5, 15, 16, 17 & 17.5HP Briggs Engines) Manual No. 7006279...

  • Page 58: Wiring Schematic (11 & 13 Hp Honda Engines)

    WIRING SCHEMATIC (11 & 13 HP Honda Engines) Manual No. 7006279 28" & 33" Hi-Vac SERIES 23...
  • Page 59 Item Part No Description Wiring Schematic incl. harness #'s 7054589, 7074962, 7028386 & 7074963 Footnotes: 28" & 33" Hi-Vac SERIES 23 WIRING SCHEMATIC (11 & 13 HP Honda Engines) Manual No. 7006279...

  • Page 60: Wiring Schematic (14 & 15 Hp Kohler Engines)

    WIRING SCHEMATIC (14 & 15 HP Kohler Engines) Manual No. 7006279 28" & 33" Hi-Vac SERIES 23...
  • Page 61 Item Part No Description Wiring Schematic incl. harness #'s 7019321, 7074405, 7028386 & 7028678 Footnotes: 28" & 33" Hi-Vac SERIES 23 WIRING SCHEMATIC (14 & 15 HP Kohler Engines) Manual No. 7006279...

  • Page 62: Hardware Bags

    HARDWARE BAGS Manual No. 7006279 28" & 33" Hi-Vac SERIES 23...
  • Page 63 Item Part No Description 7063039 HARDWARE BAG (Incl. the 17 items below) (for manual start models) 7011024 PLUG, 1/2” Cup Insert 7013321 BUSHING, Tie Rod 7013849 SPACER, .33 x .63 x .156 7013862 ROLL PIN, 1/4 x 1-1/2” 7023667 FOAM COVER, Steering Shaft 7023671 COVER, Steering Shaft 7090372...
  • Page 64 HARDWARE BAGS Manual No. 7006279 28" & 33" Hi-Vac SERIES 23...
  • Page 65 Item Part No Description 7022325 DECAL, Cut Height 7090001 BOLT, 5/16-18 x 3/4” Short Neck Carriage, GR 5 7090188 WASHER, 5/16” Flat 7090392 SCREW, 1/2-20 x 1” Hex Head Cap, GR 5 7091537 WING NUT, 5/16-18 (Was 7090492) 7090509 WASHER, 1/2” Internal Tooth Lock 7090559 NUT, 1/2-20 Hex Jam Footnotes:...

  • Page 66: Accessories & Attachments

    ACCESSORIES & ATTACHMENTS Manual No. 7006279 28" & 33" Hi-Vac SERIES 23...
  • Page 67 Item Part No Description 7060325 KIT, Drive Disc Puller (used on All RER Aluminum Drive Discs) 7060697 KIT, Dump Cart 1692125 KIT, Dump Cart (10 Cu. Ft.) 7061400 KIT, Gage Wheel (28” & 33”) 7060794 KIT, Gage Wheel (41” & 42”) 7060941 KIT, Single Bag Catcher (25”) 7060942...
  • Page 72 OBLIGATION TO MAKE SUCH CHANGES ON PRODUCTS Briggs & Stratton Yard Power Products Group 535 Macon Road McDonough, GA, 30253 U.S.A. 800-935-2967 www.snapper.com Copyright © 2010 Briggs & Stratton Corporation Milwaukee, WI USA. All Rights Reserved Manual No. 7006279 Revision: B 12/6/2010...
