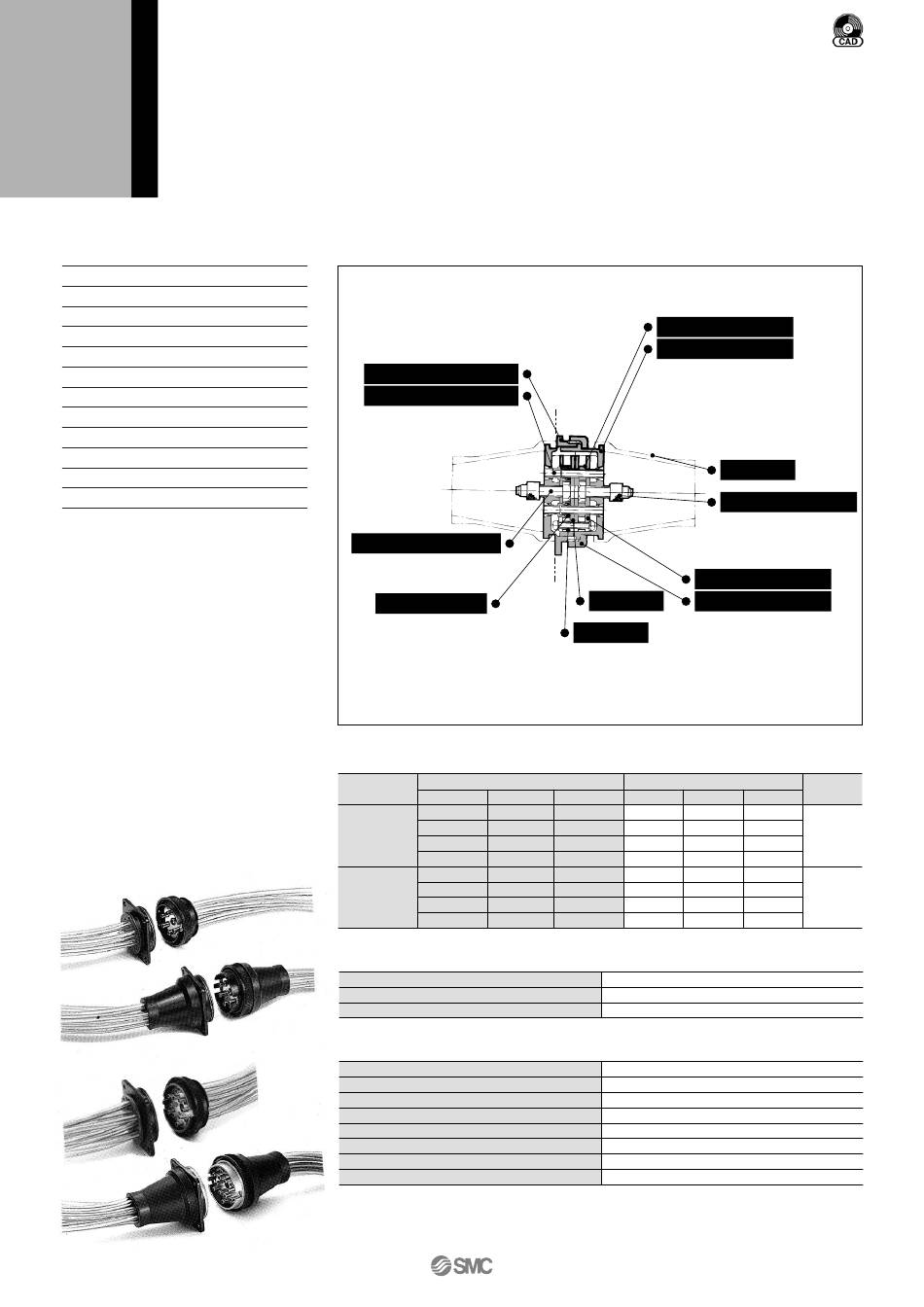

Multi-connector
Series
No. of Connecting Tubes: 6, 12
The use of the multi-
con nector enables panel
mount connections with
other apparatus and can
provide the reliability of
one-touch installation and
removal of multi-tubes
(nylon, polyurethane).
As a result, separate
transportation of panel,
machinery, and backup
units is made easy.
One-touch installation and
removal
Employs the unique built-in keying
mechanism which provides one-touch
installation and removal capability even
in hard to see locations. In addition, it
prevents installation mistakes when re-
connecting.
Installation processes are
reduced considerably
As compared with the use of many bulk-
head unions, this installation is very
easy and installation time is reduced
considerably.
Reliable tube retaining force
This construction mechanism enables
clamping and unclamping of every tube
in use by one operation and can provide
a reliable tube retaining force.
No. of connecting tubes
2 types—6 tubes & 12 tubes.
DM6
DM12
15-2-100
DM
Socket case
Socket
Easy insertion of tube by the
floating mechanism to adjust
to the case hole.
Clamp bolt
Possible to clamp with one
bolt at once.
U-shape seal
Tight seal.
PAT.
Model
Model
No. of
connecting tubes
Multi-connector
Plug side
DM6-04N
DM6P-04N
DM6-04NU
DM6P-04NU
6
DM6-06N
DM6P-06N
DM6-06NU
DM6P-06NU
DM12-04N
DM12P-04N
DM12-04NU
DM12P-04NU
12
DM12-06N
DM12P-06N
DM12-06NU
DM12P-06NU
Specifications
Fluid
Maximum operating pressure
Ambient and fluid temperature
Principal Parts Material
Socket case, Plug case, Clamp ring
Plate
Holder
Socket, Plug, Stopper
U packing
Cover
Cross-recessed head machine screw, Clamp bolt
Spacer
Plug
Plug case
Hold securely by inserting
both the tube and barb.
Possible to connect in the
required position by the
convex and concave for
engagement.
Cover
Stopper (with expander)
Possible to insert smoothly
by expansion of tube with
expander.
Holder
Plate
Clamp ring
Connect within one turn
Spacer
from the socket side to the
plug side.
Applicable tubing
Socket side
Nylon
Soft nylon
DM6S-04N
T0425
—
DM6S-04NU
T0403
TS0425
DM6S-06N
T0604
—
DM6S-06NU
T0645
TS0604
DM12S-04N
T0425
—
DM12S-04NU
T0403
TS0425
DM12S-06N
T0604
—
DM12S-06NU
T0645
TS0604
Air
1.0 MPa
–5 to 60°C (No freezing)
ADC12 black anodized
SPCC, Chromated
SPCC, Zinc chromated
C3604BD
NBR
CR
SWRM Zinc chromated
SPC Zinc chromated
Accessory
(Option)
Polyurethane
—
TU0425
DM-C-6
—
TU0604
—
TU0425
DM-C-12
—
TU0604
