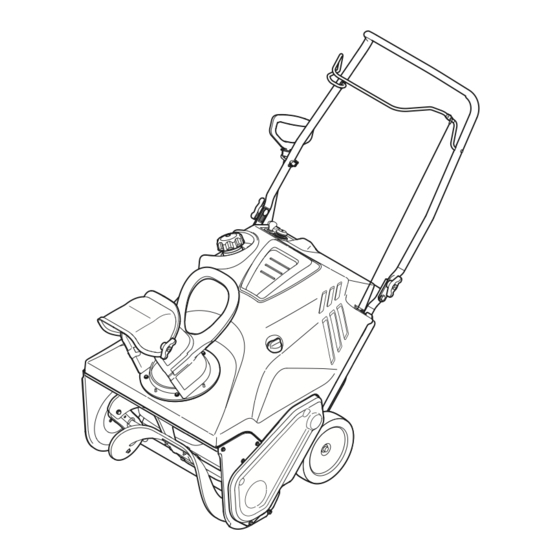

- Page 1 Model 221 HP shown Single Stage Snow Thrower Model 221 HP & 221 LHP CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019 Printed In USA Form No. 769-06975 (June 07, 2011)
-
Page 2: Table Of Contents
To The Owner Thank You Thank you for purchasing a Cub Cadet Snow Thrower. It was Components listed and/or illustrated in this manual may not be carefully engineered to provide excellent performance when applicable to all models. We reserve the right to change product properly operated and maintained. - Page 3 This page left intentionally blank.
-
Page 4: Shroud, Chute & Handle (Model 221 Hp)
Shroud, Chute & Handle (Model 221 HP) - Page 5 Shroud, Chute & Handle (Model 221 HP) Ref. Part Number Description 736-04576 Flat Washer, .28 x 1.5 x .075 747-05327B Auger Bail 710-0451 Carriage Bolt, 5/16-18 x .750 710-05108 Hex Washer Screw, 1/4 x .750 712-04063 Flange Lock Nut, 5/16-18...
-
Page 6: Shroud, Chute & Handle
Shroud, Chute & Handle (Model 221 LHP) - Page 7 Shroud, Chute & Handle (Model 221 LHP) Ref. Ref. Part Number Description Part Number Description 717-04940 Spur Gear, 35T 710-05163 Carriage Bolt, 5/16-18 x 2.5 917-04844B Bevel Gear, 95T 712-04063 Flange Lock Nut, 5/16-18 720-04122 Wing Knob, 5/16-18 731-07651 Chute Control Panel 731-04427A Upper Chute 731-07654A...
-
Page 8: Drive System & Auger Assembly
Drive System & Auger Assembly 35 25... - Page 9 Hex Washer Screw, 1/4-20 x .750 738-04456 Shoulder Bolt, 5/16-24 x .496 x 2.18 952Z265-JU† Replacement Engine 741-04517 Ball Bearing, .500 x 40mm x 12mm 952Z370-JU†† Replacement Engine 946-04701 Clutch Cable 747-05360A Drive Cable Wire Support † Model 221 HP †† Model 221 LHP...
-
Page 10: Labels (Model 221 Hp)
Labels (Model 221 HP) 777I22139 777S32236 777S33118 777D14848 777X45317 777S33731 777D14849 777S34027 STARTING STOP INSTRUCTIONS: 1.) INSERT IGNITION KEY AND SNAP IN PLACE. 1.KEEP AWAY FROM ROTATING 2.) MOVE CHOKE CONTROL TO THE AUGER CONTACT WITH AUGER “CHOKE” POSITION. PUSH PRIMER Do not use electric start in the rain CAN AMPUTATE HANDS AND FEET. -
Page 11: Labels (Model 221 Lhp)
Labels (Model 221 LHP) 777S32236 777I22139 777S33118 777D14847 777X45317 777S33731 777D14849 777S34027 STARTING STOP INSTRUCTIONS: 1.) INSERT IGNITION KEY AND SNAP IN PLACE. 1.KEEP AWAY FROM ROTATING 2.) MOVE CHOKE CONTROL TO THE AUGER CONTACT WITH AUGER “CHOKE” POSITION. PUSH PRIMER Do not use electric start in the rain CAN AMPUTATE HANDS AND FEET. -
Page 12: Engine Model 370-Ju-11
370-JU-11 Muffler Ref. Part Number Description Ref. Part Number Description 710-04920 Bolt M6×28 710-04911 Stud M8×36 951-12027 Muffler Stud Assembly 712-04212 Nut M6 951-12100 Governor Spring 951-11285 Exhaust Pipe Gasket 951-10664 Throttle Linkage Spring 712-04214 Nut, M8 951-10665 Throttle Linkage 951-12010 Muffler Assembly 710-05002... - Page 13 370-JU-11 Carburetor Ref. Ref. Part Number Description Part Number Description Lock Washer 710-05101 Stud M6×110 951-11567 Carburetor Insulator Gasket Idle Jet Assembly Gasket, Throttle Plate 951-11568 Carburetor Insulator Idle Speed Adjusting Screw 951-11569A Carburetor Gasket Mixture Screw 951-10639A Primer Assembly 951-12019 Primer Hose 951-11824...
- Page 14 370-JU-11 Crankcase Optional...
- Page 15 370-JU-11 Crankcase Ref. Ref. Part Number Description Part Number Description 951-11577 O-Ring 15.8×2.5 951-12111 Piston Ring Set 951-11368 Oil Seal, 25×41.25×6 951-11632 Piston Pin Snap Ring 951-11381 Oil Fill Tube O-Ring 951-12007 Piston 951-11913 Oil Fill Tube Assembly 951-11633 Piston Pin 710-04915 Bolt M6×12 951-11904...
- Page 16 370-JU-11 Starter & Blower Housing Ref. Part Number Description Ref. Part Number Description 736-04455 Gasket 6 Washer 710-04915 Bolt M6×12 951-12013 Ignition Coil Assembly 710-04974 Bolt M6×10 951-12015 Recoil Starter 710-04919 Bolt M6×25 731-05696 Recoil Starter Handle 951-12050 Coil Assy/Stator 951-10645A Startup Electromotor 951-12051...
- Page 17 370-JU-11 Label Map 777I23026 For Household and Commercial Use. Pour utilisations résidentielle et commerciale. For Household and Commercial Use. Pour utilisations résidentielle et commerciale. WARNING - Risk of electric shock. Connect to a properly grounded WARNING - Risk of electric shock. Connect to a properly grounded outlet only.
- Page 18 370-JU-11 Cylinder Head...
- Page 19 370-JU-11 Cylinder Head Ref. Ref. Part Number Description Part Number Description 951-10292 Spark Plug/F6Rtc 710-04968 Bolt M6×16 951-11572 Gasket, Cylinder Head 951-11054 Valve Cover 951-10648 Push Rod Kit 726-04101 Breather Hose Clamp 951-11899 Tappet 731-07059 Breather Hose 951-11565 Valve Cover Gasket 715-04090 Dowel Pin 10×16 951-10647A...
-
Page 20: Engine Model 265-Ju-11
265-JU-11 Muffler Ref. Part Number Description Ref. Part Number Description 951-12100 Governor Spring 710-04911 Muffler Stud M8×36 951-10657 Muffler Stud Assembly 951-10664 Throttle Linkage Spring 951-10665 Throttle Linkage 951-11285 Muffler Gasket 951-11106 Governor Arm 712-04214 Nut, M8 712-04212 Nut M6 951-12010 Muffler Assembly 710-05002... - Page 21 265-JU-11 Starter & Flywheel Ref. Ref. Part Number Description Part Number Description 710-04974 Bolt M6×10 710-04915 Bolt M6×12 951-12013 Ignition Coil Assembly 951-12015 Recoil Starter 951-10645A Startup Electromotor 710-04919 Bolt M6×25 715-04088 Dowel Pin 8×8 951-12416 Flywheel 710-05182 Bolt M6×32 951-10909 Fan, Cooling 951-10911...
- Page 22 265-JU-11 Crankcase...
- Page 23 265-JU-11 Crankcase Ref. Ref. Part Number Description Part Number Description 951-11368 Oil Seal, 25×Φ41.25×6 951-11688 Piston Ring Set 951-11381 Oil Fill Tube O-Ring 951-11632 Piston Pin Snap Ring 951-11913 Oil Fill Tube Assembly 951-11900 Piston 951-11904 Dipstick O-Ring 951-11901 Piston Pin 710-04915 Bolt M6×12 951-12482...
- Page 24 265-JU-11 Cylinder Head 43 43...
- Page 25 265-JU-11 Cylinder Head Ref. Ref. Part Number Description Part Number Description 951-10292 Spark Plug/F6Rtc 710-04968 Bolt M6×16 951-11898 Gasket, Cylinder Head 951-11054 Valve Cover 951-10648 Push Rod Kit 726-04101 Breather Hose Clamp 951-11899 Tappet 731-07059 Breather Hose 951-11565 Valve Cover Gasket 715-04090 Dowel Pin 10×16 951-10647A...
- Page 26 265-JU-11 Carburetor...
- Page 27 265-JU-11 Carburetor Ref. Ref. Part Number Description Part Number Description Idle Jet Assembly 710-05101 Stud M6×110 Gasket, Throttle Plate 951-11567 Carburetor Insulator Gasket Idle Speed Adjusting Screw 951-11568 Carburetor Insulator Mixture Screw 951-11569A Carburetor Gasket 951-10639A Primer Assembly 951-12019 Primer Hose 951-11906 Hose Clamp 951-12011...
- Page 28 To order replacement parts, call a Customer Support Representative at (800) 965-4CUB. Locate your nearest Cub Cadet dealer at (877) 282-8684 or visit www.cubcadet.com to find the nearest Cub Cadet dealer in your area. CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019...
