INSTALLATION AND
MAINTENANCE INSTRUCTIONS
IDP-Control Supervised
Control Module
Specifications
Normal Operating Voltage:
Maximum Current Draw:
Average Operating Current: 390µA (LED flashing)
Regulated External
Supply Voltage:
Maximum:
Drain on External Supply:
Temperature Range:
Humidity:
Dimensions:
Accessories:
Before Installing
This information is included as a quick reference installa-
tion guide. Refer to the control panel installation manual
for detailed system information. If the modules will be
installed in an existing operational system, inform the
operator and local authority that the system will be tem-
porarily out of service. Disconnect power to the control
panel before installing the modules.
NOTICE: This manual should be left with the owner/
user of this equipment.
General Description
IDP-Control Supervised Control Modules are intended
for use in intelligent, two-wire systems, where the in-
dividual address of each module is selected using the
built-in rotary switches. This module is used to switch an
external power supply to notification appliances. It also
supervises the wiring to the connected loads and reports
their status to the panel as NORMAL, OPEN, or SHORT
CIRCUIT. The IDP-Control has two pairs of output ter-
mination points available for fault-tolerant wiring and a
panel-controlled LED indicator.
K200-09-00
15 to 32 VDC
6.5 mA (LED on)
(between Terminals T3 and T4)
80 Volts (RMS or DC)
2 mA Maximum (using
internal EOL relay)
32°F to 120°F (0°C to 49°C)
10% to 93% non-condensing
4 1 / ˝ H x 4" W x 1 1 / ˝ D
2 4
(Mounts to a 4˝ square by
2 1 / ˝ deep box.)
8
SMB500 Electrical Box
Compatibility Requirements
To ensure proper operation, this module shall be con-
nected to a compatible Silent Knight system control pan-
els only (list available from Silent Knight).
Mounting
The IDP-Control mounts directly to 4 square electri-
cal boxes (see Figure 2A). The box must have a mini-
mum depth of 2 1 / ˝. Surface mounted electrical boxes
8
(SMB500) are available.
Wiring
NOTE: All wiring must conform to applicable local
codes, ordinances, and regulations. When using control
modules in nonpower limited applications, UL require-
ments for the separation of power-limited and nonpower-
limited terminals and wiring must be met. The barrier
must be inserted into a 4˝ × 4˝ × 2
the control module must be placed into the barrier and
attached to the junction box (Figure 2A). The power-lim-
ited wiring must be placed into the isolated quadrant of
the module barrier (Figure 2B).

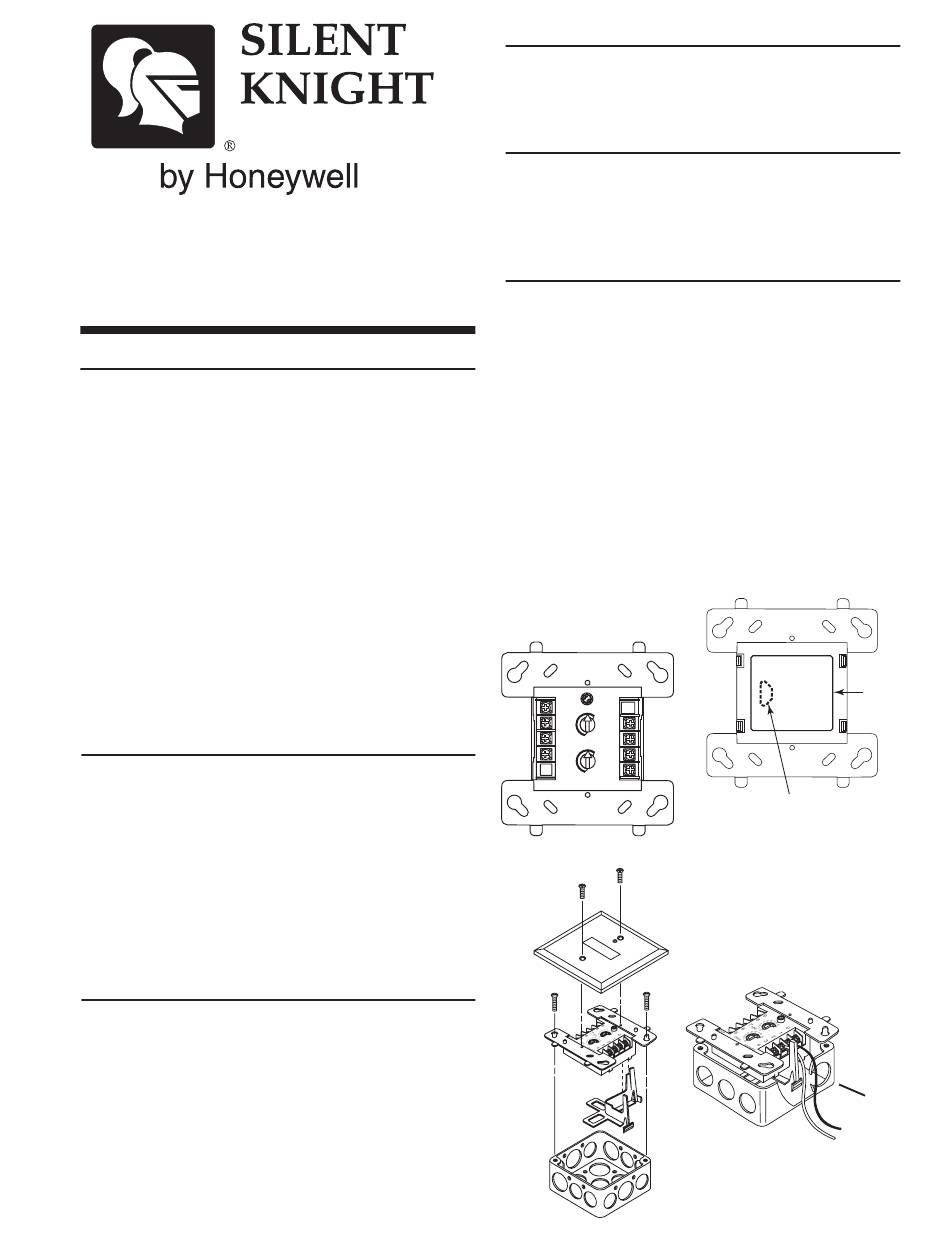

Figure 1A. Controls
and indicators:
9 0
7 8 9
6
5
8 4 1
3
2
7 2
1 0
TENS
6 7 8 9
5
6 3
4
3
5 4
2
1
0
ONES
ADDRESS
LOOP
Figure 2A. Module mounting with barrier:
C0217-01
1
1 / ˝ junction box, and
8
Figure 1B. Jumper location:
BACK OF
MODULE
J1 UNDER LABEL
C0218-01
C0458-00
Figure 2B:
ISOLATED
QUADRANT
C0219-01
I56-2725-003
