1. What You'll Need To Install The ESD-6200:
Installing and Using Your
NOTE: Detailed instructions on opposite side
DETECTION SYSTEM

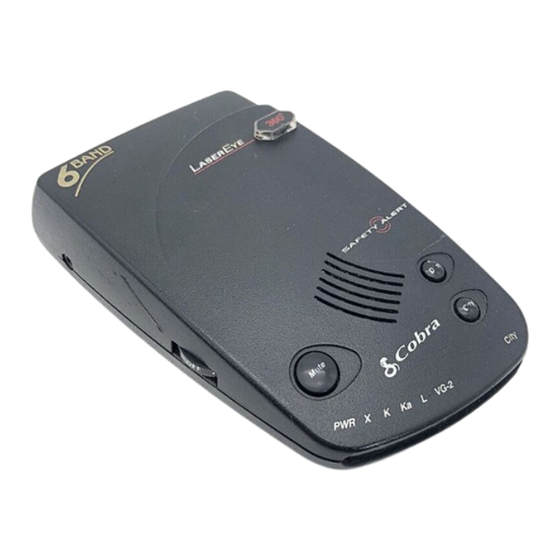

Model ESD -6200
™
2. Installing The ESD-6200:
ON WINDSHIELD
U.S. Patent No. 5,497,148
ATTACH CUPS TO BRACKET
ATTACH BRACKET TO WINDSHIELD
ATTACH DETECTOR TO BRACKET
Cobra Electronics Corporation
6500 West Cortland Street,
Chicago, Illinois 60707
BEND BRACKET FOR CORRECT DETECTION ANGLE (IF NEEDED)
PLUG POWER CORD INTO DETECTOR
PLUG POWER CORD INTO CIGARETTE LIGHTER
PRINTED IN JAPAN ©1997 COBRAELECTRONICS CORPORATION 480-262-P-001
ESD-6200 Windshield Bracket Hook and Loop Material
(For on-dash mounting)
NEED HELP?
ON DASH
PEEL PROTECTIVE PAPER OFF ONE SIDE OF HOOK AND LOOP
PLACE ON DASH
PEEL TOP PAPER OFF
PLACE DETECTOR ON HOOK AND LOOP PAD
POWER CORD INTO DETECTOR
PLUG POWER CORD INTO CIGARETTE LIGHTER
3. Operating The ESD-6200:
A. Turn On and Adjust Volume
LEDs are briefly
illuminated at
Power ON
B. Set Display Brightness
BRIGHT
DIM
DIMMER
Power Cord
DARK
C. Set City/Highway Mode
CITY: For urban
driving-reduces
number of X-Band
false audible alerts.
HIGHWAY: For all
other driving.
D. Muting
Press to reduce
volume of audible
alert in progress.
E. LaserEye
360° Laser
Detection
F. Indicators and Visual Alerts
Power VG-2
Illuminates when On
X Band Radar City/Highway Mode
Blinks faster as source approaches Turn on sequentially as source approaches
Road Hazard
K Band Radar
Blinks faster as source approaches Turn on sequentially as source approaches
Train
Ka Band Radar
Left two Signal Meter lights alternate with right two Signal Meter lights.
Blinks faster as source approaches Turn on sequentially as source approaches
Emergency Vehicle
Laser
Blinks at a Lights Up
steady rate
Blinks at a Lights Up
steady rate
Safety Alert ® Warnings
Illuminates when in CITY mode
All Signal Meter lights flash simultaneously.
This indicates a stationary sourc e .
(Similar to a railroad crossing signal).
Signal Meter scans quickly from RIGHT to LEFT.
This indicates a moving sourc e .
