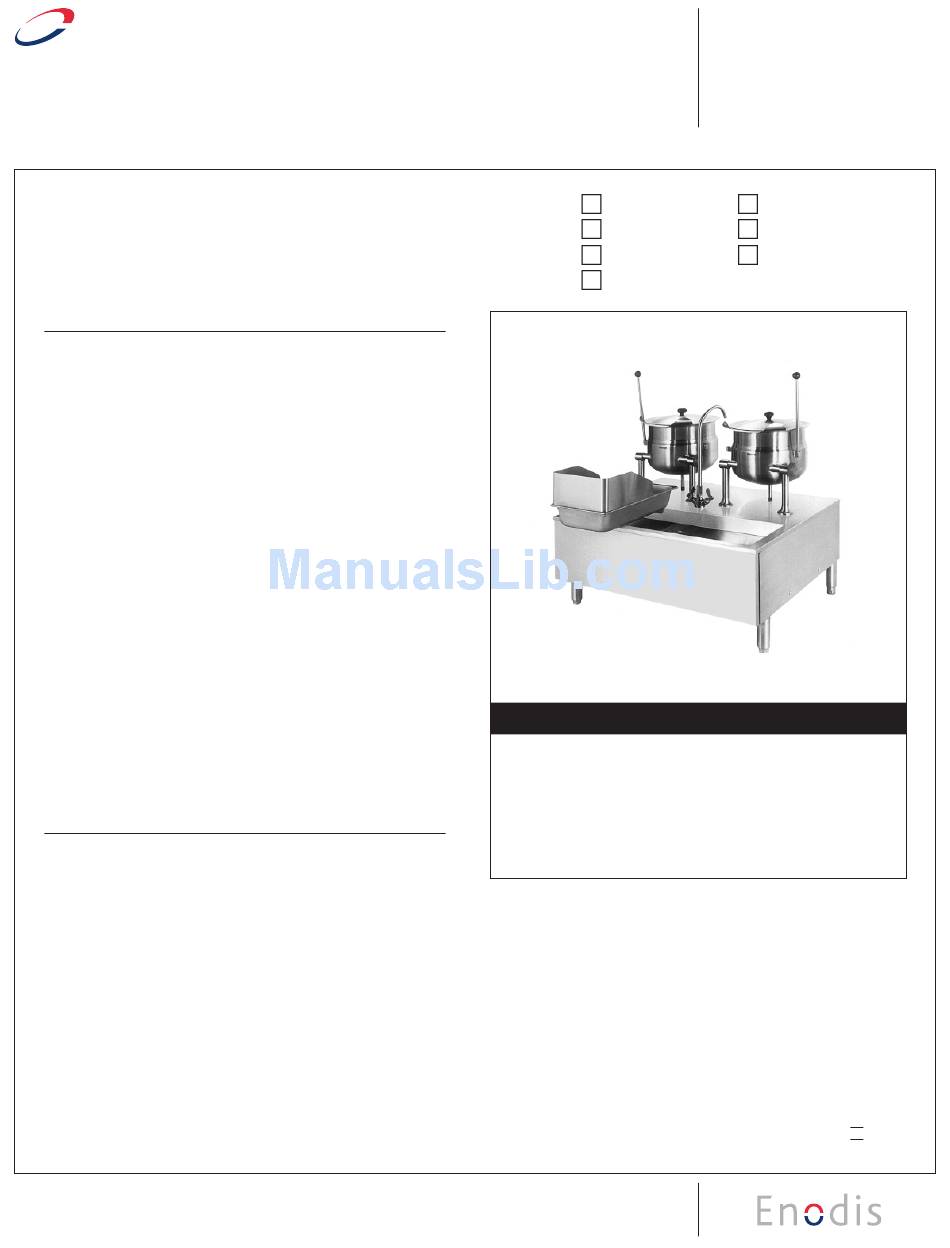

Cleveland
DIRECT STEAM KETTLES
STAND MOUNTED, DIRECT STEAM
6, 12 or 20 GAL. TILTING, 2/3 STEAM JACKETED (1 or 2 EACH)
18" HIGH STAND with DRAIN
450, 650, 1050,1200 or 1600mm WIDTHS
Cleveland Standard Features
I Type 304 Stainlesss Steel construction, with #4 finish on
Kettle
I Factory Assembled Kettle/Stand combinations with available
kettle capacities to suit most needs
I Steam Control Kit: includes: Needle Type Steam Control
Valve, Steam Trap, Condensate Strainer, Check Valve,
Nipples and Fittings, factory assembled and mounted on
kettles(s)
I Kettles are Mounted on Stainless Steel Stand of Modular
Cabinetized Design
I Hot and Cold Water Faucet with Swing Spout
I Table Top has Full Width Drain Trough equipped with
standing 1.50" diameter male Drain Connection
I Sliding drain Catch Pan with Splash Shield, easy to
position for use
I Kettles are 2/3 Steam Jacketed and include Lift-Off Covers
I 50 psi Steam Jacket Rating
I 50 psi Chrome Plated Saftey Valve
I Manual Tilting, Balanced Design
I Typical approvals include NSF and ASME
Options & Accessories
Ë Type 316 Stainless Steel Kettle Interior for high acid food
products (316)
Ë Cooking Basket (BS)
Ë Food Strainer (FS)
Ë Steam Pressure Reducing Valve, where supply exceeds 45
psi (PRV)
Ë Steam Supply Moisture Separator/Trap (MS)
Ë Single Pantry Faucet (SPK)
Ë Wall Meter, wall mount (GM For MLMF)
Ë Water Cooling, wall mount
Ë Back Wall or Back Splash (BW-32 or BS-4)
Ë Self Locking Hand Tilt Mechanism (HTK - 12 gallons only)
1333 East 179 St.,
Cleveland, Ohio, U.S.A. 44110
Tel: 1-216-481-4900
Web Site: www.ClevelandRange.com
Fax: 1-216-481-3782
Email: Steam@ClevelandRange.com
MODELS:

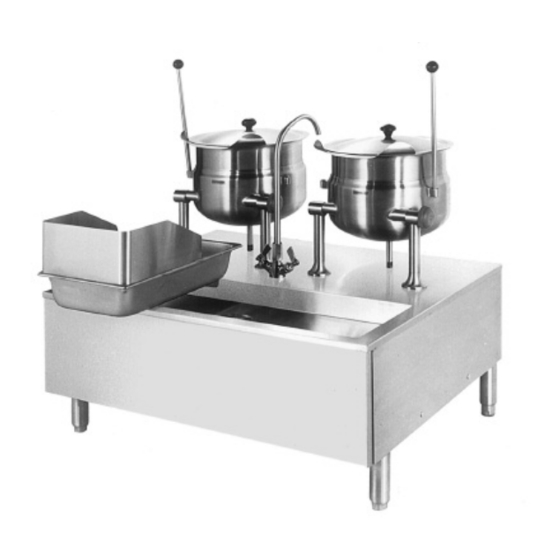

SD-450-K6
SD-650-K12
SD-1050-K20
SD-1050-K66
Short Form Specifications
Shall be CLEVELAND, Kettle(s) with Stand, Model SD - _____ - K _____ , full
width Drain Trough with1 1/2" male Drain Connection, Sliding Catch Pan
and 2/3 Steam Jacketed Kettle(s) _____ ea. _____ Gallon (and _____ ea. _____
Gallon) Steam Jacket Ratings to be 50 psi; Kettle and Legs to be Type 304
Stainless Steel. To operate, connect directly to a steam source supplying
from 5 to 45 psi steam. Steam Condensate Trap and Strainer, Factory
Assembled and Installed; includes: Hot and Cold Water Faucet with Swing
Spout and Lift-Off Kettle Covers.
Project ________________________________
Item __________________________________
Quantity _______________________________
FCSI Section ____________________________
Approval _______________________________
Date __________________________________
SD-1200-K612
SD-1600-K1212
SD-1800-K2020
