Summary of Contents for Emerson numatics E22

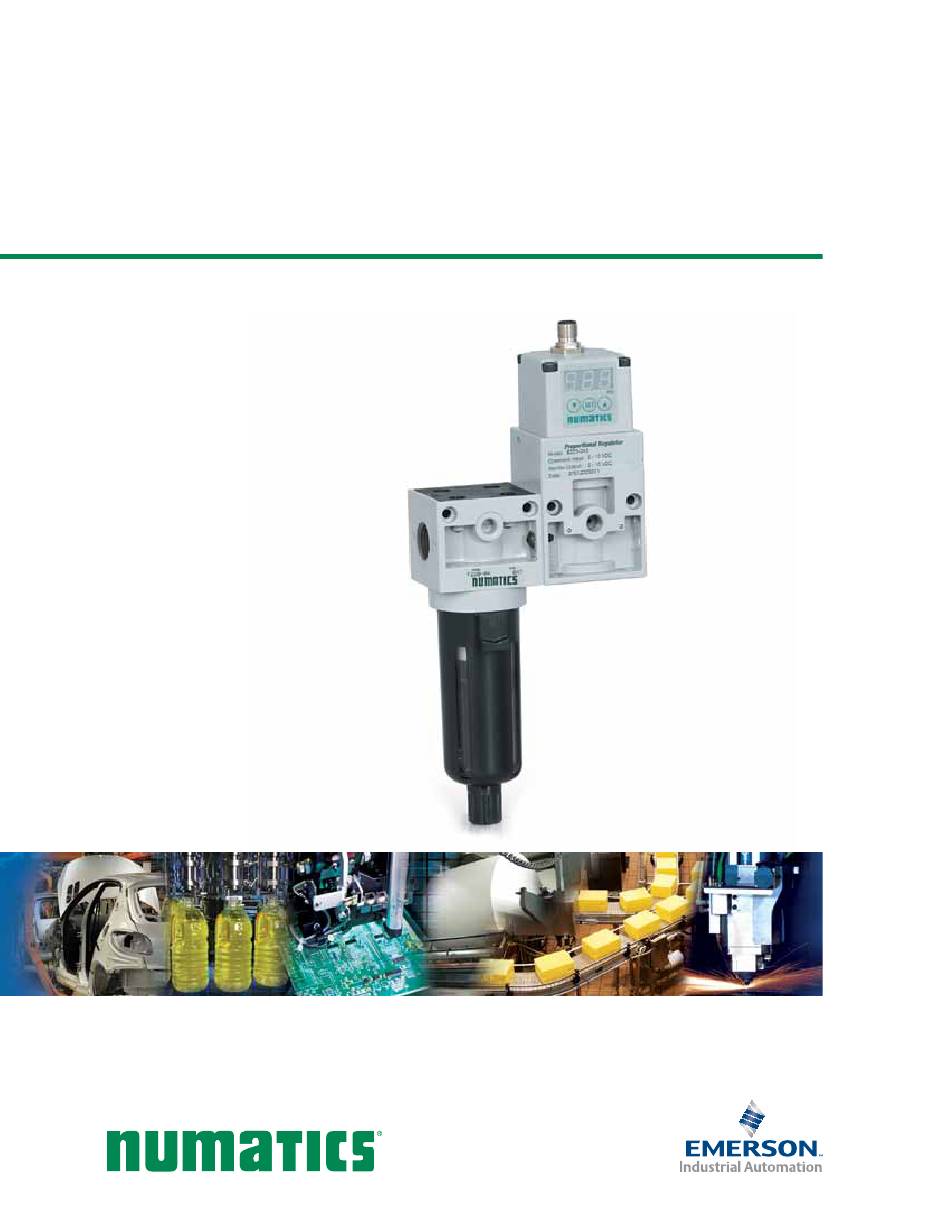

- Page 1 Operation Manual Installation Manual...
-
Page 2: Pin Configuration
Operation 1.58 (40) Manual Pin Configuration Specifications Set Pressure Pin Configuration Minimum Supply Pressure + 15 PSI (1 BAR) Command Signal Standard Pressure: 150 PSI (10 BAR) Maximum Supply Pressure Analog Digital High Pressure: 190 PSI (13 BAR) Pin 1 +24VDC Standard Pressure: 0-100 PSI (0-6.9 BAR) Regulating Pressure Ranges... - Page 3 Operation Manual Analog Advanced Settings Initial Settings Mode Mode E22 Series E22 Ser ies (Hold SET for 10 sec) (Hold SET for 3 sec) Units: Operation Mode: P= PSI S= Standard B= BAR F= Fast A = Kpa A= Accurate F = Kgf/cm²...
-
Page 4: Locked Mode
Operation Manual Locked Mode Notes: Prevents any unintentional changes in the 1. This product is not intended to be used as a safety device to protect life or prevent injury. settings 2. Misapplication of this product could result in injury or Press and hold the up and down arrow buttons E22 Series equipment damage. - Page 5 World Class Supplier of Pneumatic Components World Headquarters USA Numatics, Incorporated Canada Numatics, Ltd Mexico Numatics de Mexico S.A. de C.V. Brazil Ascoval Ind.e Comercio Ltda 46280 Dylan Drive P: 519-758-2700 P: 52-222-284-6176 P: (55) 11-4208-1700 Novi, Michigan 48377 F: 519-758-5540 F: 52-222-284-6179 F: (55) 11-4195-3970 P: 248-596-3200...
