Lowrance EP-80R TH Installation And Configuration Instructions

Electronic thru-hull temp sensor
Hide thumbs

Advertisement

Quick Links

Download this manual
Electronic Thru-Hull Temp Sensor
Installation and Configuration Instructions
This document shows how to install an EP-80R TH thru-hull temp sen-
sor and how to connect it to a NMEA 2000
instructions on how to configure your temp sensor with Lowrance digi-
tal gauges (LMF-200 & LMF-400) and display units.
NMEA 2000 is the communication bus standard developed by the Na-
tional Marine Electronics Association (NMEA) for use in boats.
Lowrance has introduced a line of products that can communicate over
a NMEA 2000 network (LowranceNet).
All Lowrance NMEA 2000 capable devices are either NMEA 2000 certi-
fied or certification is pending.
CAUTION:
Installing LowranceNET NMEA 2000 devices is significantly
different from installing earlier Lowrance components without
NMEA 2000 features. You should read all of the installation in-
structions before proceeding. Decide where you want to install
all components before drilling any holes in your vessel.
Some sonar or GPS units may require a software upgrade to display
NMEA 2000 data correctly. For free software upgrades or additional
information on the LowranceNet NMEA 2000
our web site, www.lowrance.com.
Red NMEA 2000
connector
Busse-Yachtshop.de
EP-80R TH

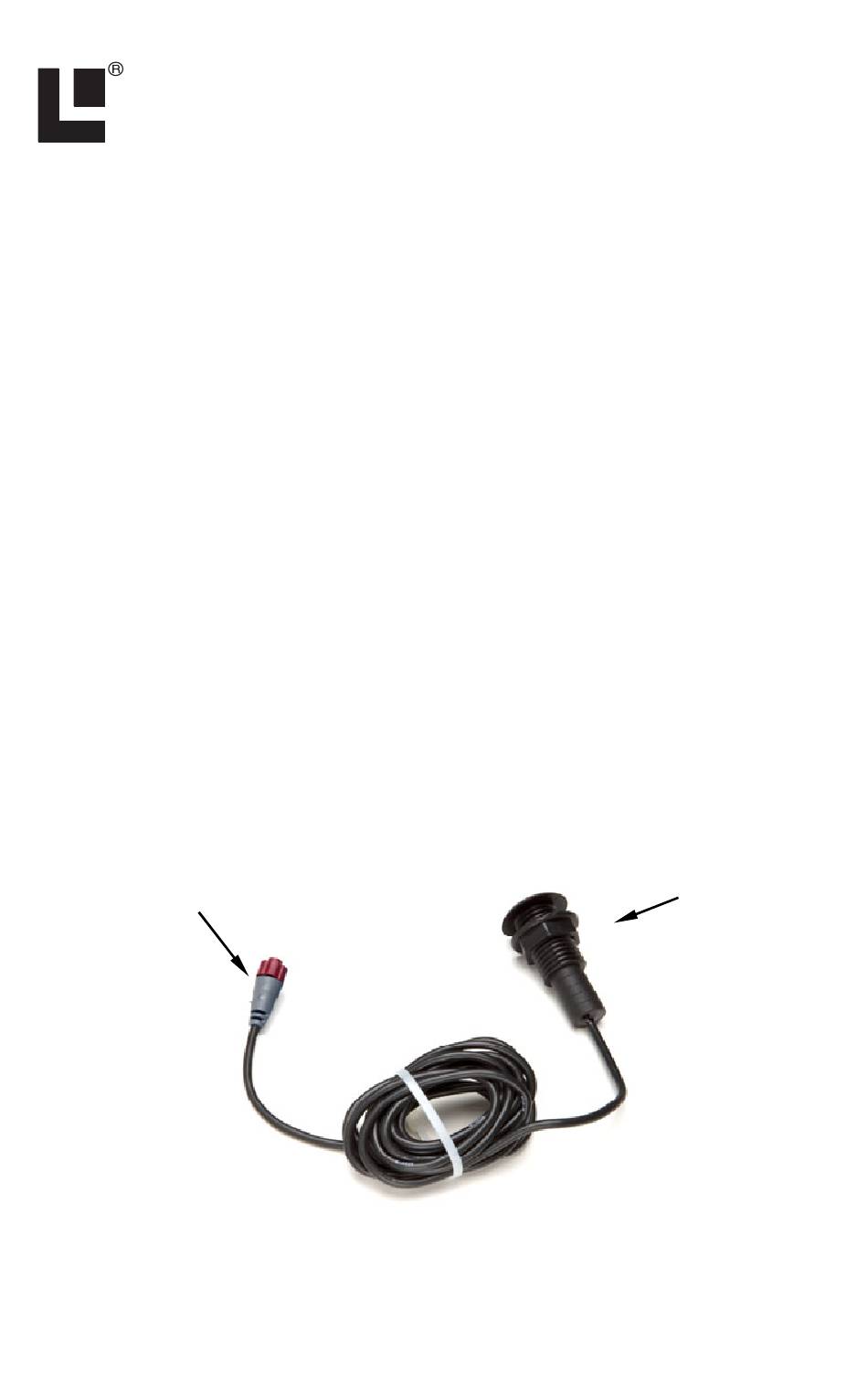

The EP-80R TH temperature sensor.
®
network. It also provides
®
1
info@busse-yachtshop.de
Pub. 988-0154-442
network system, visit
Thru-hull
temp sensor
module

Advertisement

loading

Related Manuals for Lowrance EP-80R TH

Summary of Contents for Lowrance EP-80R TH

  • Page 1 Pub. 988-0154-442 EP-80R TH Electronic Thru-Hull Temp Sensor Installation and Configuration Instructions This document shows how to install an EP-80R TH thru-hull temp sen- ® sor and how to connect it to a NMEA 2000 network. It also provides instructions on how to configure your temp sensor with Lowrance digi- tal gauges (LMF-200 &...
  • Page 2 The EP-80R TH consists of the temp sensor module, a red cable connec- tor and the smart module, which converts analog temperature data to NMEA 2000 data format. The cable length measures 18 inches (46 cm) from the connector to the smart module and 10 feet (3 meters) from the smart module to the temp module.

  • Page 3: Installation

    Suggested location To install the EP-80R TH, use a hole saw to cut a 1-1/16" (27 mm) hole in the transom. The hole should be below the waterline. 2. After you've determined the proper location on the transom for the EP-80R TH, drill a 1/8"...
  • Page 4 Do not use a wrench to tighten the nut! Remove ex- cess sealant from the inside of the hull before it dries. 8. Route the EP-80R TH cable to the T on the network backbone where you intend to attach it, and plug it in.
  • Page 5 Inner hull Cross section of transom showing EP-80R TH installed Connecting to a NMEA 2000 Network A NMEA 2000 network is a communications link between two or more devices that transfer NMEA 2000 information. LowranceNET is the NMEA 2000 networking system developed by Lowrance Electronics.
  • Page 6 Network Backbone and Network Nodes A network bus backbone consists of network cabling, terminators and T connectors. Network nodes are made by fitting T-shaped connectors into the backbone (using the sockets on the sides) and attaching any network device to the bottom of the T. Staying with the previous phone wiring example, T connectors on the backbone are the equivalent of phone jacks spread throughout a house.

  • Page 7: Additional Network Information

    T connectors may be purchased from LEI (ordering informa- tion appears on the back page of this booklet). If you are adding a Lowrance or LEI NMEA 2000 sensor, it will come with a T connector. Adding a Network Node You can add a node to any existing connection, anywhere along the net- work backbone.
  • Page 8 Notes Busse-Yachtshop.de info@busse-yachtshop.de...

  • Page 9: Boat Setup

    LMF-200: EP-80R TH Temp Configuration This section will show you how to use the LMF-200 Multi-function gauge to configure your EP-80R TH Temperature Sensor. NOTE: You will notice the LMF-200 does not have an Exit key. Menus will time out after a preset amount of time (3, 5, 10 or 15 seconds). The default setting is 5 seconds.
  • Page 10 . The Setup screen will appear with Boat Setup high- MENU lighted. EP-80R TH Configuration The EP-80R TH temperature sensor has three configuration options: Inside, Outside and Water. An unconfigured temperature sensor will appear on the Bus Devices list as UnCfg Temp. To configure a temp sensor: 1.
  • Page 11 To unconfigure a temp sensor: 1. Press , use the keys to select MENU DOWN YSTEM ETUP press MENU 2. Highlight and press , which will open the Bus Devices B. D MENU EVICES list. 3. Select a temp sensor from the Bus Devices list and press .
  • Page 12 MENU UTSIDE vices list, where the temp will now be shown as Out T. (Outside Temp). Displaying EP-80R TH Temp Sensor Data You can display your temperature sensor data on the Gauge, Single Digital and Dual Digital pages. Page Screen Rotation The Page Screen Rotation consists of multiple pages that have been set for display.

  • Page 13: Customizing Pages

    Customizing Pages The customizing pages feature allows you to choose what data will be displayed and how it will be displayed on select pages. You can custom- ize the Gauge, Single Digital and Dual Digital pages with temp sensor data. To customize Gauge page: 1.
  • Page 14 Notes Busse-Yachtshop.de info@busse-yachtshop.de...
  • Page 15 LMF-400: EP-80R TH Temp Configuration This section will show you how to use the LMF-400 Multi-function gauge to configure your EP-80R TH Temperature Sensor. LMF-400 Multi-function Digital gauge. Boat Setup If this is the first time you have turned on your LMF-400, you will have to complete Boat Setup before you will be able to configure your temp sensor.
  • Page 16 . The Setup Menu will appear with Boat Setup high- MENU lighted. EP-80R TH Configuration The EP-80R TH Temperature sensor has three configuration options: Inside, Outisde and Water. An unconfigured temperature sensor will appear on the bus devices list as UnCfg Temp. To configure a temp sensor: 1.
  • Page 17 3. Choose the desired temp sensor and press . Select ENTER NCONFIGURE from the temp configuration menu and press . The following ENTER message will appear: Press Menu to UnConfig Device Name. 4. Press to unconfigure the sensor and be directed to the Bus ENTER Devices list where the temp now will be listed as UnCfg Temp.
  • Page 18 If your temp sensor is not updated on the Bus Devices list, refresh the list by closing it and then access it again. Displaying EP-80R TH Temp Sensor data: You can display temp sensor data on the Single Analog, Dual Analog, Quad Analog, Single Digital, Dual Digital and Quad Digital pages.
  • Page 19 To add a page to the display: 1. Press , use the keys to select and press MENU DOWN AGES . A menu will pop up with four options: Add Page, Remove Page, Page Scrolling and Pop-Ups Setup. Select and press ENTER 3.
  • Page 20 5. Highlight and press . The Select Temp menu will ENTER EMPERATURE appear with three temp types: Water Temp, Outside Temp and Inside Temp. 6. Select the desired temp type and press . You will be directed to ENTER the Position menu. Repeat steps 4 and 5 to customize the other posi- tion, or press twice to return to the main display.
  • Page 21 4. Select and press . The Select Temp menu will ap- ENTER EMPERATURE pear with three temp types: Water Temp, Outside Temp and Inside Temp. 5. Select the desired temp type and press . You will be directed to ENTER the Position menu.
  • Page 22 Notes Busse-Yachtshop.de info@busse-yachtshop.de...

  • Page 23: Bus Setup

    Temp Configuration All NMEA 2000 capable Lowrance sonar and sonar/GPS combo display units can be used to configure your EP-80R TH thru-hull temp sensor on a NMEA 2000 network. The LMS-525cDF is one of many Lowrance display units that may be used to configure an EP-80R TH thru-hull temp sensor.
  • Page 24 Bus Setup highlighted on the NMEA 2000 menu (left). Bus Setup se- lected on Networking menu (right). EP-80R TH Temp Sensor Configuration The Temp Type function will be used when configuring your temp sen- sor through a display unit. You will select a configuration name for the temp from the Temp Type menu.
  • Page 25 4. Press . Use the arrow keys to input the desired name for the ENTER temp sensor and press . Press repeatedly to return to the ENTER EXIT main display. To reset device name to default setting: 1. Press twice, select and press MENU NMEA 2000...
  • Page 26 Unconfiguring a Temp Sensor You could unconfigure a temp sensor by changing its temp type to un- known or you can use the Restore Defaults command, which will reset the temp type and device name to default settings. To restore default settings 1.
  • Page 27 Displaying EP-80R TH Temp Sensor Information The Overlay Data function will be used to show temp sensor data on your unit's main display. NOTE: Make sure your temp sensor has been configured before attempting to display temperature data on your display unit.
  • Page 28 Notes Busse-Yachtshop.de info@busse-yachtshop.de...
  • Page 29 Notes Busse-Yachtshop.de info@busse-yachtshop.de...
  • Page 30 Notes Busse-Yachtshop.de info@busse-yachtshop.de...
  • Page 31 LOWRANCE ELECTRONICS FULL ONE-YEAR WARRANTY "We," "our," or "us" refers to LOWRANCE ELECTRONICS, INC., the manufacturer of this product. "You" or "your" refers to the first person who purchases this product as a consumer item for personal, family or household use.

  • Page 32: Accessory Ordering Information

    For Eagle: 8 a.m. to 5 p.m. Central Standard Time, M-F Lowrance Electronics and Eagle Electronics may find it necessary to change or end their shipping policies, regulations and special offers at any time. They reserve the right to do so without notice.
