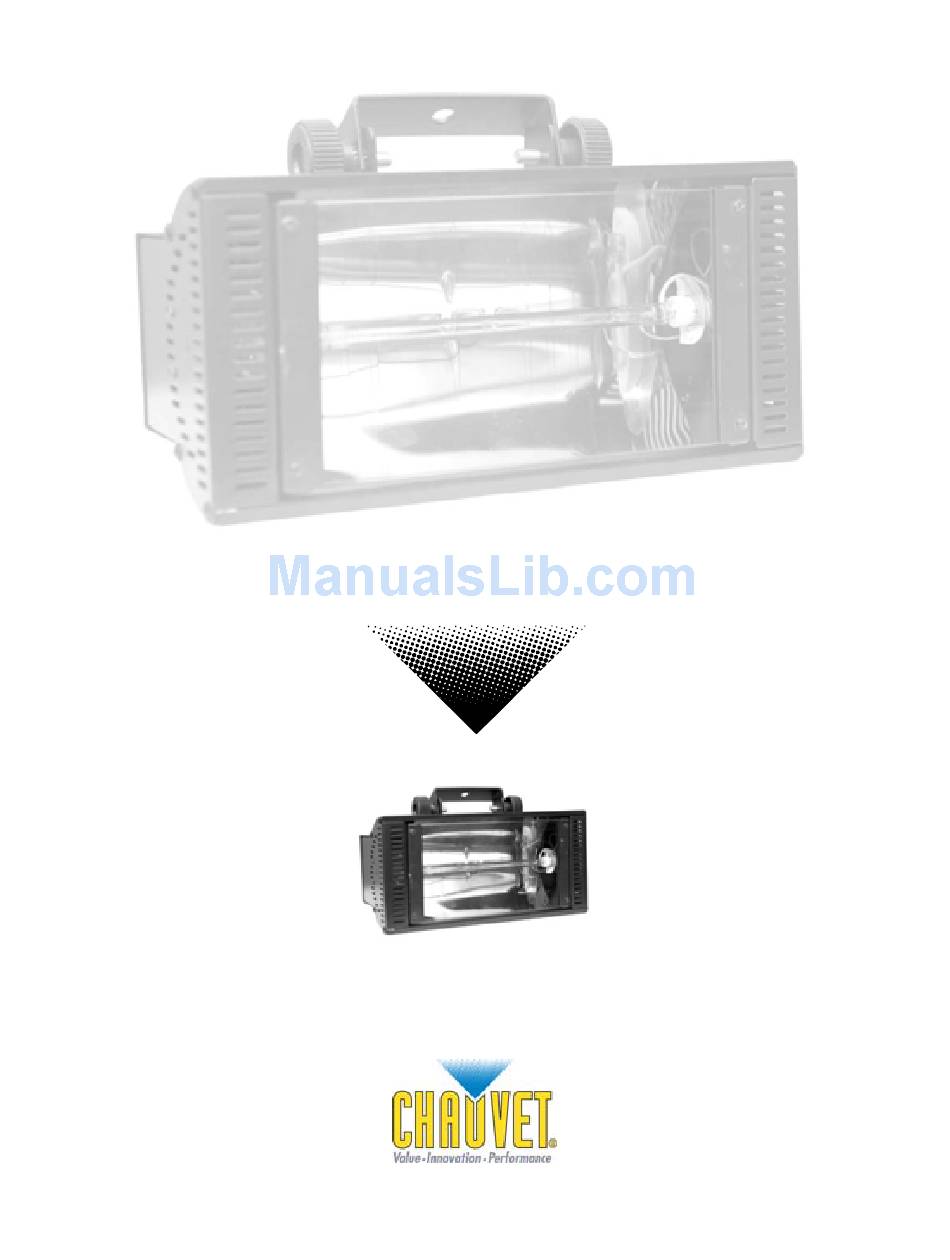

- Page 1 Mega Strobe™ III ST-750 USER MANUAL CHAUVET, 3000 N 29 Ct, Hollywood, FL 33020 U.S.A (800) 762-1084 – (954) 929-1115 FAX (954) 929-5560 www.chauvetlighting.com 2007-03-20 15:10...
-
Page 2: Table Of Contents
UPPORT ©CHAUVET, 2006, All Rights Reserved Information and specifications in this User Manual are subject to change without notice. CHAUVET assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual. ST-750 User Manual 2007-03-20... -
Page 3: Before You Begin
World Wide Web ST-750 User Manual Save the carton and all packing If you should require sending any items back to CHAUVET, call CHAUVET for a (RMA) Return Merchandise Authorization number. The factory will not allow any shipments without an RMA. -
Page 4: Important Safety Information
If you have any questions about how to operate the fixture safely, please contact CHAUVET. P r o t e c t i o n a g a i n s t E l e c t r i c S h o c k •... -
Page 5: Introduction
• Variable dimmer control knob • Linkable via mono cable (EST-10MONO) • Chase / Sound-activation via optional CH-751 & SC-1000M • DMX via optional DMX-752 converter • Bulb: CH-750B Product Overview ST-750 User Manual Hanging Yoke Speed Rotary knob SPEED 2007-03-20 15:10... -
Page 6: Setup
You must supply your own clamp and make sure the clamp is capable of supporting the weight of this fixture. You can order C-clamps from any CHAUVET dealer or distributor. Block access below the work area and use suitable and stable platform when installing or servicing fixture. -
Page 7: Lamp Installation
Repeat procedure to replace and reconnect wire leads to the appropriate terminals on the PCB. Make sure wires are tightly screwed onto the PCB. ST-750 User Manual Unscrew and release lamp wires from the main PCB. -
Page 8: Operating Instructions
The Unison strobe mode will allow you to link additional units in a daisy chain fashion. Simply connect the first fixture to the strobe controller, and connect each fixture in a daisy-chain fashion using a ¼” MONO phone cable. Strobe Controller SPEED ST-750 User Manual SPEED SPEED 2007-03-20 15:10... -
Page 9: Appendix
Package must be clearly labeled with a Return Merchandise Authorization Number (RA #). Products returned without an RA # will be refused. Call CHAUVET and request RA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return. -
Page 10: Technical Specifications
CONTROL & PROGRAMMING Remote Controller Input ... ¼” MONO phone plug Output... ¼” MONO phone plug ORDERING INFORMATION Mega Strobe III™ ... ST-750 Replacement bulb ... CH-750B 1 channel strobe controller ... CH-751 4 channel strobe controller ... SC-1000MONO Technical Support Address: Service Dept.
