Page 1: User Manual

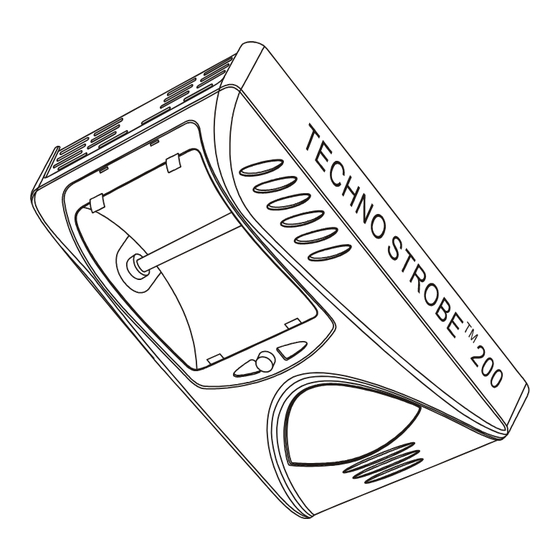

ST-200 Techno Strobe™ 200 USER MANUAL Chauvet, 3000 N 29 Ct, Hollywood, FL 33020 U.S.A (800) 762-1084 – (954) 929-1115 FAX (954) 929-5560 www.chauvetlighting.com... -
Page 2: Table Of Contents
ABLE OF ONTENT BEFORE YOU BEGIN... 3 ... 3 HAT IS INCLUDED ... 3 NPACKING NSTRUCTIONS ... 3 AFETY NSTRUCTIONS INTRODUCTION ... 4 ... 4 EATURES ... 4 RODUCT VERVIEW SETUP ... 5 ... 5 Lamp installation ... 5 ... 6 OUNTING Orientation ... -
Page 3: Before You Begin
Avoid direct eye exposure to lamp. Caution! There are no user serviceable parts inside the unit. Do not any repairs yourself. In the unlikely event your unit may require service, please contact CHAUVET. ST-200 User Manual usage and maintenance? Revision: 2004-11-02/11:23... -
Page 4: Introduction
NTRODUCTION Features • audio sensitivity adjustment • manual strobe speed control • manual strobe intensity control • 1 year warranty Product Overview Fuse compartment Audio sensitivity adjustment Strobe speed adjustment ST-200 User Manual Holder Connect to other ST-200 strobes for unison operation ¼”... -
Page 5: Setup
3. You may need to clip the tie-wraps that restrain the loose wires to the screw posts on the PCB in order to free the lamp. Slide lamp socket out of the thin metal plate one end at a time. Replace strobe with new lamp and re-fasten wires to the terminals. (CHAUVET lamp model # BL-200ST) ST-200 Lamp Installation... -
Page 6: Mounting
Mounting ORIENTATION This fixture may be mounted in any position provided there is adequate room for ventilation. It is also possible to stand this fixture using the removable feet provided. R IG G IN G It is important never to obstruct the fan or vents pathway. Mount the fixture using, a suitable “C”... -
Page 7: Operating Instructions
PERATING NSTRUCTIONS Operating Modes • A stand-alone mode will listen to sound and strobe to the beat. • Master/Slave output provides for unison triggering of chained strobes. STAND ALONE The Stand Alone mode is activated automatically when the fixture is absent of a CH-751 or a SC- 1000M controller. -
Page 8: Appendix
Package must be clearly labeled with a Return Merchandise Authorization Number (RA #). Products returned without an RA # will be refused. Call CHAUVET and request RA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return. -
Page 9: General Troubleshooting
Remote does not work Make sure connector is firmly connected to device Stand alone mode All Chauvet lighting fixtures featuring stand-alone functions do not require additional settings, simply power the fixture and it will automatically enter into this mode ST-200 User Manual... -
Page 10: Technical Specifications
Technical Specifications WEIGHT & DIMENSIONS Length... 330 mm (13 in) Width ... 205 mm (8.1 in) Height ...100 mm (4 in) Weight ... 2.24 Kg (4.93 lbs) POWER Operating Range ...115V 60 Hz or 230V 50 Hz AC input... 3 prongs IEC 60320 C14 LAMP Xenon (BL-200ST) ...
