H-3047, H-3048
H-7358

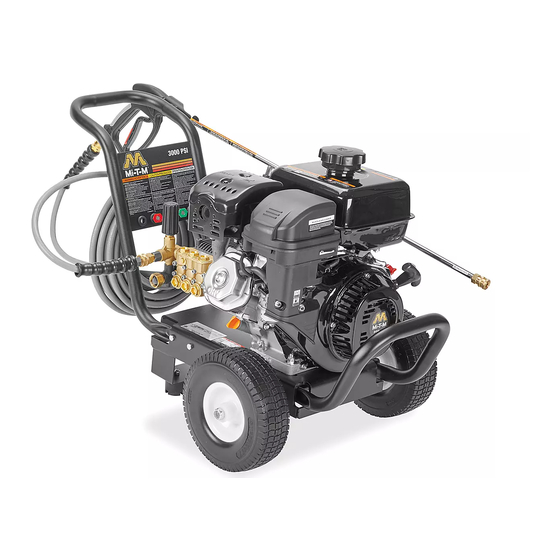

INDUSTRIAL GAS
PRESSURE WASHER
MALFUNCTION
No discharge at nozzle or low/
fluctuating pressure.
Low pressure.
Detergent will not siphon.
Water leaks from heat dump
valve.
PAGE 1 OF 6
1-800-295-5510
uline.com
TROUBLESHOOTING
PROBABLE CAUSE/CORRECTIVE ACTION
Inadequate water supply, 3/4" diameter hose and water supply
fully opened.
Clogged nozzle.
Kink in water inlet hose.
Pump is sucking in air – Tighten water intake/hose connections.
Not in high pressure mode – Insert high pressure nozzle.
Inadequate water supply, 3/4" diameter hose and water supply
fully opened.
Worn or wrong nozzle.
Incorrect engine speed – Set to 3600 RPM offload, 3450 onload.
Detergent hose not submerged into solution.
Detergent strainer obstructed.
Detergent hose cut, obstructed or kinked.
Detergent adjusting knob closed – Twist to open.
Not in low pressure mode – Insert black nozzle.
Too many high pressure hose extensions used – Use only one hose
extension.
Water flows back into detergent container, ball and spring in
venturi may be reversed or missing.
Inlet water temperature too high. Do not exceed 125°F.
Do not allow unit to operate in bypass mode (with trigger gun
closed) for more than three minutes.
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
0321 TH-3047

Advertisement

loading

Related Manuals for U-Line H-3047

Summary of Contents for U-Line H-3047

  • Page 1 Para Español, vea páginas 3-4. Pour le français, consulter les pages 5-6. H-3047, H-3048 1-800-295-5510 H-7358 uline.com INDUSTRIAL GAS PRESSURE WASHER TROUBLESHOOTING MALFUNCTION PROBABLE CAUSE/CORRECTIVE ACTION No discharge at nozzle or low/ Inadequate water supply, 3/4" diameter hose and water supply fluctuating pressure.
  • Page 2 Low/No oil. start. Always check oil level before each use. Recommended Oil Changes for H-3047: After first month or 20 hours of use and then every 6 months or 100 hours of use thereafter. Recommended Oil Changes for H-3048: After first month or 5 hours of use and then every 6 months or 50 hours of use thereafter.

  • Page 3: Solución De Problemas

    H-3047, H-3048 800-295-5510 H-7358 uline.mx LIMPIADOR A PRESIÓN INDUSTRIAL DE GAS SOLUCIÓN DE PROBLEMAS FUNCIONAMIENTO INADECUADO POSIBLE CAUSA/ACCIÓN CORRECTIVA La boquilla no descarga o la presión Suministro de agua inadecuado, manguera con un diámetro de 1.9 cm es baja/fluctuante. (3/4") y suministro de agua abierto completamente.
  • Page 4 Antes de cada uso revise siempre el nivel de aceite. Cambios de Aceite recomendados para H-3047: Después del primer mes o 20 horas de uso y luego cada 6 meses o 100 horas de uso. Cambios de Aceite recomendados para H-3048: Después del primer mes o 5 horas de uso y luego cada 6 meses o 50 horas de uso.

  • Page 5: Dépannage

    H-3047, H-3048 1-800-295-5510 H-7358 uline.ca NETTOYEUR À PRESSION À ESSENCE INDUSTRIEL DÉPANNAGE DÉFAILLANCE CAUSE POSSIBLE/MESURE CORRECTIVE Aucun rejet à la buse ou basse Approvisionnement en eau inadéquat, diamètre du tuyau de pression/fluctuation de la 1,9 cm (3/4 po) et alimentation en eau complètement ouverte.
  • Page 6 Huile insuffisante/manquante. ou ne démarre pas. Vérifiez le niveau d'huile avant chaque utilisation. Fréquence de vidange d'huile recommandée pour H-3047 : après le premier mois ou 20 heures d'utilisation, et par la suite, tous les 6 mois ou 100 heures d'utilisation.
