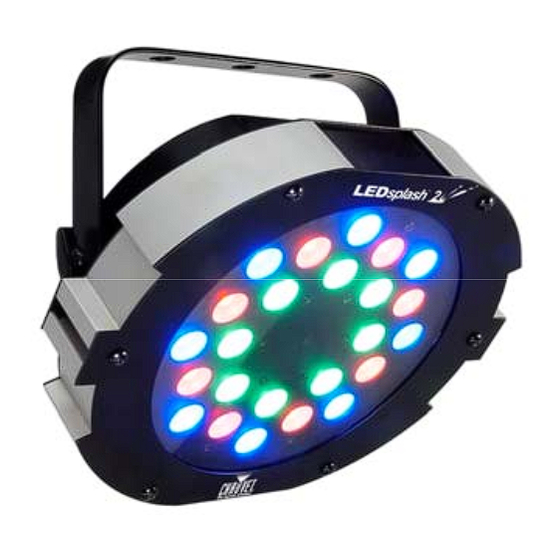

- Page 1 LEDsplash ™2 Chauvet, 3000 N 29 USER MANUAL Ct, Hollywood, FL 33020 U.S.A. (800) 762-1084 – (954) 929-1115 FAX (954) 929-5560 www.chauvetlighting.com Snapshot Ok on Dimmer Outdoor OK Sound Activated DMX512 Master/Slave Autoswitching Transformer Replaceable Fuse User Serviceable Duty Cycle...
-
Page 2: Table Of Contents
Dipswitch Options ...11 DMX Mode ...11 DMX C ...11 HANNEL ALUES ...13 ENERAL ROUBLESHOOTING ...14 ECHNICAL UPPORT 5. APPENDIX...14 DMX P ...14 RIMER ...15 ENERAL AINTENANCE ...15 ETURNS ROCEDURE ...15 LAIMS ...16 ECHNICAL PECIFICATIONS LEDSplash 2 User Manual ... 8 2008-01-22/09:14... -
Page 3: Before You Begin
(variable resistor) or dimmer circuit, even if the rheostat or dimmer channel is used solely for a 0% to 100% switch. Contact Us W o r l d W i d e General Information Technical Support World Wide Web LEDSplash 2 User Manual EGIN Chauvet Lighting 3000 North 29 Court Hollywood, FL 33020 voice: 954.929.1115... -
Page 4: Safety Instructions
Do not daisy chain power to more than 8 units. Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact CHAUVET at: 954-929-1115. LEDSplash 2 User Manual 2008-01-22/09:14... -
Page 5: Introduction
Sound 240~255 For a detailed view of DMX values turn to the Appendix section in this manual. Control mode parameters are set by DMX values in Channel # 1. LEDSplash 2 User Manual Green Blue Strobe 000~255 000~255... -
Page 6: Product Overview
Product Overview Mounting Bracket Microphone Output DMX Input Connector Connector LEDSplash 2 User Manual Music/Auto Switch Dipswitches Power Connector and Fuse Holder Sound Sensitivity Knob Power Output (max 8 units) LEDsplash 2 only! 2008-01-22/09:14... -
Page 7: Setup
Maximum recommended number of fixtures on a serial data link: 32 fixtures Data Cabling To link fixtures together you must obtain data cables. You can purchase CHAUVET-certified DMX cables directly from a dealer/distributor or construct your own cable. If you choose to create your own cable please use data-grade cables that can carry a high quality signal and are less prone to electromagnetic interference. -
Page 8: Cable Connectors
If you use a controller with a 5 pin DMX output connector, you will need to use a 5 pin to 3 pin adapter. Note! CHAUVET Model No: DMX5M, or DMX5F. The chart below details a proper cable conversion: IN TO... -
Page 9: Master/Slave Fixture Linking
• Safety cables should always be used. • Never mount in places where the fixture will be exposed to rain, high humidity, extreme temperature changes or restricted ventilation. LEDSplash 2 User Manual Note! Clamp is sold separately. Hanging Clamp 2008-01-22/09:14... -
Page 10: Operating Instructions
- Set Music/Auto switch to Music and for sound-activated triggering of the program - Set Music/Auto switch to Auto then use the rotary dial to adjust speed of the program - See below under Dipswitch Options for additional program settings LEDsplash 2 User Manual NSTRUCTIONS 2008-01-22/09:14... -
Page 11: Dipswitch Options
Channel 2 will control the Red LEDs Channel 3 will control the Green LEDs iii. Channel 4 will control the Blue LEDs Channel 5 will control Strobing Channel 6 will control the Dimmer LEDsplash 2 User Manual ( ON ) & D OTES ESCRIPTION None... - Page 12 See Table 1.1 Music/Auto Switch Note! Regardless of DMX controller operated use, when the LEDsplash 2 is set to run in Sound Activated mode, you should make sure that all units are properly switched to Music and that you have adjusted the rotary dial to optimize the sound level response of the unit.
-
Page 13: General Troubleshooting
If you still have a problem after trying the above solutions, please contact CHAUVET Technical Support at the location on the next page. LEDsplash 2 User Manual... -
Page 14: Technical Support
XLR male to female connectors. The shield connection is pin 1, while pin 2 is Data Negative (S-) and pin 3 is Data positive (S+). CHAUVET carries 3-pin XLR DMX compliant cables, DMX-10 (33’), DMX-4.5 (15’) and DMX-1.5 (5’) -
Page 15: General Maintenance
Package must be clearly labeled with a Return Merchandise Authorization Number (RA #). Products returned without an RA # will be refused. Call CHAUVET and request RA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return. -
Page 16: Technical Specifications
Data output ... locking 3-pin XLR female socket Data pin configuration ...pin 1 shield, pin 2 (-), pin 3 (+) Protocols... DMX-512 USITT DMX Channels ...6 ORDERING INFORMATION LEDSplash 2... LED-SPLASH2 WARRANTY INFORMATION Warranty ... 2-year limited warranty LEDsplash 2 User Manual 2008-01-22/09:14...
