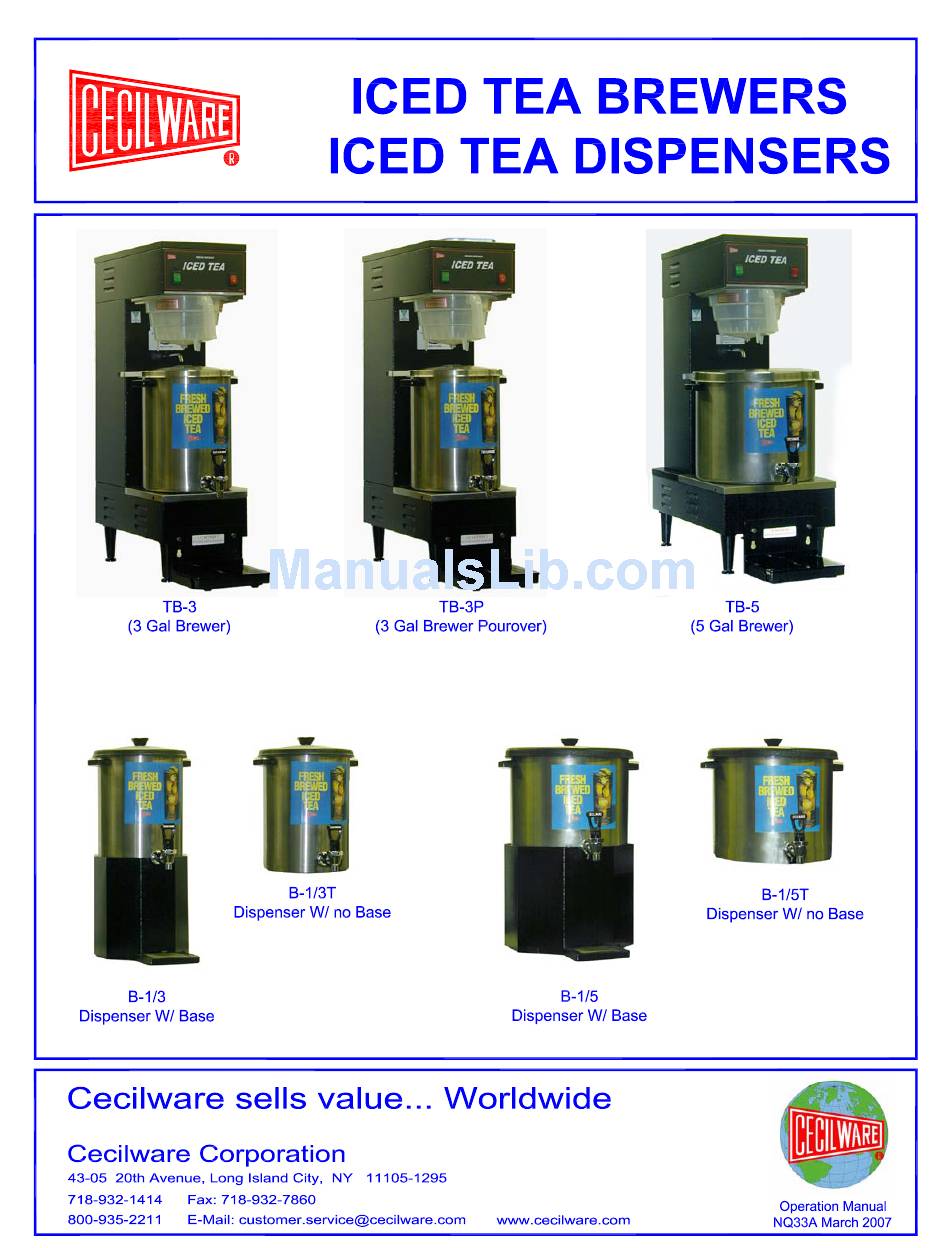

- Page 3 ICED TEA BREWER Model: TB-3P (Manual Pour0ver) 3 GALLON S.S. ICED TEA DISPENSER B-1/3 ICED TEA DISPENSERS B-1/3 B-1/5 POUROVER OPENING READY LIGHT BREW FUNNEL S.S. BREW COVER CECILWARE LABEL CHROME FAUCET DRIP TRAY & GRILLE B-1/3T POWER SWITCH B-1/5T...
- Page 4 LARGE FUNNEL WITH STANDARD RIM USED ON TB-3 AND TB-5 PART NO V211R FUNNEL BRUSH X128A FAUCET BRUSH X159A DRIP TRAY...
-
Page 5: Electrical Specifications
MODEL NO. DESCRIPTION 3 GAL Brewer TB-3 W/ B-1/3T 5 GAL Brewer TB-5 W/ B-1/5T TB-3P Pour-Over Brewer 3 GAL Dispenser B-1/3 & Base 5 GAL Dispenser B-1/5 & Base 3 GAL Dispenser (No Base) B-1/3T 5 GAL Dispenser B-1/5T (No Base) 120 Volt Line Cord included, Export 220 Volts, 2.40 KW. -
Page 6: Initial Setup
The brewer must be connected to a cold water supply with an operating pressure of 20psi minimum and 90psi maximum from a ½ in. supply line. If pressure should exceed 90psi, install a pressure regulator to reduce the operating pressure to 50psi. Use ¼ inch copper tubing for installation of less then 25 ft. -
Page 7: Hot Water
FLAVOR CHART Model No. Type of Tea Brewing Concentrate unsweet 0.75 gal. (96 oz) in 3 minutes TB-3 sweet 0.70 gal. (90 oz) in 3 minutes unsweet 1.30 gal. (166 oz) in 5 minutes TB-5 sweet 1.20 gal. (153 oz) in 5 minutes... - Page 8 WARNING: To reduce the risk of electrical shock, unplug the power cord before repairing or replacing any internal components. Before any attempt to replace a component be sure to check all electrical connections for proper contact. PROBLEM PROBABLE CAUSE a) Heater Switch OFF. Brewed Cold Tea.
- Page 10 Part No.RV33C 3.25 Gal HOT WATER TANK...
-
Page 11: Special Order
The Longer water flows - More water - Weaker tea; Less water flows - Less water - Stronger tea. The TB-3 & TB-5 Brewer will complete a full cycle in approximately 5 TO 10 min. 1. BREW TIMER ADJUSTMENT (mounted inside top housing). -
Page 12: Dispense Valve
Locate Dispense Valve, by removing the top lid of machine. Looking down into the machine, the Dispense Valve is mounted on the tank. FIXED FLOW: 1 LITER/ MINUTE [0.26 gal./ minute] TB-3 3 liters in 3 minutes [0.78 gal. in 3 minutes] TB-5 5 liters in 5 minutes [1.3 gal. - Page 13 CRITICAL COMPONENTS TESTS Water Inlet Valve Test Check hot water side, going to tank: Turn power off. If the water level rises inside the tank, the Water Inlet Valve is leaking. Disconnect wires from the Water Inlet Valve coil and connect a 2 wire line cord to the terminals. Plug it into electrical outlet.
- Page 14 B-1/3 (3 GALLON) RX62A - RY02A Q184A M028A P264A M776A Q181A M632A (2) P015A (2) CHROME D064A D025S 19015 (2) K105A RT31A 3 GAL RT34A OCTAGON BASE RT33A RT33Q B-1/5 (5 GALLON) RX62A - RY72A Q190A (R021A) Q184Q M028A P264A M776Q M777A Q182A...
- Page 15 INSTALLATION AND OPERATING INSTRUCTIONS MANUAL POUR-OVER BREWER WARNING: MACHINE WARRANTY IS VOID IF CONNECTED TO ANY VOLTAGE OTHER THAN 120 VOLTS. NOTE: A dedicated 120 Volt, 15-Ampere Grounded Outlet should be supplied for each unit installed. Check local codes for compliance installation. The TB-3P is a Manual Pour-over Brewer and therefore is NOT equipped with water inlet connection.
-
Page 16: Deliming Procedure
1. Place the 3 Gallon Tea Dispenser, with Brew-thru Cover, onto the base of the Brewer with the hole in the cover positioned under the brew funnel. 2. Place 3 oz. Tea Bag on brew funnel platform, and insert into brewer. 3. -
Page 17: Troubleshooting Guide
WARNING: To reduce the risk of electrical shock unplug the dispenser power cord before repairing or replacing any internal components of the unit.. Before any attempt to replace a component be sure to check all electrical connections for proper contact PROBLEM PROBABLE CAUSE Brewer Does Not...
