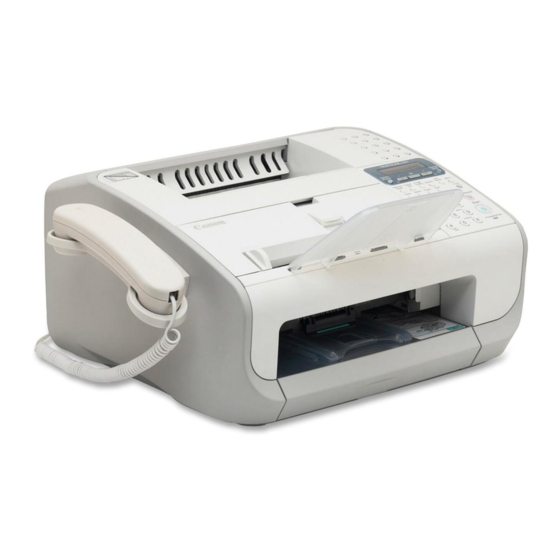

Canon faxphone l90
Hide thumbs Also See for FaxPhone L90:
Table of Contents

Advertisement

Quick Links

See also: Basic Operation Manual , Reference Manual
Starter Guide
Please read this guide before operating this product.
After you finish reading this guide, store it in a safe place for future
reference.

Advertisement

Table of Contents
loading

Related Manuals for Canon FaxPhone L90

Summary of Contents for Canon FaxPhone L90

  • Page 1 Starter Guide Please read this guide before operating this product. After you finish reading this guide, store it in a safe place for future reference.
  • Page 2 Unpacking the Machine Remove all shipping tape and packing material from the machine. Always hold the bottom when you lift the machine and lift it carefully, as shown in the illustration below.

  • Page 3: Table Of Contents

    Contents What You Can Do with the Machine ������������������������������������������������������������������������������������������������������������������������� 2 Find Your Purpose on the Machine �������������������������������������������������������������������������������������������������������������������������� 3 Set Up the Machine ����������������������������������������������������������������������������������������������������������������������������������������������������� 4 Do You Have Everything? ...4 Manuals for the Machine ...4 Install Toner Cartridge ...5 Load Paper ...7 Connect the Power Cord ...9 Set the Date and Time ...10 Before FAX Setting ����������������������������������������������������������������������������������������������������������������������������������������������������...

  • Page 4: What You Can Do With The Machine

    What You Can Do with the Machine You can use the following functions with FAXPHONE L90.

  • Page 5: Find Your Purpose On The Machine

    Find Your Purpose on the Machine For using each function (FAX, COPY, PRINTER), follow the settings in the flowchart below. For example, when you use copy function only, follow “Necessary Settings”. When you use both copy and fax functions, follow “Necessary Settings” and “Fax Settings”.

  • Page 6: Set Up The Machine

    Set Up the Machine Do You Have Everything? Machine ● Telephone Cable ● Handset ● Starter Guide (This Document) ● Basic Operation Guide ● User Software CD ● Limited Warranty Notice ● Registration Card ● Manuals for the Machine (User software CD) Toner Cartridge ●...

  • Page 7: Install Toner Cartridge

    Install Toner Cartridge Remove the toner cartridge from the bag. Do not open the drum protective shutter (A). Gently rock the toner cartridge several times to evenly distribute the toner inside. Set Up the Machine Place the toner cartridge on a flat surface and pull the seal completely out.
  • Page 8 Set Up the Machine Open the toner cover by the notch (A). Hold the toner cartridge by its handle (A). The arrow (A) on the toner cartridge should be facing away from you and pointing down. Insert the toner cartridge so that the guide (A) on the left side of the toner cartridge fits into the groove inside the machine and slide it down parallel to the guide.

  • Page 9: Load Paper

    Load Paper Lift the paper stack cover and pull it out completely. Make sure the back end of the cover does not catch the front paper guide. Pinch and slide the side paper guides to match the size of paper. Set Up the Machine Pull out the paper guide rail as far as it will go.
  • Page 10 Set Up the Machine Push back the paper guide rail to the front edge of paper. – If loading paper shorter than LTR, pinch and slide the front paper guide (A) to match the paper size. – If loading paper other than LTR, make sure to set the correct paper size in the machine.

  • Page 11: Connect The Power Cord

    Connect the Power Cord Connect the power cord into the rear socket on the back side of the machine and the wall outlet. The machine enters the standby mode. The LCD display turned off: ● The machine may enter the sleep mode while you are setting up the machine. Press [Energy Saver] to turn the machine back on and continue the setup. <CLOSE COVER/TONER COVER>...

  • Page 12: Set The Date And Time

    Set Up the Machine Set the Date and Time Before using the machine, you MUST set the current date and time. The current date and time settings are used as standard timer settings for functions that require them. Press [Menu]. Press [ ] or [ ] to select <8 TIMER...

  • Page 13: Before Fax Setting

    Before FAX Setting Connect Telephone Cables ● Connect the supplied telephone cable to the telephone line jack (A) on the back side of the machine and the wall jack. ● If you want to connect your own external telephone or telephone with built-in answering machine, connect it to external device jack (B) on the back side of machine.

  • Page 14: Install Handset

    Before FAX Setting Install Handset Use a screwdriver to remove the covers on the left side of the machine. Insert the plugs with pins (A) into the holes on the handset cradle. Do not insert the pins all the way into the plugs at this point. Insert the plugs (with the cradle) into the holes on the machine.

  • Page 15: If Necessary To Use Pulse Dialing

    If Necessary to Use Pulse Dialing By default, telephone line type on the machine is set to <TOUCH TONE>. If you use tone dialing, skip the following procedure. If you need to use pulse dialing, follow the procedure below and change the telephone line type setting to <ROTARY PULSE>...

  • Page 16: Set The Machine For Sending Faxes

    Set the Machine for Sending Faxes Entering Information Use the following keys to enter information in the machine. You can enter the following characters in each input mode: Use the numeric keys to enter ● characters. Press the numeric key repeatedly until the required character appears.

  • Page 17: Registering Sender Information

    Registering Sender Information Before sending documents, you MUST register your fax number, unit name, and the current date and time in the machine. Guidelines for Entering Information The sender information you register in the machine appears in the header of each page received by your recipient.

  • Page 18: Set The Machine For Receiving Faxes

    Set the Machine for Receiving Faxes Select the Receive Mode that Suits Your Needs The receive mode determines how the machine responds to incoming faxes and voice calls. Select the mode which is most suitable for you from the chart below. For details, see “About the Receiving Modes, ” on p. 17. –...

  • Page 19: About The Receiving Modes

    About the Receiving Modes <FaxOnly> Receives faxes automatically. When you use only the fax function, select this mode without connecting to the external telephone. ● Upon Receiving FAX The machine receives faxes automatically. ● Upon Receiving VOICE CALL The machine does not respond.

  • Page 20: Software Settings With Computer

    Memory: 128MB or more About User Software CD Driver UFRII LT Driver The Canon UFRII LT printer driver enables you to print from any application software to the machine. Taking full advantage of your PC’s processing power to compress the print data, this driver executes the high-speed data processing.

  • Page 21: Usb Connection

    USB Connection • Do not connect the USB cable before installing the software. If you connect the USB cable before installing the software and the Found New Hardware Wizard screen appears, click [Cancel]. • For Windows 2000/XP/Server 2003/Vista, logon as Administrator to install the software. •...
  • Page 22 Software Settings with Computer Complete steps 9 and 10 before the progress bar in the screen is full. If the dialog box shown above appears, press [Retry] to continue the installation. Remove the attachment (A) which covers on the USB port on the back of the machine.

  • Page 23: Checking The Installation

    Checking the Installation Check if the driver is installed successfully and if this machine has been set as default printer. If the name of your machine is selected on the [printer] screen from an application, it is set as default printer. Open the [Printers and Faxes] folder (Windows 2000: the [Printers] dialog box).

  • Page 24: Appendix

    Click [start] on the Windows task bar Programs] [Canon Printer Uninstaller] → Printer Driver Uninstaller]. The [Delete Printer] dialog box appears. Select [Canon L90/L160/L230 UFRII LT], then click [Delete]. Click [Yes]. Uninstallation proceeds and the next dialog box appears. [(All) →...

  • Page 25: Using Online Help

    Using Online Help The user software CD includes programs (driver software and application software) which the supplied instruction guides do not cover. When you use such programs, refer to the online help and context sensitive help following the instructions below. You can locate additional help in the online help file provided with the driver software.
  • Page 27 Copyright Copyright © 2007 by Canon Inc. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual, or otherwise, without the prior written permission of Canon Inc.
  • Page 28 CANON INC. 30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan CANON U.S.A., INC. One Canon Plaza, Lake Success, NY 11042, U.S.A. CANON CANADA INC. 6390 Dixie Road Mississauga, Ontario L5T 1P7, Canada CANON EUROPA N.V. Bovenkerkerweg 59-61 1185 XB Amstelveen, The Netherlands CANON FRANCE S.A.S.
