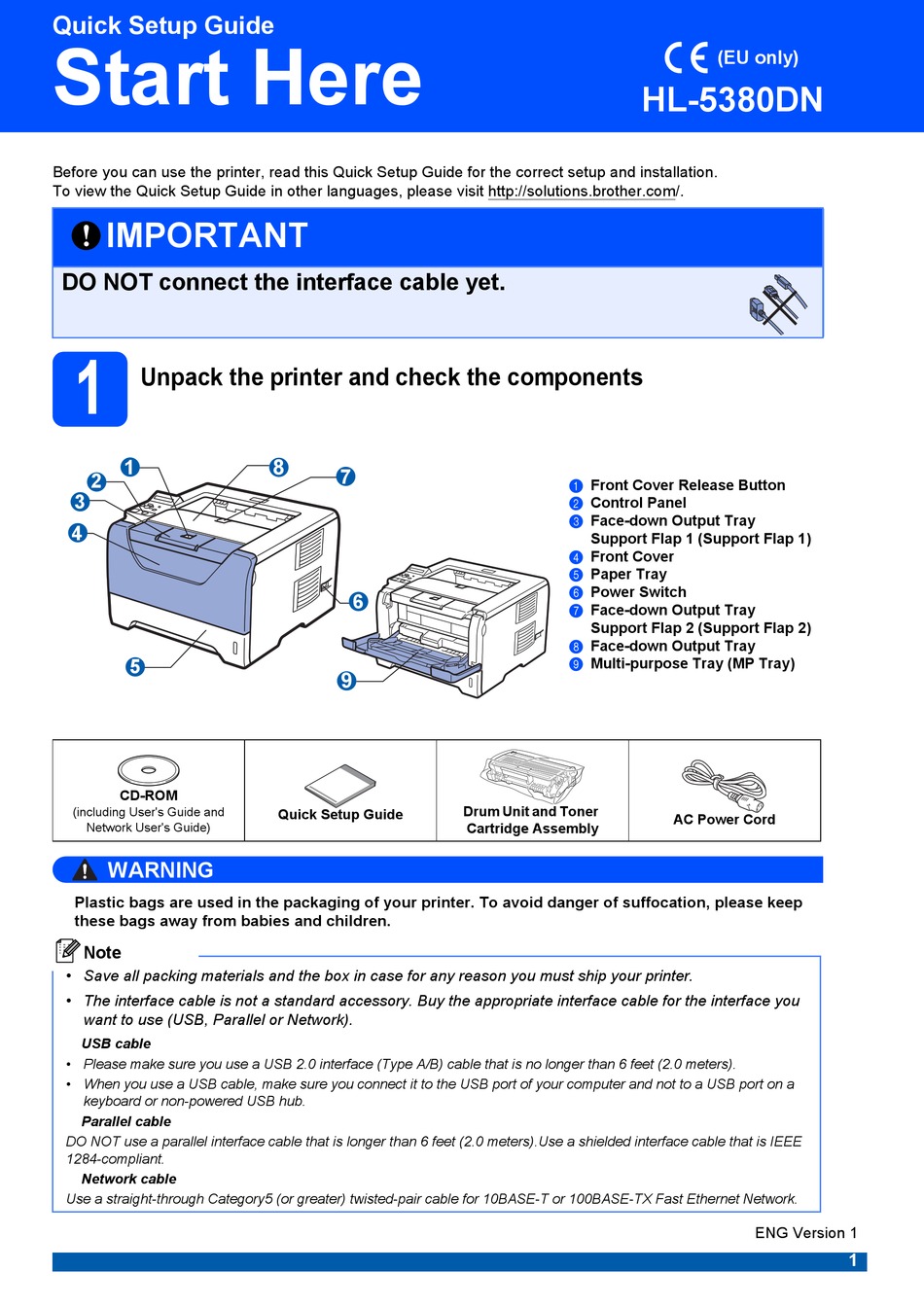

Quick Setup Guide
Start Here
Before you can use the printer, read this Quick Setup Guide for the correct setup and installation.
To view the Quick Setup Guide in other languages, please visit http://solutions.brother.com/.
IMPORTANT
DO NOT connect the interface cable yet.
1
Unpack the printer and check the components
1
1
2
3
4
5
CD-ROM
(including User's Guide and
Network User's Guide)
WARNING
Plastic bags are used in the packaging of your printer. To avoid danger of suffocation, please keep
these bags away from babies and children.
Note
• Save all packing materials and the box in case for any reason you must ship your printer.
• The interface cable is not a standard accessory. Buy the appropriate interface cable for the interface you
want to use (USB, Parallel or Network).
USB cable
• Please make sure you use a USB 2.0 interface (Type A/B) cable that is no longer than 6 feet (2.0 meters).
• When you use a USB cable, make sure you connect it to the USB port of your computer and not to a USB port on a
keyboard or non-powered USB hub.
Parallel cable
DO NOT use a parallel interface cable that is longer than 6 feet (2.0 meters).Use a shielded interface cable that is IEEE
1284-compliant.
Network cable
Use a straight-through Category5 (or greater) twisted-pair cable for 10BASE-T or 100BASE-TX Fast Ethernet Network.
8
7
6
9
Quick Setup Guide
Front Cover Release Button
a
Control Panel
b
Face-down Output Tray
c
Support Flap 1 (Support Flap 1)
Front Cover
d
Paper Tray
e
Power Switch
f
Face-down Output Tray
g
Support Flap 2 (Support Flap 2)
Face-down Output Tray
h
Multi-purpose Tray (MP Tray)
i
Drum Unit and Toner
Cartridge Assembly
(EU only)
HL-5380DN
AC Power Cord
ENG Version 1
