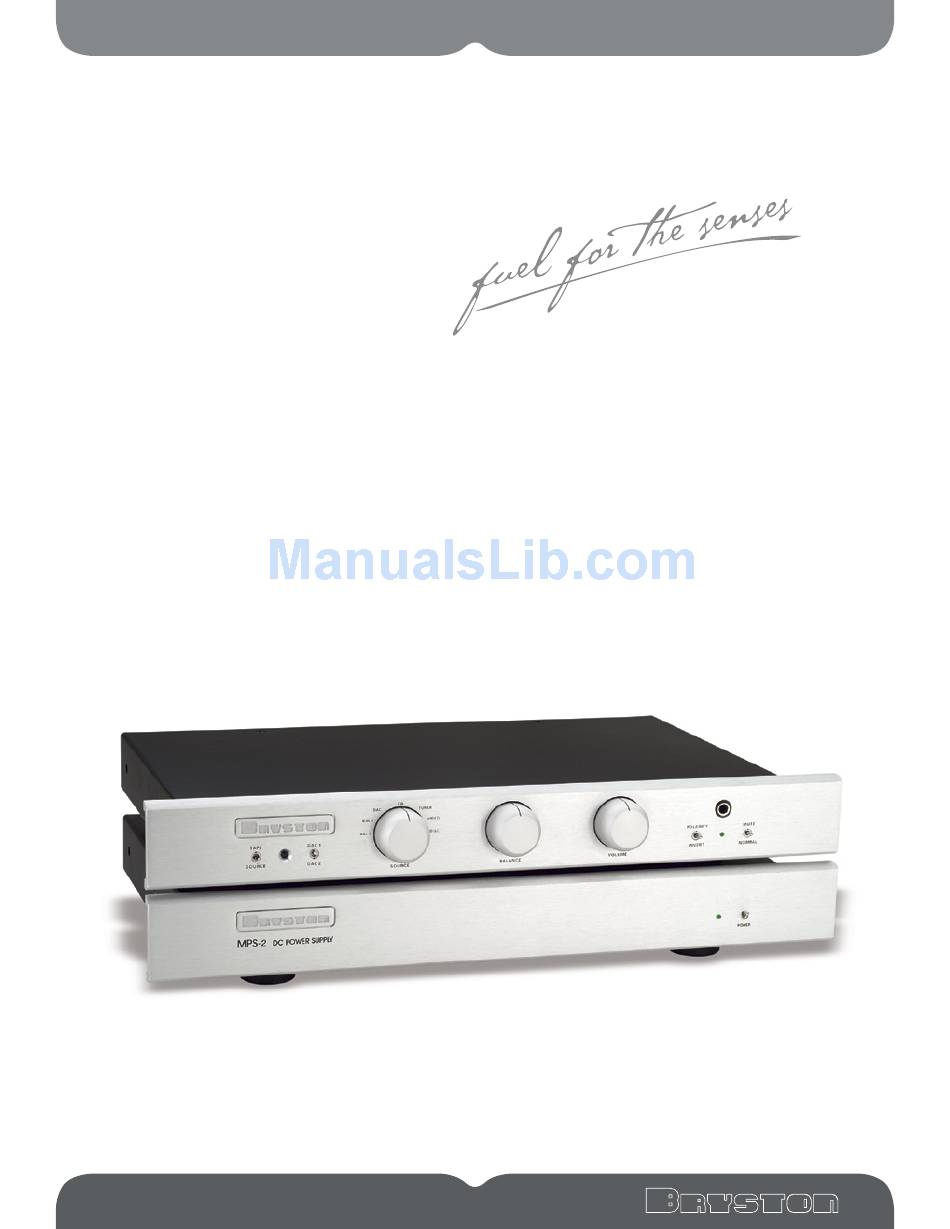

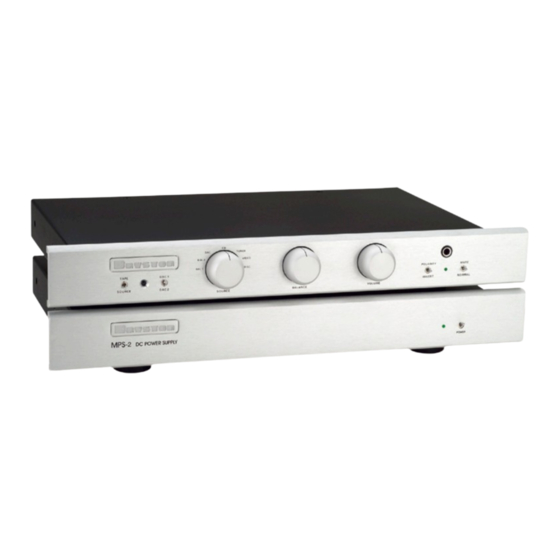

- Page 1 C–SERIES PRE-AMPLIFIERS INTEGRATED AMPLIFIERS PHONO STAGE BP26/MPS-2...
- Page 2 CD or DVD players. Simply plug the digital out from your CD/DVD player into the Bryston BP-26DA. The quality of sound using fully discrete Class A operational amplifiers, rather than the typical IC’s, has to be heard to be believed.
-
Page 3: Available Models
ThE MUSIC CONNOISSEUR Our feeling is that Bryston’s BP-26 C-Series preamplifiers are one of those fortunate circumstances when the long hours and extended listening pays off. The sense of transcending the recording medium and experiencing the original performance is captured with exceptional realism. -
Page 4: Technical Specifications
TEChNICAL SpECIFICATIONS FREqUENCY RESPONSE: 20Hz-20kHz +/- .05dB MAxIMUM OUTPUT: 15 volts unbalanced, 30 volts balanced IM OR THD: less 0.0015% at 3 volts out HIGH LEvEL INTENSITY: 500mV RATED NOISE: Ref. 500mV unbalanced input, 20-20kHz - 100dB Ref. 1 volt balanced input 20-20kHz - 103dB xLR: Pin 1 ground, pin 2 positive, pin 3 negative FEATURES:... - Page 5 BP-16 SST C-SERIES STEREO ANALOG/DIGITAL PREAMPLIFIER The new Bryston BP-16 is based on our world famous B-100 SST integrated amplifier. In fact the BP-16 is the identical preamplifier section from the B-100. Technical specifications are identical to the B-100 amplifier section (see pg 8). This provides a very cost effective solution for us to manufacture a full-featured versatile preamplifier for our customers.
- Page 6 CD or DVD player should strongly consider this system. The Bryston DAC provides an easy upgrade path that will substantially increase the resolution of your audio system.
- Page 7 • High current reserves for lightning-fast response. • Programmable Pass-through feature. PRE-OUT/MAIN-IN: A versatile feature on the Bryston B-100 integrated amplifier is the pre-out/main-in connectors. It allows the independent use of the preamplifier or stereo amplifier section within a multi-channel audio or video system.
- Page 8 • Available in Black or Silver 17 or 19 inch faceplate PERFORMANCE WITHOUT COMPROMISE: If your requirements are for sonic excellence in a versatile, convenient package, without compromises in performance, value and reliability, look no further than the Bryston B-100 Integrated Amplifier.
-
Page 9: Specifications
B100 SST C-SERIES PREAMPLIFIER FREqUENCY RESPONSE 20Hz - 20kHz +/- .05dB MAxIMUM OUTPUT 15 volts IM OR THD Less than 0.005% at 3 volts out HIGH LEvEL SENSITIvITY 500mV RATED NOISE Ref. 500mV 20-20kHz - 100dB FEATURES 4 stereo RCA inputs 3 with DAC option 1 stereo RCA output 1 stereo tape loop... - Page 10 Options Include: • Bryston Internal DAC • Bryston Internal MM Phono Stage (see pg. 12) • Bryston handheld remote volume control HAND ASSEMBLED WITH CARE: Bryston hand assembles and individually tests each and every product we manufacture.
-
Page 11: Harmonic Distortion
C-SERIES SpECIFICATIONS B-60 SST PREAMPLIFIER FREqUENCY RESPONSE 20Hz - 20kHz +/- .05dB MAxIMUM OUTPUT 15 volts IM OR THD Less than 0.005% at 3 volts out HIGH LEvEL SENSITIvITY 500mV RATED NOISE Ref. 500mV 20-20kHz - 100dB FEATURES 4 stereo RCA inputs 3 with DAC option 1 stereo RCA output 1 stereo tape loop... - Page 12 The BP-1.5 is available with an optional separate outboard power supply (MPS-2) to minimize noise and distortion. It can also be used in conjunction with the MPS-2 power supply on the Bryston BP-26 Preamplifier without the need for an extra power supply. Phono Gain: BP-1.5 includes two different amplifier modes to accommodate...
-
Page 13: Frequency Response
(Thermal noise greater than 85dB below 0.6mV input, unweighted) Gain: 16.5 or 22.5dB (internally restrappable) Frequency Response: Below 5Hz to above 30kHz, within less than +/- 0.5dB BRYSToN bp 1.5 MM/MC FREqUENCY RESPONSE (With Inverse RIAA filter) 20Hz-20kHz +1-.05dB MAxIMUM OUTPUT MC mode;... - Page 14 DIGITAL TO ANALOGUE CONVERTER BRYSTON DAC The Bryston DAC chip we use is a hybrid multi-bit delta sigma DAC (digital to analogue converter) device. Before the digital data reaches the delta-sigma modulator, it is run through an 8x over-sampling process and digital interpolation filter. Due to...
- Page 15 CompARISoN MODEL BALANCED PHONO MM BP 26 can have both MM and MC Phono or DAC internally installed but not both BP 16 BP 16 can have both Phono MM and DAC internally installed BP 6 BP 6 can have Phono MM or DAC internally installed but not both B 100 BP 100 can have both Phono MM and DAC internally installed B 60R...
-
Page 16: Warranty
On average, it takes thirty to thirty-five person-hours to assemble a single Bryston product. Is this just some romantic 19th-century notion of the artisan-craftsman, or is there a real benefit to you, the consumer? There is. Take the hand soldering, for example.
