CALIBRATION PROCEDURE

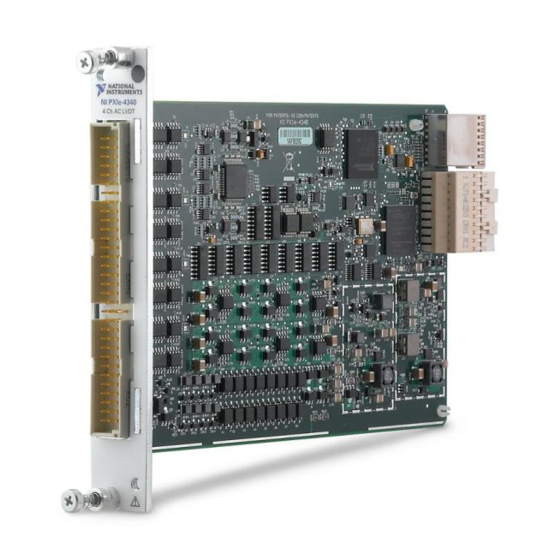

NI PXIe-4340
4 Ch, 24-bit, 25.6 kS/s Simultaneous AC LVDT Input Module
Français
This document contains the verification procedure for the National Instruments PXIe-4340
module.
Contents
Software.................................................................................................................................... 1
Documentation.......................................................................................................................... 2
PXIe-4340 Verification ............................................................................................................ 3
Test Equipment................................................................................................................. 3
Connecting the TB-4340 .......................................................................................... 4
Test Conditions................................................................................................................. 5
Initial Setup....................................................................................................................... 6
Accuracy Verification....................................................................................................... 6
Excitation Accuracy ................................................................................................. 6
Ratiometric Accuracy ............................................................................................... 9
EEPROM Update ............................................................................................................. 10
Specifications............................................................................................................................ 10
Worldwide Support and Services ............................................................................................. 10
Software
Calibrating the NI PXIe-4340 requires the installation of NI-DAQmx on the calibration system.
Driver support for calibrating the PXIe-4340 was first available in NI-DAQmx 16.1. For the list
of devices supported by a specific release, refer to the NI-DAQmx Readme, available on the
version-specific download page or installation media.
You can download NI-DAQmx from
™
™
LabWindows
/CVI
only need to install support for the application software that you intend to use.
Deutsch
ni.com/manuals
ni.com/downloads
, C/C++, C#, and Visual Basic .NET. When you install NI-DAQmx, you
. NI-DAQmx supports LabVIEW,
Advertisement
Table of Contents
Related Manuals for National Instruments NI PXIe-4340
Summary of Contents for National Instruments NI PXIe-4340
-
Page 1: Table Of Contents
Worldwide Support and Services ..................... 10 Software Calibrating the NI PXIe-4340 requires the installation of NI-DAQmx on the calibration system. Driver support for calibrating the PXIe-4340 was first available in NI-DAQmx 16.1. For the list of devices supported by a specific release, refer to the NI-DAQmx Readme, available on the version-specific download page or installation media. -
Page 2: Documentation
All documents are available on , and help files install with the ni.com software. NI PXIe-4340 and TB-4340 User Guide and Terminal Block Specifications NI-DAQmx driver software installation and hardware setup. NI PXIe-4340 User Manual PXIe-4340 usage and reference information. -
Page 3: Pxie-4340 Verification
400 Hz to 10 kHz. PXI Express Chassis PXIe-1062Q If this chassis is unavailable, use another PXI Express chassis, such as the PXIe-1082 or PXIe-1078. Connection Accessory TB-4340 — NI PXIe-4340 Calibration Procedure | © National Instruments | 3... -
Page 4: Connecting The Tb-4340
Figure 1. TB-4340 Circuit Board Parts Locator Diagram NI TB-4340 159026B-01L COPYRIGHT 2015 EXCITATION EXCITATION VERIFICATION VERIFICATION EX– EX– EX– EX– RS– RS– RS– RS– AIGND AIGND AIGND AIGND AI– AI– AI– AI– PFIO DGND 4 | ni.com | NI PXIe-4340 Calibration Procedure... -
Page 5: Test Conditions
For valid test limits, the device must be within ±5 °C and 24 hours of the last self-calibration. is the internal device temperature recorded by the PXI-4070 at the completion of the last self-calibration. NI PXIe-4340 Calibration Procedure | © National Instruments | 5... -
Page 6: Initial Setup
To connect the TB-4340 for excitation verification, install the PXIe-4340 and the TB-4340 in the PXI Express chassis according to the instructions in the NI PXIe-4340 and TB-4340 User Guide and Terminal Block Specifications. Do not use the excitation verification terminals as they are only used for gross field checks and will introduce additional errors. - Page 7 Digital Resolution 6.5 digits Aperture Time 200 ms Autozero Once ADC Calibration Input Impedance 1 MΩ Minimum Frequency Number of Averages Power Line Frequency Dependent upon the local power line characteristics. NI PXIe-4340 Calibration Procedure | © National Instruments | 7...
- Page 8 Compare the DC Offset measurement to the Limits in Table 6. If the measurement is between these values, the devices passes the DC Offset test at this Excitation Voltage. Table 6. DC Offset Measurement Limits DC Offset (All Amplitudes) ±10 mV 8 | ni.com | NI PXIe-4340 Calibration Procedure...
-
Page 9: Ratiometric Accuracy
Complete the following steps to connect the TB-4340 for ratiometric accuracy verification: Install the PXIe-4340 and the TB-4340 in the PXI Express chassis according to the instructions in the NI PXIe-4340 and TB-4340 User Guide and Terminal Block Specifications. Connect AI+ and AI- according to the measurements in Table 8 for each measurement. -
Page 10: Eeprom Update
NI product. Refer to the Export Compliance Information at ni.com/legal/export-compliance for the National Instruments global trade compliance policy and how to obtain relevant HTS codes, ECCNs, and other import/export data. NI MAKES NO EXPRESS OR IMPLIED WARRANTIES AS TO THE ACCURACY OF THE INFORMATION CONTAINED HEREIN AND SHALL NOT BE LIABLE FOR ANY ERRORS.
