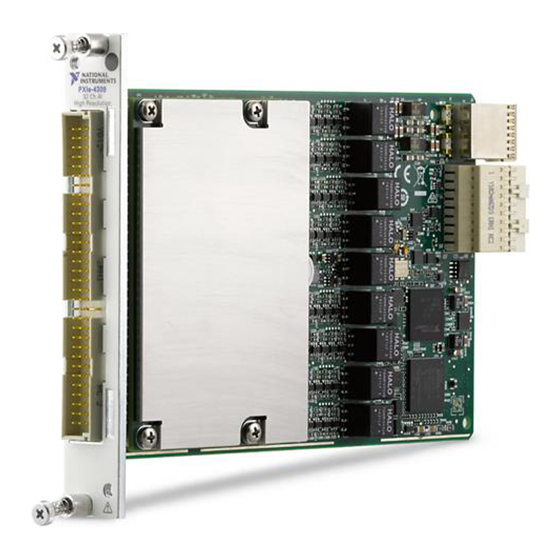

National Instruments PXIe-4309 Calibration Procedure

32 ch (8 adc), 2 ms/s, 18 - 28 bit, flexible resolution pxi analog input module
Hide thumbs Also See for PXIe-4309:
Table of Contents

Advertisement

Quick Links

Download this manual
CALIBRATION PROCEDURE
PXIe-4309
32 Ch (8 ADC), 2 MS/s, 18 - 28 bit, Flexible Resolution PXI Analog Input
Module
This document contains the verification and adjustment procedure for the PXIe-4309 module.
To maintain forced air cooling in the PXI Express system, refer to the
Note
Maintain Forced-Air Cooling Note to Users.
Contents
Software.................................................................................................................................... 1
Documentation.......................................................................................................................... 2
Test Equipment......................................................................................................................... 3
Test Conditions......................................................................................................................... 4
Initial Setup............................................................................................................................... 4
Self Calibration................................................................................................................. 4
Verification ............................................................................................................................... 5
DC Offset Accuracy ......................................................................................................... 6
DC Voltage Accuracy....................................................................................................... 9
Adjustment................................................................................................................................ 13
EEPROM Update ..................................................................................................................... 16
Reverification ........................................................................................................................... 17
Specifications............................................................................................................................ 17
Worldwide Support and Services ............................................................................................. 17

Software

Calibrating the PXIe-4309 requires the installation of NI-DAQmx on the calibration system.
Driver support for calibrating the PXIe-4309 was first available in NI-DAQmx 17.1. For the list
of devices supported by a specific release, refer to the NI-DAQmx Readme, available on the
version-specific download page or installation media.
You can download NI-DAQmx from
LabWindows™/CVI™, C/C++, C#, and Visual Basic .NET. When you install NI-DAQmx, you
only need to install support for the application software that you intend to use.
No other software is required to verify the operation of the TB-4309 (ST), TB-4309 (MT), or
CAL-4309.
ni.com/downloads
. NI-DAQmx supports LabVIEW,

Advertisement

Table of Contents
loading

Related Manuals for National Instruments PXIe-4309

Summary of Contents for National Instruments PXIe-4309

  • Page 1: Table Of Contents

    Calibrating the PXIe-4309 requires the installation of NI-DAQmx on the calibration system. Driver support for calibrating the PXIe-4309 was first available in NI-DAQmx 17.1. For the list of devices supported by a specific release, refer to the NI-DAQmx Readme, available on the version-specific download page or installation media.

  • Page 2: Documentation

    Documentation Consult the following documents for information about the PXIe-4309, NI-DAQmx, and your application software. All documents are available on , and help files install with the ni.com software. PXIe-4309 and TB-4309 (ST)/TB-4309 (MT) Getting Started Guide and Terminal Block Specifications NI-DAQmx driver software installation and hardware setup.

  • Page 3: Test Equipment

    Test Equipment Table 1 lists the equipment recommended for the performance verification and adjustment procedures of the PXIe-4309. If the recommended equipment is not available, select a substitute using the requirements listed in Table 1. Table 1. Recommended Equipment for PXIe-4309 Verification and Adjustment...

  • Page 4: Test Conditions

    The following setup and environmental conditions are required to ensure the PXIe-4309 meets published specifications. • Keep connections to the PXIe-4309 as short as possible. Long cables and wires act as antennas, picking up extra noise that can affect measurements. •...

  • Page 5: Verification

    Select My System»Devices and Interfaces, and then select the PXIe-4309 device to self calibrate. Right-click the device and select Self-Calibrate. Once self-calibration is completed, maintain ambient temperature within Note ±1 °C of the self-calibration temperature. Verification The following procedures describe the sequence of operation and provide test points required to verify the PXIe-4309.

  • Page 6: Dc Offset Accuracy

    Short input channels 0 through 31. Depending on the terminal block used for verification, refer to step a or b for specifics about how to short the input channels of the PXIe-4309. CAL-4309. Connect the double banana plug shorting bar to the input of the CAL-4309 as shown in Figure 1.
  • Page 7 Figure 2. PXIe-4309 DC Offset Verification Setup Using the TB-4309 (ST) TB–4309 FOR PATENTS: NI.COM/PATENTS COPYRIGHT 2016 REF+ REF– AI28– AI29– AI30– AI31– AI28+ AI29+ AI30+ AI31+ AI12– AI13– AI14– AI15– AI12+ AI13+ AI14+ AI15+ AI20– AI21– AI22– AI23– AI20+...
  • Page 8 Auto Zero None Test Limits include residual offset + temperature coefficient for † Verification of channels 0 through 15 provides coverage of each of the 16 independent matching chopping pairs of the PXIe-4309. 8 | ni.com | PXIe-4309 Calibration Procedure...

  • Page 9: Dc Voltage Accuracy

    CAL-4309. Use a low thermal EMF banana-to-banana test lead set to connect the input of the CAL-4309 to the calibrator output as shown in Figure 3. This connects all 32 input channels of the PXIe-4309 to the calibrator output. Attach the CAL-4309 terminal block to the PXIe-4309 module.
  • Page 10 30 VDC TB-4309 (ST). Attach eight individual twisted-pair nickel-plated copper wires to terminals AI0 through AI7 to allow the connection of the PXIe-4309 inputs to the calibrator, one channel at a time. Loosen the top cover screws and remove the top cover.
  • Page 11 Figure 4. PXIe-4309 DC Voltage Verification Setup Using TB-4309 (ST). TB–4309 FOR PATENTS: NI.COM/PATENTS COPYRIGHT 2016 REF+ REF– AI28– AI29– AI30– AI31– AI28+ AI29+ AI30+ AI31+ AI12– AI13– AI14– AI15– AI12+ AI13+ AI14+ AI15+ AI20– AI21– AI22– AI23– AI20+ AI21+...
  • Page 12 *When using the TB-4309 (ST) or TB-4309 (MT) to perform the DC voltage verification, connect only one channel to the calibrator at a time. †Verification of channels 0 through 7 provides coverage of each of the 8 independent signal conditioning paths and ADCs of the PXIe-4309. 12 | ni.com | PXIe-4309 Calibration Procedure...

  • Page 13: Adjustment

    Note CAL-4309 — Use a low thermal EMF banana-to-banana test lead set to connect the internal reference of the PXIe-4309 to the DMM input as shown in Figure 5. Attach the CAL-4309 terminal block to the PXIe-4309 module. Tighten the mounting screw at the top of the terminal block to secure the terminal block to the module.
  • Page 14 30 VDC TB-4309 (ST) — Use a low thermal EMF banana-to-probe test lead set to connect the internal reference of the PXIe-4309 to the DMM input as shown in Figure 6. Loosen the top cover screws and remove the top cover.
  • Page 15 Figure 6. PXIe-4309 Internal Reference Measurement Setup Using TB-4309 (ST) TB–4309 FOR PATENTS: NI.COM/PATENTS COPYRIGHT 2016 REF+ REF– AI28– AI29– AI30– AI31– AI28+ AI29+ AI30+ AI31+ AI12– AI13– AI14– AI15– AI12+ AI13+ AI14+ AI15+ AI20– AI21– AI22– AI23– AI20+ AI21+...

  • Page 16: Eeprom Update

    Use the DMM to measure the internal reference of the PXIe-4309 and record the measurement for future use. Compare the internal reference measurement to the test limits in Table 7. Table 7. Internal Reference Test Limits Lower Test Limit (V) Higher Test Limit (V) 6.741...

  • Page 17: Reverification

    For telephone support outside the United States, visit the Worldwide Offices section of to access the branch office websites, which provide up-to-date contact ni.com/niglobal information, support phone numbers, email addresses, and current events. PXIe-4309 Calibration Procedure | © National Instruments | 17...
  • Page 18 For patents covering NI products/technology, refer to the appropriate location: Help»Patents in your software, the patents.txt file on your media, or the National Instruments Patents Notice at ni.com/patents. You can find information about end-user license agreements (EULAs) and third-party legal notices in the readme file for your NI product. Refer to the Export Compliance Information at ni.com/legal/export-compliance for the NI global trade compliance policy and how to obtain relevant HTS codes, ECCNs, and...
