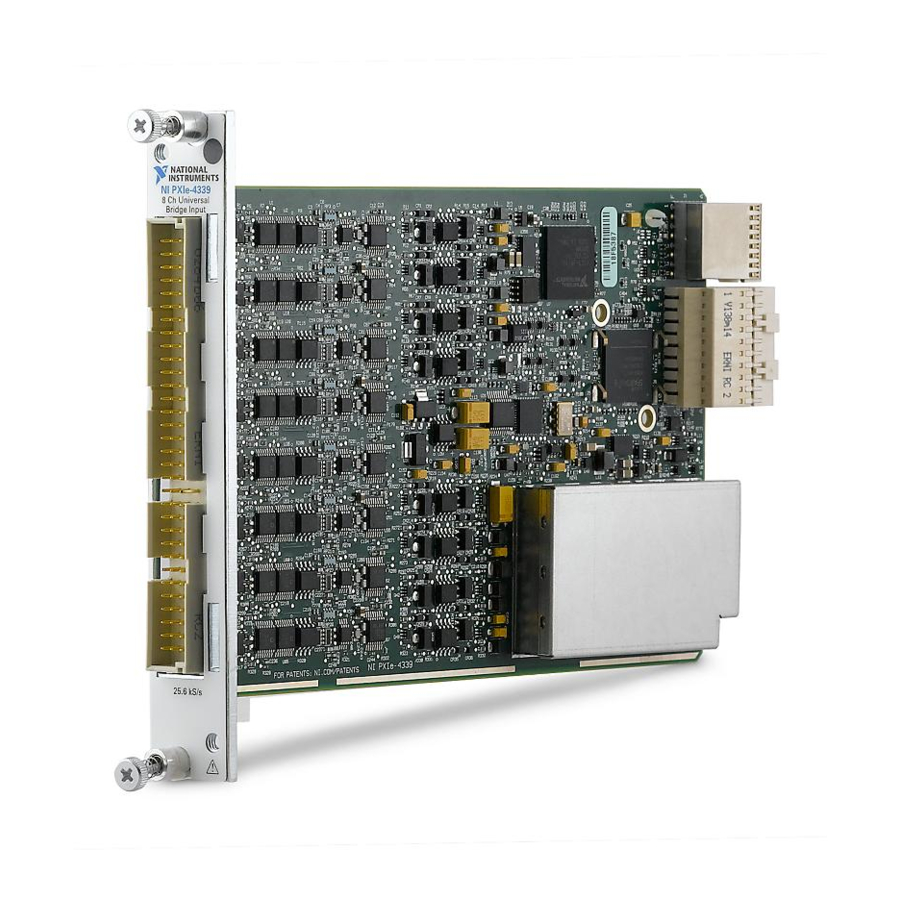

CALIBRATION PROCEDURE
NI PXIe-4339
8 Ch, 24-bit, 25.6 kS/s Universal Bridge Input Module
Français
This document contains the verification and adjustment procedures for the National Instruments
PXIe-4339 module. For more information about calibration solutions, visit
.
calibration
Contents
Software.................................................................................................................................... 1
Documentation.......................................................................................................................... 2
Test Equipment......................................................................................................................... 3
Connecting the TB-4339/B/C........................................................................................... 3
Test Conditions......................................................................................................................... 5
Initial Setup............................................................................................................................... 5
Verification ............................................................................................................................... 5
Voltage Mode Accuracy Verification............................................................................... 6
Ratio Mode Accuracy Verification................................................................................... 7
Adjustment................................................................................................................................ 21
Adjustment Procedure ...................................................................................................... 21
EEPROM Update ..................................................................................................................... 28
Reverification ........................................................................................................................... 29
Specifications............................................................................................................................ 29
Where to Go for Support .......................................................................................................... 29
Software
Calibrating the NI PXIe-4339 requires the installation of NI-DAQmx on the calibration system.
Driver support for calibrating the NI PXIe-4339 was first available in NI-DAQmx 14.5.1. For
the list of devices supported by a specific release, refer to the NI-DAQmx Readme, available on
the version-specific download page or installation media.
You can download NI-DAQmx from
LabWindows™/CVI™, C/C++, C#, and Visual Basic .NET. When you install NI-DAQmx, you
only need to install support for the application software that you intend to use.
Deutsch
ni.com/manuals
ni.com/downloads
ni.com/
. NI-DAQmx supports LabVIEW,

Advertisement

Table of Contents
loading

Related Manuals for National Instruments NI PXIe-4339

Summary of Contents for National Instruments NI PXIe-4339

  • Page 1: Table Of Contents

    Calibrating the NI PXIe-4339 requires the installation of NI-DAQmx on the calibration system. Driver support for calibrating the NI PXIe-4339 was first available in NI-DAQmx 14.5.1. For the list of devices supported by a specific release, refer to the NI-DAQmx Readme, available on the version-specific download page or installation media.

  • Page 2: Software

    Documentation Consult the following documents for information about the NI PXIe-4339, NI-DAQmx, and your application software. All documents are available on , and help files install with ni.com the software. NI PXIe-4339 and TB-4339/B/C Installation Guide and Terminal Block Specifications...

  • Page 3: Test Equipment

    0 to ±10 V with an accuracy of 50 ppm of output or better and a DC offset error of 4 µV or better. PXI Express NI PXIe-1062Q — Chassis Connection TB-4339/B/C — Accessory NI PXIe-4339 Calibration Procedure | © National Instruments | 3...

  • Page 4: Connecting The Tb-4339/B/C

    Connecting the TB-4339/B/C The TB-4339/B/C provides connections for the NI PXIe-4339. Figure 1 shows the pin assignments of the TB-4339/B/C. Always have the NI PXI Express chassis powered off when inserting a Caution module into the chassis. Figure 1. TB-4339/B/C Pin Assignments...
  • Page 5 Complete the following steps to connect the TB-4339/B/C. Install the NI PXIe-4339 and the TB-4339/B/C modules in the NI PXI Express chassis according to the instructions in the NI PXIe-4339 and TB-4339/B/C Installation Guide and Terminal Block Specifications. For voltage verification and adjustment, connect the calibrator to the TB-4339/B/C as shown in Figure 2.

  • Page 6: Test Conditions

    The following setup and environmental conditions are required to ensure the NI PXIe-4339 meets published specifications. • Keep connections to the NI PXIe-4339 as short as possible. Long cables and wires act as antennas, picking up extra noise that can affect measurements. •...

  • Page 7: Voltage Mode Accuracy Verification

    Voltage Mode Accuracy Verification Complete the following steps to verify the voltage mode accuracy of the NI PXIe-4339. Set the calibrator to standby mode (STBY). Connect the calibrator to the TB-4339/B/C as shown in Figure 2. • If the calibrator has a guard connection, leave it disconnected.

  • Page 8: Ratio Mode Accuracy Verification

    Ratio mode verification uses paired channels in voltage mode to measure the excitation voltage of the ratio mode channel that is being verified. The paired channels are connected via internal circuitry on the NI PXIe-4339. The channel pairs are CH0 and CH1, CH2 and CH3, CH4 and CH5, and CH6 and CH7.
  • Page 9 Filter AI1– Gain = 0.25 EX0– Complete the following steps to verify the ratio mode accuracy of the NI PXIe-4339. Set the calibrator to standby mode (STBY). Connect the calibrator to the TB-4339/B/C as shown in Figure 2. • If the calibrator has a guard connection, leave it disconnected.
  • Page 10 Acquire a voltage measurement with the NI PXIe-4339. Create a DAQmx task. Create and configure the AI channels according to the values shown in Table 5. Table 5. AI Voltage Mode Setup Configuration Value Channel Name Dev1/ai0:7 Task AI Voltage...
  • Page 11 For the first test point, set the calibrator to operate mode (OPR) to enable output. 11. Simultaneously acquire a ratiometric (V/V) measurement of the channel being verified and a voltage measurement of the paired channels excitation with the NI PXIe-4339. Create a DAQmx task.
  • Page 12 Test Point value recorded in the previous step. For each channel, compare the averaged ratiometric (V/V) measurement to the high and low limit values from Table 8. If the result is between these values, the device passes the test. 12 | ni.com | NI PXIe-4339 Calibration Procedure...
  • Page 13 14.8 µV/V Vm_ex_ch# -14.8 µV/V 14.8 µV/V (calibrator output)/ Vm_ex_ch# -0.045 Vm_ex_ch# (calibrator Test Point Test Point output)/ (1 + 0.001) - (1 - 0.001) + Vm_ex_ch# 14.8 µV/V 14.8 µV/V NI PXIe-4339 Calibration Procedure | © National Instruments | 13...
  • Page 14 26.7 µV/V 26.7 µV/V Vm_ex_ch# -26.7 µV/V 26.7 µV/V (calibrator output)/ Vm_ex_ch# -0.05994 Vm_ex_ch# (calibrator Test Point Test Point output)/ (1 + 0.001) - (1 - 0.001) + Vm_ex_ch# 26.7 µV/V 26.7 µV/V 14 | ni.com | NI PXIe-4339 Calibration Procedure...
  • Page 15 48.4 µV/V Vm_ex_ch# -48.4 µV/V 48.4 µV/V (calibrator output)/ Vm_ex_ch# -0.12375 Vm_ex_ch# (calibrator Test Point Test Point output)/ (1 + 0.001) - (1 - 0.001) + Vm_ex_ch# 48.4 µV/V 48.4 µV/V NI PXIe-4339 Calibration Procedure | © National Instruments | 15...
  • Page 16 13.3 µV/V 13.3 µV/V Vm_ex_ch# -13.3 µV/V 13.3 µV/V (calibrator output)/ Vm_ex_ch# -0.45 Vm_ex_ch# (calibrator Test Point Test Point output)/ (1 + 0.001) - (1 - 0.001) + Vm_ex_ch# 13.3 µV/V 13.3 µV/V 16 | ni.com | NI PXIe-4339 Calibration Procedure...
  • Page 17 156.1 µV/V Vm_ex_ch# -156.1 µV/V 156.1 µV/V (calibrator output)/ Vm_ex_ch# Vm_ex_ch# (calibrator Test Point Test Point output)/ (1 + 0.001) - (1 - 0.001) + Vm_ex_ch# 156.1 µV/V 156.1 µV/V NI PXIe-4339 Calibration Procedure | © National Instruments | 17...
  • Page 18 29.6 µV/V 29.6 µV/V Vm_ex_ch# -29.6 µV/V 29.6 µV/V (calibrator output)/ Vm_ex_ch# -0.09 Vm_ex_ch# (calibrator Test Point Test Point output)/ (1 + 0.001) - (1 - 0.001) + Vm_ex_ch# 29.6 µV/V 29.6 µV/V 18 | ni.com | NI PXIe-4339 Calibration Procedure...
  • Page 19 35.6 µV/V Vm_ex_ch# -35.6 µV/V 35.6 µV/V (calibrator output)/ Vm_ex_ch# -0.18 Vm_ex_ch# (calibrator Test Point Test Point output)/ (1 + 0.001) - (1 - 0.001) + Vm_ex_ch# 35.6 µV/V 35.6 µV/V NI PXIe-4339 Calibration Procedure | © National Instruments | 19...
  • Page 20 53.2 µV/V 53.2 µV/V Vm_ex_ch# -53.2 µV/V 53.2 µV/V (calibrator output)/ Vm_ex_ch# -0.45 Vm_ex_ch# (calibrator Test Point Test Point output)/ (1 + 0.001) - (1 - 0.001) + Vm_ex_ch# 53.2 µV/V 53.2 µV/V 20 | ni.com | NI PXIe-4339 Calibration Procedure...
  • Page 21 624 µV/V Vm_ex_ch# -624 µV/V 624 µV/V (calibrator output)/ Vm_ex_ch# Vm_ex_ch# (calibrator Test Point Test Point output)/ (1 + 0.001) - (1 - 0.001) + Vm_ex_ch# 624 µV/V 624 µV/V NI PXIe-4339 Calibration Procedure | © National Instruments | 21...

  • Page 22: Adjustment

    The following performance adjustment procedure describes the sequence of operation required to adjust the NI PXIe-4339. Adjustment Procedure Complete the following steps to adjust the accuracy of the NI PXIe-4339. Set the calibrator to standby mode (STBY). Connect the calibrator to the TB-4339/B/C as shown in Figure 2.
  • Page 23 Appropriate Excitation Setting from the corresponding row in Table 17 Table 17. Ratio Mode (±0.01 V/V Range) Range (V/V) Excitation Setting (V) Calibrator Output (V) 0.01 -0.01 2.75 0.02475 -0.02475 0.01 -0.01 3.33 0.02997 -0.02997 NI PXIe-4339 Calibration Procedure | © National Instruments | 23...
  • Page 24 16. Repeat steps 10 through 15 using values from Table 18 through Table 24. Table 18. Ratio Mode (±0.02 V/V Range) Range (V/V) Excitation Setting (V) Calibrator Output (V) 0.02 -0.02 2.75 0.0495 -0.0495 0.02 -0.02 3.33 0.05994 -0.05994 24 | ni.com | NI PXIe-4339 Calibration Procedure...
  • Page 25 Table 19. Ratio Mode (±0.05 V/V Range) Range (V/V) Excitation Setting (V) Calibrator Output (V) 0.05 -0.05 2.75 0.12375 -0.12375 0.05 -0.05 3.33 0.14985 -0.14985 0.05 -0.05 0.225 -0.225 0.05 -0.05 0.3375 -0.3375 NI PXIe-4339 Calibration Procedure | © National Instruments | 25...
  • Page 26 Excitation Setting (V) Calibrator Output (V) 0.05 -0.05 0.45 -0.45 Table 20. Ratio Mode (±1 V/V Range) Range (V/V) Excitation Setting (V) Calibrator Output (V) 2.75 2.475 -2.475 3.33 2.997 -2.997 -4.5 6.75 -6.75 26 | ni.com | NI PXIe-4339 Calibration Procedure...
  • Page 27 0.072 -0.072 0.04 -0.04 0.09 -0.09 Table 22. Ratio Mode (±0.08 V/V Range) Range (V/V) Excitation Setting (V) Calibrator Output (V) 0.08 -0.08 0.625 0.045 -0.045 0.08 -0.08 0.072 -0.072 NI PXIe-4339 Calibration Procedure | © National Instruments | 27...
  • Page 28 0.08 -0.08 0.18 -0.18 Table 23. Ratio Mode (±0.2 V/V Range) Range (V/V) Excitation Setting (V) Calibrator Output (V) -0.2 0.625 0.1125 -0.1125 -0.2 0.18 -0.18 -0.2 0.27 -0.27 -0.2 0.36 -0.36 28 | ni.com | NI PXIe-4339 Calibration Procedure...
  • Page 29 -5.4 -7.2 17. Call the 4339 instance of the DAQmx Adjust SC Express Calibration function with the following parameters: calhandle in: calhandle output from DAQmx Initialize External Calibration action: commit NI PXIe-4339 Calibration Procedure | © National Instruments | 29...

  • Page 30: Eeprom Update
