Delta PMT-36V350W1A Series Assembly & Installation

TECHNICAL DATASHEET

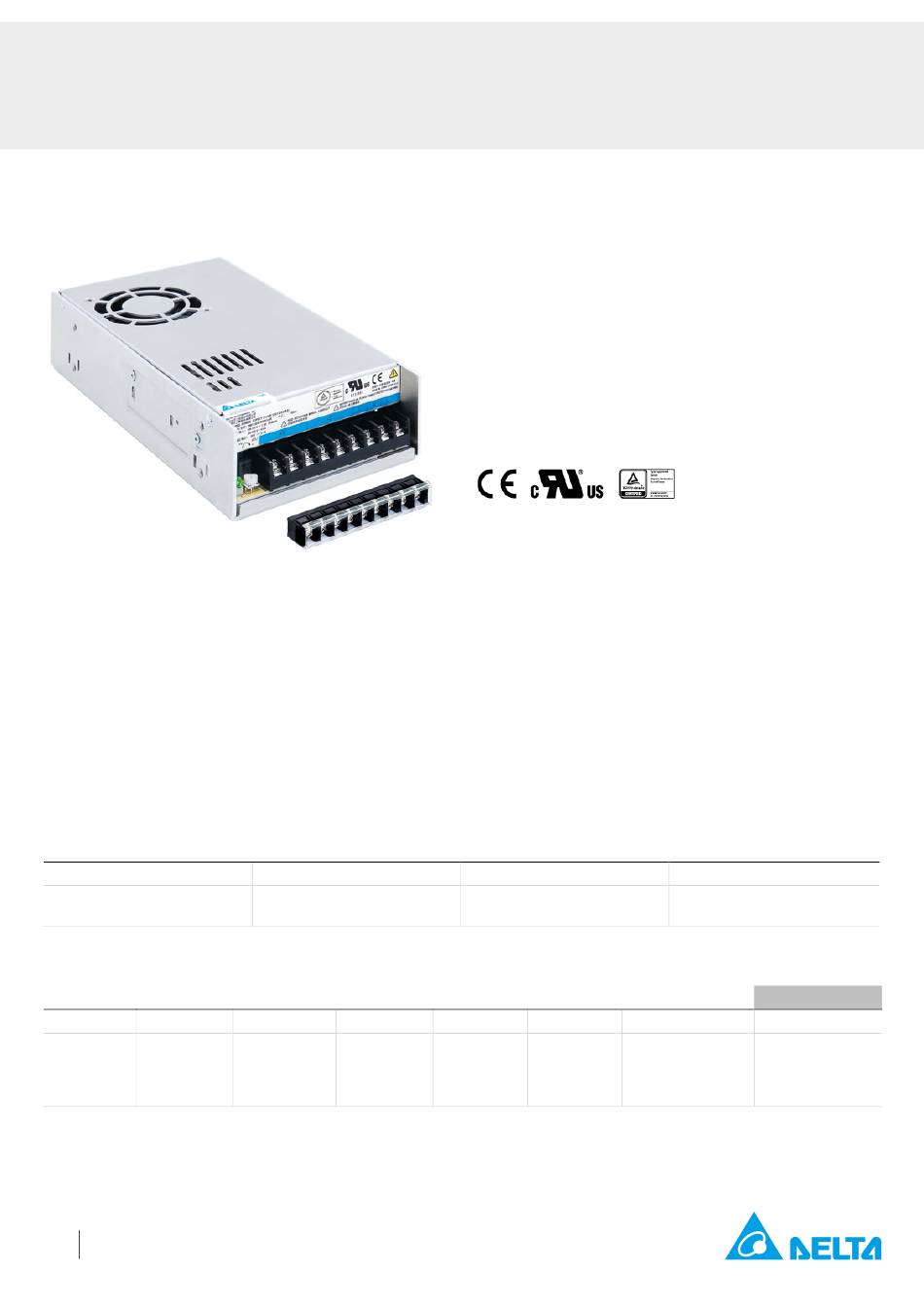

PMT Panel Mount Power Supply
36V 350W 1 Phase / PMT-36V350W1A
General Description
The new PMT series of panel mount power supplies is the latest offering from one of the world's largest power supply manufacturers
and solution providers - Delta.
from -10°C to +70°C and can withstand shock and vibration (in accordance to IEC 60068-2-27 and IEC 60068-2-6 respectively). In
addition to features like overvoltage and overload protections, Delta's PMT series of panel mount power supplies is unlike many other
brands in the same price level. The PMT series is designed for cost competitive markets without compromising the quality of the
components and product specifications. The series of products has an expected life time of 10 years and will have no output power de-
rating from 100Vac to 132Vac & 200Vac to 264Vac.
Model Information
PMT Panel Mount Power Supply
Model Number
PMT-36V350W1A☐
Model Numbering
PM T –
Panel Mount Product Type
T – Enclosed
*Options
**For Terminal Block
All parameters are specified at 25°C ambient and AC input unless otherwise indicated.
1
www.DeltaPSU.com (April 2015, Rev. 01)
PMT-36V350W1A☐ offers a nominal output voltage of 36V with a wide operating temperature range
Input Voltage Range
90-132Vac, 180-264Vac
(Selectable by Switch)
36V
350W
Output Voltage Output Power Single Phase No PFC
□
PMT
Highlights & Features
– AC input range selectable by switch
– Full aluminium casing for light weight and corrosion resistant
handling
– Built-in automatic fan speed control circuit
– MTBF > 700,000 hrs. as per Telcordia SR-332
– Short Circuit / Overvoltage / Overload / Over Temperature
Protections
Safety Standards
CB Certified for worldwide use
Model Number:
Unit Weight:
Dimensions (L x W x D):
Output Voltage
36Vdc
1 A
PMT-36V350W1A☐
0.83 kg
215 x 115 x 50 mm
Output Current
9.70A
CC Code**
□ □
Connector Type Blank – Without
connector cover
R – Terminal Block
A – With connector
K – Front Face*
cover
