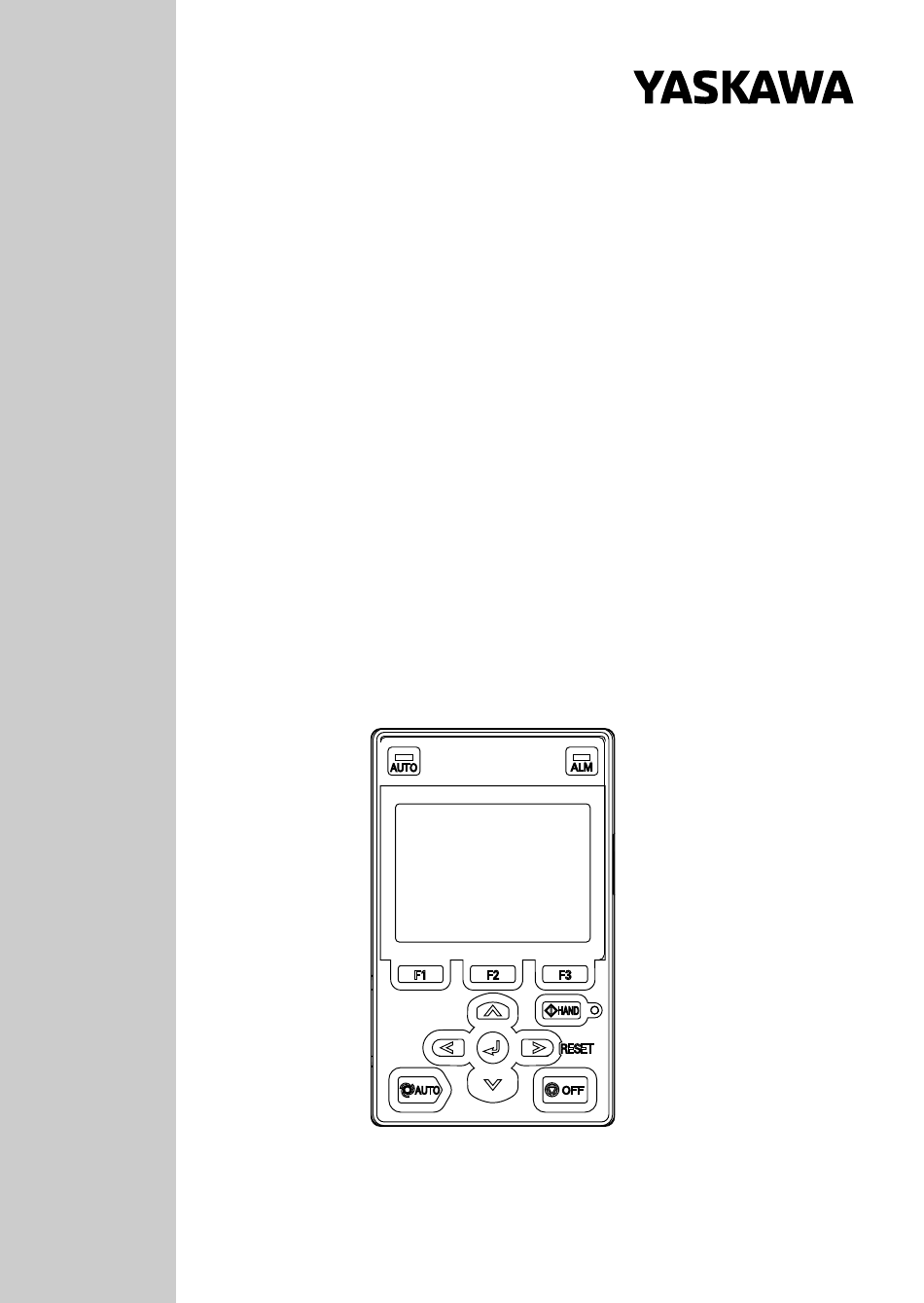

- Page 1 YASKAWA AC Drive Option HOA Keypad Installation Manual Type: JVOP-KPLCB04AxB To properly use the product, read this manual thoroughly and retain for easy reference, inspection, and maintenance. Ensure the end user receives this manual. MANUAL NO. TOEPC7306000BA...
- Page 2 This Page Intentionally Blank YASKAWA TOEPC7306000BA HOA Keypad Installation Manual...
-
Page 3: Table Of Contents
Make the Initial Settings ......31 YASKAWA TOEPC7306000BA HOA Keypad Installation Manual... - Page 4 Revision History ....... . . 60 YASKAWA TOEPC7306000BA HOA Keypad Installation Manual...
-
Page 5: Preface And Safety
Refer to the drive manuals for more information. ◆ Glossary • Drive: – YASKAWA AC Drive HV600 • Keypad: YASKAWA AC Drive Option HOA Keypad ◆ Registered Trademarks • Company names and product names mentioned in this manual are trademarks of those companies. -
Page 6: Supplemental Safety Information
• If you damage or lose manuals, contact a Yaskawa representative or the nearest Yaskawa sales office shown on the rear cover of the manual, and tell them the document number on the front cover to order new copies. -
Page 7: Overview
Make sure that the model number on the option nameplate and the model shown in the purchase order are the same. Immediately contact the distributor where you purchased the option or the Yaskawa sales office about problems with the option. YASKAWA TOEPC7306000BA HOA Keypad Installation Manual... -
Page 8: Keypad: Names And Functions
4 Keypad: Names and Functions ◆ Option Package Contents Option Contents Quantity HOA Keypad Installation Manual Keypad: Names and Functions Figure 4.1 Keypad YASKAWA TOEPC7306000BA HOA Keypad Installation Manual... - Page 9 The OFF key has highest priority. Push stop the motor even when a Run command is active at an external Run command source. Set o2-02 = 0 [STOP Key Function Selection = Disabled] to disable priority. YASKAWA TOEPC7306000BA HOA Keypad Installation Manual...
- Page 10 (USB standard 2.0, type A - mini-B) to connect the keypad to a PC. Uses an RJ-45 8-pin straight through UTP CAT5e RJ-45 extension cable or keypad connector to connect to the Connector drive. YASKAWA TOEPC7306000BA HOA Keypad Installation Manual...
-
Page 11: Auto Led And Hand Led Indications
Table 4.2 AUTO LED and HAND LED Indications AUTO HAND Status OFF Mode HAND Mode Long HAND Mode blink • When the Frequency Reference is 0 or during (50% deceleration duty) • During PI Sleep Double HAND Mode blink YASKAWA TOEPC7306000BA HOA Keypad Installation Manual... - Page 12 • When the Frequency Reference is 0 or during (50% deceleration duty) • During PI Sleep Double AUTO Mode blink When an MFDI sends a Fast Stop signal to stop the drive Figure 4.2 AUTO LED and HAND LED Timing Status YASKAWA TOEPC7306000BA HOA Keypad Installation Manual...
-
Page 13: Installation Procedure
If you bend the cables too much, it can break the wires and loosen connections. Note: Use Yaskawa connection cables or recommended cables only. Incorrect cables can cause the drive or option to function incorrectly. ◆... -
Page 14: Reattach The Keypad
Figure 5.2 Reattach the Keypad ◆ Connect the Keypad from a Remote Location Use the information in Table 5.1 to install the keypad in the best location for your application. YASKAWA TOEPC7306000BA HOA Keypad Installation Manual... -
Page 15: Optional Items
192-933-002) Note: Installation support sets are sold separately. If there are weld studs inside the control panel, use installation support set B. Contact Yaskawa or your nearest sales representative to make an order. NOTICE Do not let unwanted objects, for example metal shavings or wire clippings, fall into the drive during drive installation. - Page 16 • M3 screws: 6 mm (0.24 in) depth Phillips recessed pan head machine screws (2) Part numbers for the U.S.A. are UWR0051 and UWR0052. Contact Yaskawa or your nearest sales representative for more information. YASKAWA TOEPC7306000BA HOA Keypad Installation Manual...
-
Page 17: External Keypad Dimensions
Minimum bending radius NOTICE Damage to Equipment. Do not bend the communication cables more than the bend radius specifications. If you bend the cables too much, it can break the wires and loosen connections. YASKAWA TOEPC7306000BA HOA Keypad Installation Manual... -
Page 18: Procedure
Install to the Outside of a Control Panel Use the panel cut-out dimensions in Figure 5.4 to cut an opening in the control panel for the keypad. (0.87) Figure 5.4 Panel Cut-Out Dimensions to Attach Outside of Control Panel YASKAWA TOEPC7306000BA HOA Keypad Installation Manual... - Page 19 Use M3 screws (6 mm (0.24 in) depth cross-recessed pan head screws) to attach the keypad from the inside. Tighten the screws to a tightening torque of 0.49 N∙m to 0.73 N∙m (4.34 in∙lb to 6.46 in∙lb). YASKAWA TOEPC7306000BA HOA Keypad Installation Manual...
- Page 20 5 Installation Procedure A - Keypad C - Enclosure panel B - M3 screws D - Screw mounting hole Figure 5.6 Mount to the Outside of Control Panel YASKAWA TOEPC7306000BA HOA Keypad Installation Manual...
- Page 21 Drive to the Keypad Install to the Inside of a Control Panel To attach the keypad inside of the control panel, you must purchase an installation support set, which is sold separately. Contact YASKAWA TOEPC7306000BA HOA Keypad Installation Manual...
- Page 22 5 Installation Procedure Yaskawa or your nearest sales representative to order mounting brackets and mounting hardware. Note: • The installation procedure and panel cut-out dimensions are the same for mounting brackets A and B. • Use a gasket between the control panel and the keypad in environments with a large quantity of dust or other unwanted airborne material.
- Page 23 Use the screws supplied with the mounting bracket, and attach the keypad to the mounting bracket. Use the screws supplied with the installation support set, and tighten them to a tightening torque of 0.49 to 0.73 N∙m (4.34 to 6.46 in∙lb). YASKAWA TOEPC7306000BA HOA Keypad Installation Manual...
- Page 24 Position the mounting bracket to which the keypad has been attached in the control panel, and use the screws to mount it from the outside. Tighten the screws to a tightening torque of 0.98 to 1.33 N∙m (8.67 to 11.77 in∙lb). YASKAWA TOEPC7306000BA HOA Keypad Installation Manual...
- Page 25 5 Installation Procedure A - M4 screw B - Enclosure panel Figure 5.11 Mount Mounting Bracket to the Interior of the Control Panel YASKAWA TOEPC7306000BA HOA Keypad Installation Manual...
- Page 26 A - Remote control D - Keypad extension cable E - Cable connector B - Communications connector C - Drive Figure 5.12 Use the Remote Control Extension Cable to Connect the Drive to the Keypad YASKAWA TOEPC7306000BA HOA Keypad Installation Manual...
-
Page 27: Replace The Keypad Battery
The performance life estimate of a new battery is: • Ambient temperature 20 °C (68 °F): 5 years • Ambient temperature -10 °C to +50 °C (14 °F to 122 °F): 3.5 years De-energize the drive and remove the keypad. YASKAWA TOEPC7306000BA HOA Keypad Installation Manual... - Page 28 • The battery cover side is the positive pole. Make sure that the polarity is correct when you put the battery in the keypad. • Discard the used battery as specified by local regulations. YASKAWA TOEPC7306000BA HOA Keypad Installation Manual...
-
Page 29: Check After Energizing The Drive
Install the keypad on the drive. Check after Energizing the Drive Examine the items in Table 6.1 after you energize the drive. The keypad will show these screens depending on the drive status. YASKAWA TOEPC7306000BA HOA Keypad Installation Manual... - Page 30 (Home) from a different screen than the HOME screen. Note: Make sure that you use a keypad with FLASH number 1004 or later. Keypads with FLASH numbers 1003 and earlier will not show characters correctly. YASKAWA TOEPC7306000BA HOA Keypad Installation Manual...
-
Page 31: Make The Initial Settings
Initial Setup screen each time the drive is energized. If you select [NO], the keypad will not show the Initial Setup screen each time the drive is energized, starting with the next time. Push (Home). The display shows the HOME screen. YASKAWA TOEPC7306000BA HOA Keypad Installation Manual... -
Page 32: Home Screen Display Selection
• When o1-40 [Home display selection] is set to “Custom Monitor”, and there is more than one screen, use switch between screens. ■ Show the Standard Monitor Push to show the standard monitor (Ux-xx). Push (HOME) to go back to the HOME screen. YASKAWA TOEPC7306000BA HOA Keypad Installation Manual... -
Page 33: Show The Monitors
This section shows how to show the standard monitors (Ux-xx). Push (Home) to show the HOME screen. Note: • When the drive is in HOME Mode, the screen shows [Home] in the upper right-hand corner of the screen. YASKAWA TOEPC7306000BA HOA Keypad Installation Manual... - Page 34 6 Check after Energizing the Drive • If the screen does not show [Home] for , push (Back), and then push to show [Home]. Push (Menu). Push to select [Monitors], then push Push to select [Standard Monitor], then push YASKAWA TOEPC7306000BA HOA Keypad Installation Manual...
-
Page 35: Change Parameter Settings
(Home) to show the HOME screen. Note: • When the drive is in HOME Mode, the screen shows [Home] in the upper right-hand corner of the screen. • If [Home] is not shown above the , push (Back). YASKAWA TOEPC7306000BA HOA Keypad Installation Manual... - Page 36 6 Check after Energizing the Drive Push (Menu). Push to select [Parameters], then push Push to select [C Tuning], then push YASKAWA TOEPC7306000BA HOA Keypad Installation Manual...
- Page 37 [C1 Accel & Decel Time], then push Push to select C1-01, then push Push to select the specified digit, then push to select the correct number. • Push [Default] to set the parameters to factory defaults. YASKAWA TOEPC7306000BA HOA Keypad Installation Manual...
-
Page 38: Save A Backup Of Parameters
PWEr [DWEZ Password Missmatch]. Push (Home) to show the HOME screen. Note: • When the drive is in HOME Mode, the screen shows [Home] in the upper right-hand corner of the screen. YASKAWA TOEPC7306000BA HOA Keypad Installation Manual... - Page 39 • If the screen does not show [Home] for , push (Back), and then push to show [Home]. Push (Menu). Push to select [Parameter Backup/ Restore], then push Push to select the items to back up, then push YASKAWA TOEPC7306000BA HOA Keypad Installation Manual...
-
Page 40: Write Backed-Up Parameters To The Drive
You can back up parameters on the keypad and write them to different drives. Note: • Always stop the drive before you start to restore the parameter backups. • The drive will not accept a Run command while it restores parameters. YASKAWA TOEPC7306000BA HOA Keypad Installation Manual... - Page 41 • When the drive is in HOME Mode, the screen shows [Home] in the upper right-hand corner of the screen. • If the screen does not show [Home] for , push (Back), and then push to show [Home]. Push (Menu). Push to select [Parameter Backup/ Restore], then push YASKAWA TOEPC7306000BA HOA Keypad Installation Manual...
- Page 42 Push to select [Restore (keypad → drive)], then push Push to select the backed-up parameter data, then push The keypad will show the “End” message when the write process is complete. YASKAWA TOEPC7306000BA HOA Keypad Installation Manual...
-
Page 43: Verify Keypad Parameters And Drive Parameters
• When the drive is in HOME Mode, the screen shows [Home] in the upper right-hand corner of the screen. • If the screen does not show [Home] for , push (Back), and then push to show [Home]. YASKAWA TOEPC7306000BA HOA Keypad Installation Manual... - Page 44 6 Check after Energizing the Drive Push (Menu). Push to select [Parameter Backup/ Restore], then push Push to select the item to verify, then push YASKAWA TOEPC7306000BA HOA Keypad Installation Manual...
-
Page 45: Delete Parameters Backed Up To The Keypad
Push one of the keys to return to the screen in Step 6. ◆ Delete Parameters Backed Up to the Keypad This procedure deletes the parameters that were backed up to the keypad. YASKAWA TOEPC7306000BA HOA Keypad Installation Manual... - Page 46 • When the drive is in HOME Mode, the screen shows [Home] in the upper right-hand corner of the screen. • If the screen does not show [Home] for , push (Back), and then push to show [Home]. Push (Menu). Push to select [Parameter Backup/ Restore], then push YASKAWA TOEPC7306000BA HOA Keypad Installation Manual...
- Page 47 Push to select [Delete (keypad)], then push Push to select the data to delete, then push The keypad will show the “End” message when the write process is complete. YASKAWA TOEPC7306000BA HOA Keypad Installation Manual...
-
Page 48: Check Modified Parameters
• The keypad will show [Home] in the top right corner when the HOME screen is active. • If [Home] is not shown on , push (Back) to show [Home] Push (Menu). Push to select [Modified Param / Fault Log], then prush YASKAWA TOEPC7306000BA HOA Keypad Installation Manual... - Page 49 6 Check after Energizing the Drive Push to select [Modified Parameters], then push Push Push to show the parameter to check. YASKAWA TOEPC7306000BA HOA Keypad Installation Manual...
- Page 50 To re-edit a parameter, push , select the parameter to edit, then push Push to select the digit, then push to change the value. When you are done changing the value, push The parameter revision procedure is complete. YASKAWA TOEPC7306000BA HOA Keypad Installation Manual...
-
Page 51: Set Backlight To Automatically Turn Off
• The keypad will show [Home] in the top right corner when the HOME screen is active. • If [Home] is not shown on , push (Back) to show [Home] Push (Menu). Push to select [Diagnostic Tools], then push YASKAWA TOEPC7306000BA HOA Keypad Installation Manual... - Page 52 6 Check after Energizing the Drive Push to select [Backlight], then push Push to select [ON] or [OFF], then push • [ON]: Backlight is always ON • [OFF]: Backlight turns OFF after set length of time. Push (Setup). YASKAWA TOEPC7306000BA HOA Keypad Installation Manual...
- Page 53 6 Check after Energizing the Drive Push Push to select the digit, then push to change the value. When you are done changing the value, push The procedure to set the backlight to turn OFF automatically is complete. YASKAWA TOEPC7306000BA HOA Keypad Installation Manual...
-
Page 54: Show Information About The Drive
• The keypad will show [Home] in the top right corner when the HOME screen is active. • If [Home] is not shown on , push (Back) to show [Home] Push (Menu). Push to select [Diagnostic Tools], then push YASKAWA TOEPC7306000BA HOA Keypad Installation Manual... -
Page 55: Fault Diagnostics And Measures
This section shows fault codes related to the keypad. For information about fault codes that are not in this table, refer to the instruction manual for the drive. YASKAWA TOEPC7306000BA HOA Keypad Installation Manual... - Page 56 Fault the connector on the drive. drive. The connection cable • Remove the keypad and between the drive and then reconnect it. the keypad is • Replace the cable if disconnected. damaged. YASKAWA TOEPC7306000BA HOA Keypad Installation Manual...
-
Page 57: Disposal Instructions
PC functions that format and delete the data may not be sufficient to fully erase the microSD card data. Yaskawa recommends that customers physically destroy the microSD card in a shredder or use data wipe software to fully erase the card. -
Page 58: Weee Directive
95% RH or less (no condensation) Operating Ambient Humidity -20 °C to +70 °C (-4 °F to +158 °F) Storage Ambient Temperature (short-term storage temperature during transport) Indoor (the area without corrosive gas, or dust) Area of Use YASKAWA TOEPC7306000BA HOA Keypad Installation Manual... - Page 59 Description 1000 m (3281 ft) maximum Altitude 10 to under 20 Hz: 1 G (9.8 m/s Vibration 20 to under 55 Hz: 0.6 G (5.9 m/s Approximately Number of 100,000 or less Parameter Reads YASKAWA TOEPC7306000BA HOA Keypad Installation Manual...
-
Page 60: Revision History
Revision History Date of Revision Section Revised Content Publication Number December First Edition 2019 YASKAWA TOEPC7306000BA HOA Keypad Installation Manual... - Page 61 YASKAWA TOEPC7306000BA HOA Keypad Installation Manual...
- Page 62 Therefore, be sure to follow all procedures and submit all relevant documentation according to any and all rules, regulations and laws that may apply. Specifications are subject to change without notice for ongoing product modifications and improvements. © 2019 YASKAWA Electric Corporation MANUAL NO. TOEPC7306000BA <0>-0 Published in Japan December 2019 19-6-21...
