Summary of Contents for Metra Electronics GPC

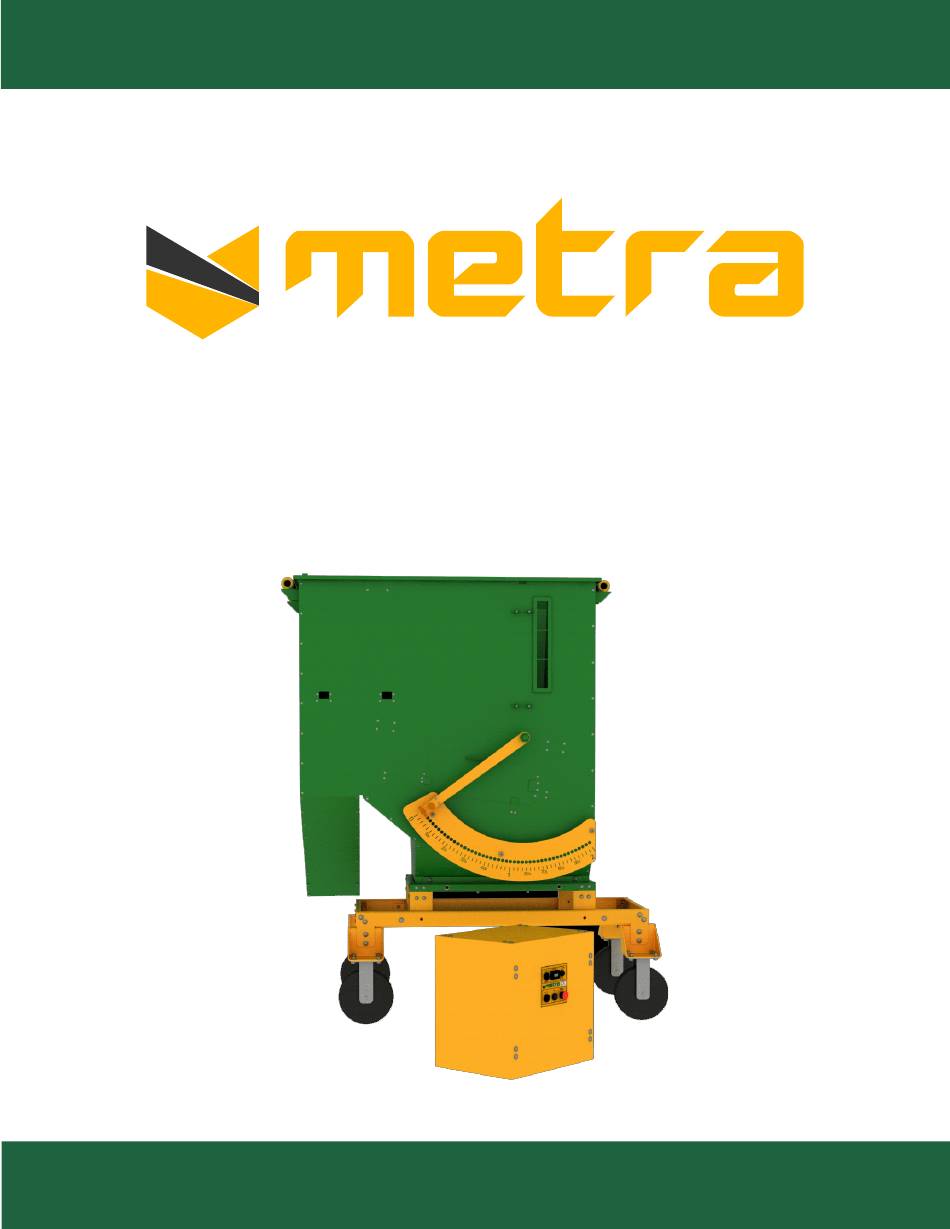

- Page 1 O P E R A T I N G M A N U A L METRA GPC...
-
Page 2: Table Of Contents
CONTENTS Introduction ................................3 Product Overview ..............................3 1. Purpose .................................. 4 2. Basic Technical Specifications ......................... 4 3. Configuration ................................ 5 4. Distinctiv e Features ............................5 5. Operation ................................5 6. Labeling .................................. 6 7. Safety Regulations ............................... 7 8. -
Page 3: Introduction
This document is an Operating Manual (Certificate) supplied with each . It is for familiarizing oneself METRA GPC with the equipment, the safety operation, and acquisition of operating skills. Each person must study this Certificate before installing or operating the Metra ADS Grain Cleaner. This... -
Page 4: Purpose
1.2. Mounting and usage: The METRA GPC mounting is possible both as an attachment to a unit for the entire lineup of Metra Separators and as an independent unit. The usage of the METRA GPC is possible: •... -
Page 5: Configuration
4. Flexible grain pipe – 5 m. 4. DISTINCTIVE FEATURES The METRA GPC is a hopper with an inner grading mesh. The grading mesh is mounted on a removable frame which rotates driven by the gear motor. A frequency converter controls rotation speed. -
Page 6: Labeling
Remember that when operating the METRA GPC the material being fed into the hopper may create excessive pressure. For the removal of excess air, the cover of the METRA GPC is equipped with a duct flange of 300 mm in diameter allowing the excess air to be vented. -
Page 7: Safety Regulations
2. When installing the METRA GPC as a single unit, it is to be mounted on a specially prepared area or bunker. 3. Install feed and discharge conveyor so as to provide a continuous separation process (The conveyors will be available... -
Page 8: Adjustment Procedure
4. In this mode, when properly adjusted, the METRA GPC is able to remove 30% to 60% of the original waste material, depending on the quality of the feed material. - Page 9 12. Check the smoothness of the grading mesh rotation. 13. Set geared motor to the drive shaft. 14. Install all protective casing. 15. Switch on the METRA GPC with no grain supply. Make sure that the grading mesh rotation occurs smoothly without jumps or delays.
-
Page 10: Maintenance
Caution! All work on the METRA GPC cleaning should be carried out only after having verified that the equipment is de-energized. The METRA GPC cleaning should be performed regularly, depending on the pollution, but not less than once every three days. -
Page 11: Warranty
13.2. Warranty interruption: Warranty obligations may be interrupted in the following cases: 1. Discrepancy of the METRA GPC serial number to warranty the serial number fixed in the warranty card and/or other written agreements. METRA GPC parts is detected. 2. If unauthorized penetration into 3. -
Page 12: Certificate Of Sale
13. CERTIFICATE OF SALE METRA GPC - ________________________________________________________________ No. _________________________________________________________________________________ made in accordance with the requirements of specifications TSU 29.3-37090655-001:2010, and is found fit for service. ________________________________ ________________________________ (signature) (print full name) Stamp here 20_____ / ________________ / ___________ (year / month / day) -
Page 13: Storage
14. STORAGE • Storage of the METRA GPC is carried out in a dry & ventilated space. • Rainfall and foreign object precipitation is not allowed. Date Storage Storage Remarks conditions type Accepted for Withdrawn from storage storage... -
Page 14: Repair
15. REPAIR Operating time since the Operating time Reason for Information about Date beginning of after the last repair repair operation period, repair, hours hours...
