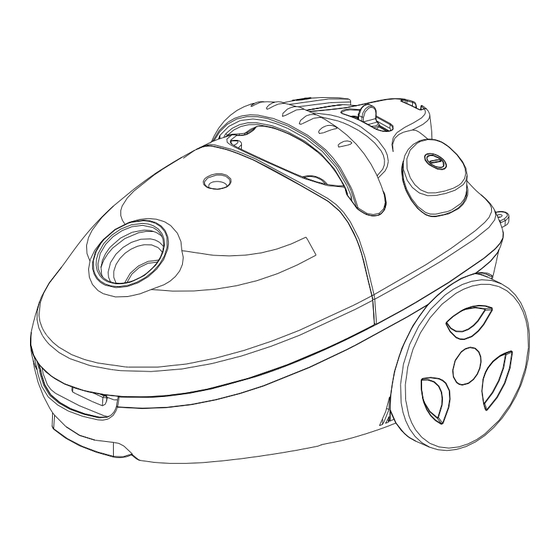

- Page 1 SERVICE MANUAL VACUUM CLEANER MODEL NAME : RC-2200FR...
-
Page 2: Table Of Contents
CONTENTS 1. SPECIFICATIONS…………………………………………………………………… 2 Pages 3 Pages 2. EXTERNAL VIEWS…………………………………………………………………… 3 Pages …………………………………………………………………… 2-1. ASSEMBLY 4 Pages 2-2. MODEL RC-220(Variable Control)………………………………………………………… 5 Pages 3. DIAGRAM…………………………………………………………………………… 5 Pages ……………………………………………………………… 3-1. WIRING DIAGRAM 4. TROUBLE SHOOTING GUIDE……………………………………………………… 6 Pages 8 Pages 5. EXPLODED VIEW AND PARTS LIST……………………………………………… 8 Pages ………………………………………………………………... -
Page 3: Specifications
1. SPECIFICATIONS Model RC-220(Variable Control) RC-220(On/Off Control) Rated Voltage AC 220-240V AC 220-240V Frequency 50/60Hz 50/60Hz Input Watt MAX 1400W MAX 1400W Weight(Body) 4.38Kg 4.38Kg Dimension(LXHXD) 350X280X210mm 350X280X210mm Cord Length Power Control Body Variable Body On/Off Dust Meter Mechanical Mechanical Hose 1.5m 1.5m... -
Page 4: External Views
2. EXTERNAL VIEWS 2-1. ASSEMBLY MODEL PART NAME RC-220 RC-220 (On/Off (Variable Control) Control) ㅇ ㅇ A - DUST METER ㅇ ㅇ B - SWITCH BUTTON ㅇ ㅇ C - CORD REWIND BUTTON ㅇ ㅇ D - POWER CORD ㅇ ㅇ... - Page 5 2-2. MODEL RC-220(Variable Control)
-
Page 6: Model Rc-220(Variable Control)
3. DIAGRAM 3-1. WIRING DIAGRAM ■ MODEL : RC-220 (Variable Control) ■ MODEL :RC-220 (On/Off Control) -
Page 7: Trouble Shooting Guide
4. TROUBLE SHOOTING GUIDE TROUBLE CAUSE COUNTERMEASURE SUCTION POWER FILTER BAG(PAPER OR CLOTH) CHANGE IT WITH NEW ONE IS WEAK IS FULL WITH DUST OR REMOVE THE DUST CLOGGING OR TEAR IN HOSE REMOVE OBSCTACLE OR REPLACE THE HOSE DEFECTIVE MOTOR REPLACE THE MOTOR (SEE 5-4) CLEANER DOES... - Page 8 TROUBLE CAUSE COUNTERMEASURE POWER CORD IS BROKEN REEL SPRING REPLACE IT (SEE 5-5) NOT WOUND UP OF CORD REEL POWER CORD BROKE AWAY REPAIR (SEE 5-5) FROM THE BOBBIN ※ CAUTION : BE CAREFUL WHEN BREAKING UP THE CORD REEL, THE REEL SPRING MAY SPRING OUT OF THE SPRING COVER.
-
Page 9: Exploded View And Parts List
5. EXPLODED VIEW AND PARTS LIST 5-1.BASE ASSEMBLY... -
Page 10: Base Assembly
LIST OF BASE ASSEMBLY PART CODE PART NAME SPECS. Q`YT DAEWOO CHUNLAN BASE ASSEMBLY BASE CLPB-CL152-A01 PP FRONT WHEEL HOLDER CLPB-CL150-A26 ABS PLAIN WASHER CLPB-CL152-B05 Φ4XΦ12X0.8/ZINCIFICATION SCREW TAPPING ST4.0x12PH/A FRONT WHEEL CLPB-CL150-A25 PP+PVC REAL WHEEL CLPB-CL152-A16 PP OUTLET FILTER(1) CLPB-CL152-E05... - Page 11 5-2.FRONT COVER ASSEMBLY...
-
Page 12: Front Cover Assembly
LIST OF FRONT COVER ASSEMBLY PART CODE PART NAME SPECS. Q`YT DAEWOO CHUNLAN FRONT COVER ASSEMBLY FRONT COVER CLPB-CL152-A05 LOCK SPRING CLPB-CL152-B01 FRONT COVER LOCK CLPB-CL152-A10 SEALING RING CLPB-CL152-C04 RUBBER SCREW TAPPING ST3.0x10PH/A BAR DUST RING CLPB-CL150-C12 RUBBER SUCTION HOLDER... - Page 13 5-3.BACK COVER ASSEMBLY...
-
Page 14: Back Cover Assembly
LIST OF BACK COVER ASSEMBLY PART CODE PART NAME SPECS. Q`YT DAEWOO CHUNLAN BACK COVER ASSEMBLY MOTOR COVER CLPB-CL152-A21 SCREW TAPPING ST4.0x16PH/A REAR COVER CLPB-CL152-A02 HANDLE CLPB-CL152-A07 HANDLE COVER CLPB-CL152-A08 SPRING CLPB-CL150-B02 CORD REWINDER KNOB CLPB-CL152-A04 ON/OFF KNOB CLPB-CL152-A03 SPEED CONTROL... -
Page 15: Motor Assembly
5-4.MOTOR ASSEMBLY PART CODE PART NAME SPECS. Q`YT DAEWOO CHUNLAN 1 MOTOR 220-240V/1200-1400W/EFL 2 MOTOR SEALING RING CLPB-CL152-C06 RUBBER 3 MOTOR HOLDER CLPB-CL152-C07 RUBBER... - Page 16 5-5.CORD REEL ASSEMBLY...
-
Page 17: Cord Reel Assembly
LIST OF CORD REEL ASSEMBLY PART CODE PART NAME SPECS. Q`YT DAEWOO CHUNLAN CORD REEL ASSEMBLY SCREW TAPPING ST3.5x10PH/A CORD REWINDER HOLDER CLPB-CL152-A12 BUTTERFLY PATCH CLPB-JX050-B03 SCREW TAPPING ST4.0x8PH/T BIG CUPRUM RING CLPB-JX050-B02 SMALL CUPRUM RING CLPB-JX050-B01 CORD REWINDER A...
