Chapter 1 Motherboard Description

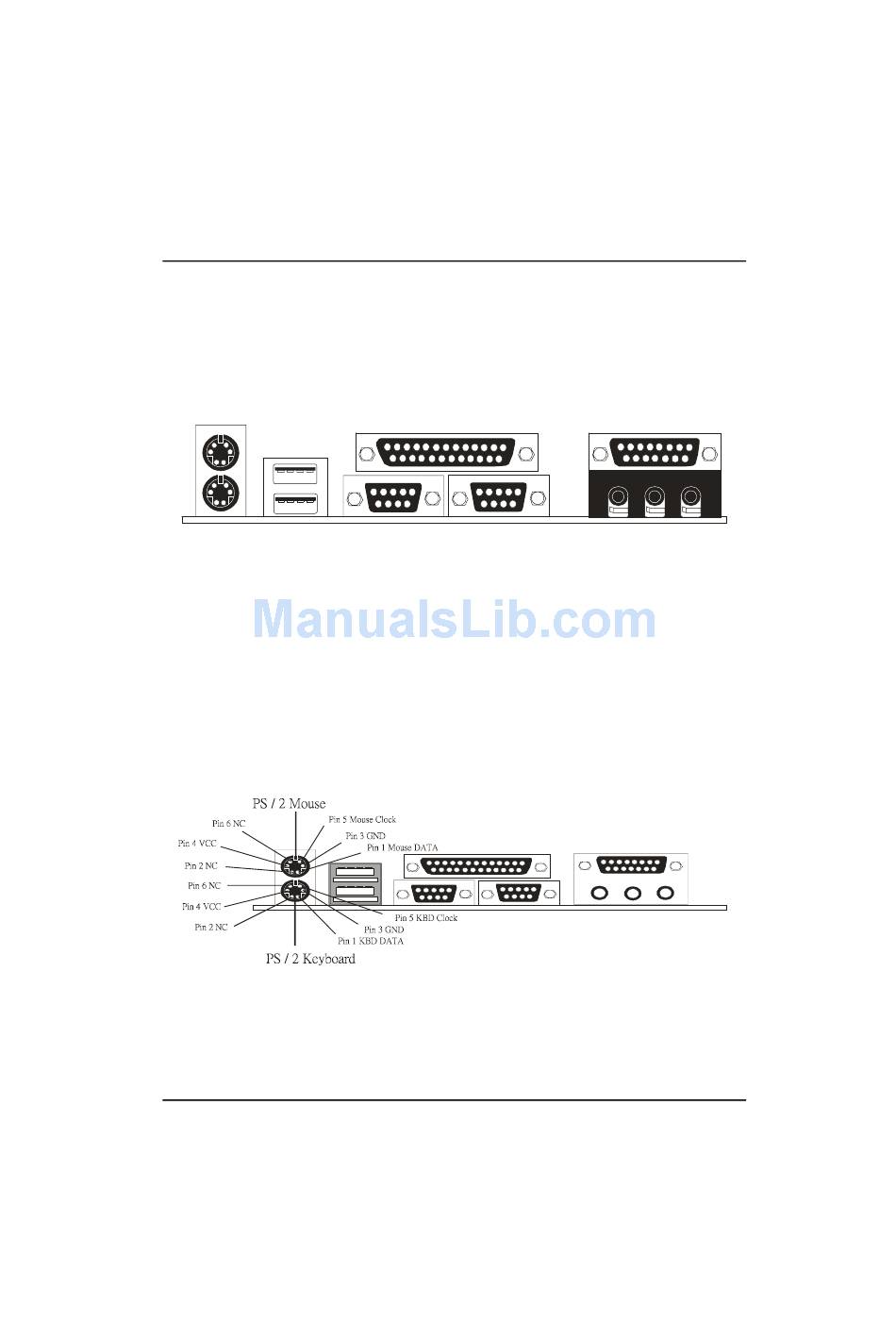

1.7 Peripheral Port

JKBMS1
JPRNT1
J8
PS/2
Mouse
Parallel Game Port
JUSB1
PS/2
USB
COM1 COM2
Speaker Line In Mic
Keyboard
Out In
JCOM1 JCOM2

1.7.1 PS/2 Mouse / Keyboard Connector: JKBMS1

The motherboard provides a standard PS/2 mouse / Keyboard mini DIN connector
for attaching a PS/2 mouse. You can plug a PS/2 mouse / Keyboard directly into
this connector. The connector location and pin definition are shown below:
1-24
