BEA FLY User Manual

PLEASE KEEP FOR FURTHER USE
DESIGNED FOR COLOUR PRINTING

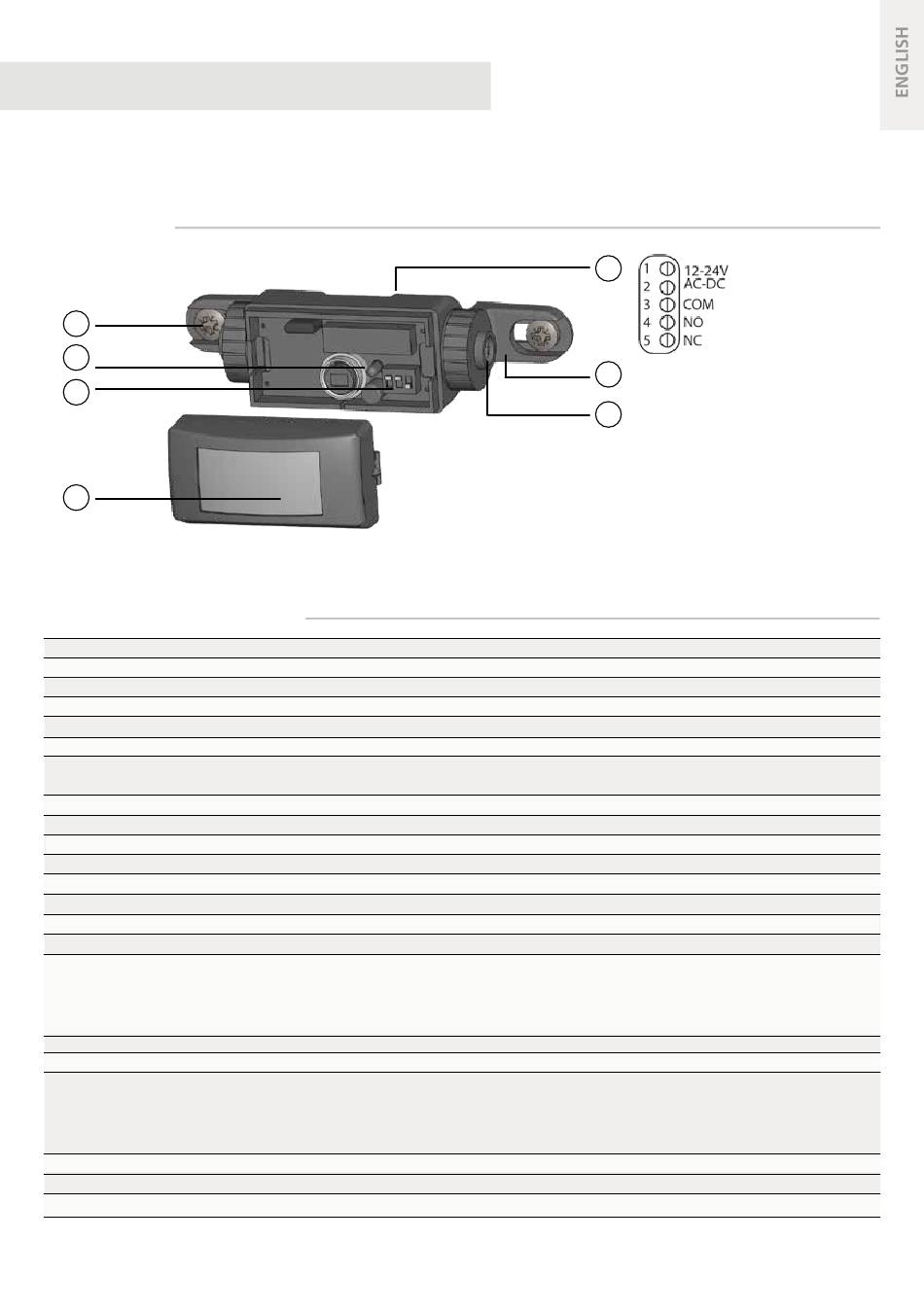

DESCRIPTION
1
2
3
4
TECHNICAL SPECIFICATIONS
Technology :
Optical characteristics:
Maximum Detection area (mounting height: 2.2m):
Minimum Detection area (mounting height: 2.2 m)
Detection mode:
Detection speed:
Light indicator:
Warm up time:
Hold time:
Response time:
Power supply:
Frequency:
Power consumption:
Connection:
Recommended cable section (terminal block):
Standard output:
Max. contact voltage:
Max. contact current:
Max. switching power:
Mounting height:
Temperature range:
Dimensions:
FLY:
FCA:
FSA:
Color (FLY-FCA-FSA):
Length of cable:
Conformity:
* Other use of the device outside of the permitted purpose can not be guaranteed by the manufacturer.

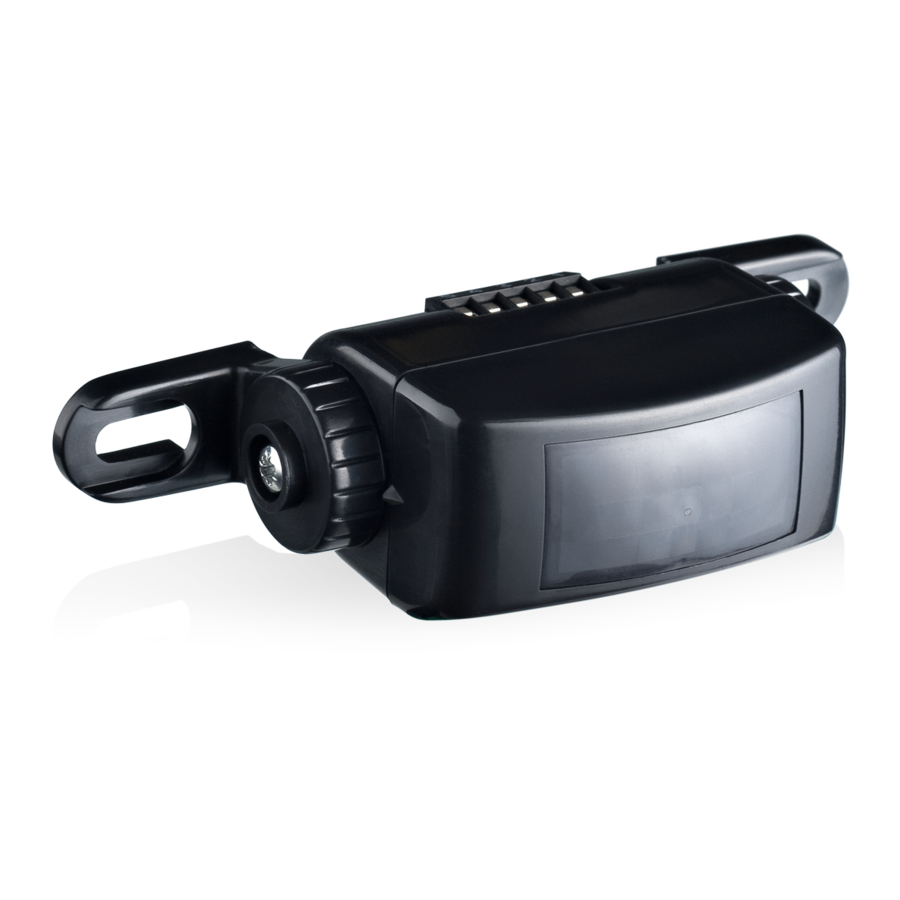

FLY
PASSIVE INFRARED SENSOR FOR AUTOMATIC DOORS*
User's Guide for product version 0202 and higher
See product label for serial number.
passive infrared and microprocessor
P.I.R. with 4 elements, 15 lenses with full independent masking possibilities
2.5 m (W) x 1.5 m (D)
0.5 m (W) x 0.5 m (D)
motion
0.1 to 1.5 m/s
1 red LED:flashes for a few seconds after power-on
LED lights up: sensor detects motion
10 s
0.5 s ou 2 s
< 200 ms
12 VDC - 10% to 24VDC +30% /12 to 24 V AC ±10%
50/60 Hz
< 1 W
terminal block
< 0.5 mm²
relay (free potential contact)
60 V DC / 42 V AC
1A (resistive)
30W (DC) / 42 VA (AC)
3 m max
from -30 °C to +55 °C
101 mm (W) x 41 mm (H) x 27 mm (D)
91 mm (W) x 40 mm (H) x 40 mm (D)
121 mm (W) x 51 mm (H) x 40 mm (D)
anthracite grey
2.5 m
EN 61000-6-2; EN 61000-6-3; EN 50581
Specifications are subject to changes without prior notice.
5
6
7
1. Sensor fixing 5. Terminal block
screw BLACK 6. Bracket
2. LED 7. bracket fixing
3. DIP-switch
4. Lens
Measured in specific conditions.
screw ALU
