Check Timing Gear Backlash; Install Oil Nozzle; Install Timing Gear Cover And Crankshaft Pulley - Toyota 3F-E Repair Manual Supplement

F W
Adhesive
A (14 mm Bolt Head)
B (10 mm Bolt Head)
EItIIIII1J J C (10 mm Bolt Head)

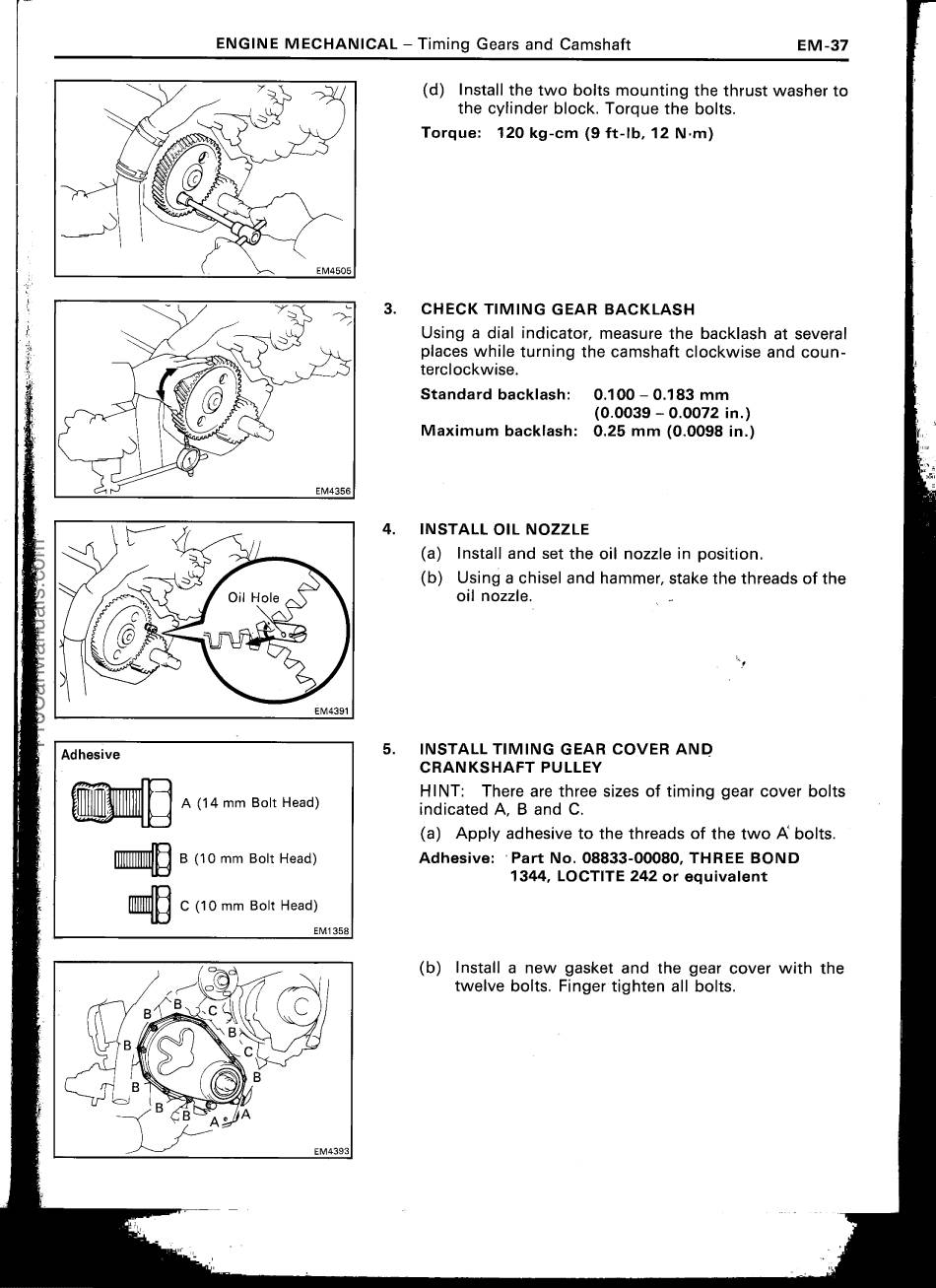

ENGINE MECHANICAL — Timing Gears and Camshaft

3. CHECK TIMING GEAR BACKLASH

EM4356

4. INSTALL OIL NOZZLE

5. INSTALL TIMING GEAR COVER AND
E M 1358
(d) Install the two bolts mounting the thrust washer to
the cylinder block. Torque the bolts.
Torque: 120 kg-cm (9 ft-lb, 12 N•m)
Using a dial indicator, measure the backlash at several
places while turning the camshaft clockwise and coun-
terclockwise.
Standard backlash: 0.100 — 0.183 mm
(0.0039 — 0.0072 in.)
Maximum backlash: 0.25 mm (0.0098 in.)
(a)
Install and set the oil nozzle in position.
(b)
Using a chisel and hammer, stake the threads of the
oil nozzle.
CRANKSHAFT PULLEY
HINT: There are three sizes of timing gear cover bolts
indicated A, B and C.
(a) Apply adhesive to the threads of the two A bolts.
Adhesive: Part No. 08833-00080, THREE BOND
1344, LOCTITE 242 or equivalent
(b) Install a new gasket and the gear cover with the
twelve bolts. Finger tighten all bolts.
EM-37
