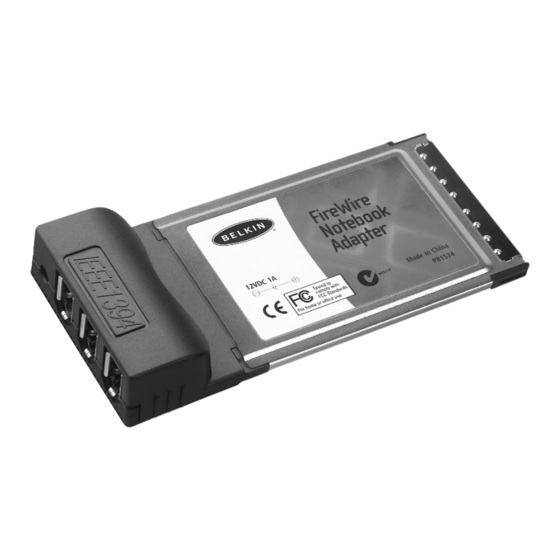

- Page 1 P74414ea_F5U513ea_manual_uk 11-08-2003 12:09 Page 1 FireWire Notebook Adapter Connect your iPod™, camcorder, FireWire®, and Sony® i.LINK® devices to your PC User Manual F5U513ea...
- Page 2 P74414ea_F5U513ea_manual_uk 11-08-2003 12:09 Page 2...
-
Page 3: Table Of Contents
P74414ea_F5U513ea_manual_uk 11-08-2003 12:09 Page 3 Introduction ........1 Overview . - Page 4 P74414ea_F5U513ea_manual_uk 11-08-2003 12:09 Page 4...
-
Page 5: Introduction
P74414ea_F5U513ea_manual_uk 11-08-2003 12:09 Page 1 INTRODUCTION Thank you for purchasing the Belkin FireWire Notebook Adapter (the Adapter). Now you can add three 400Mbps FireWire ports to your Windows 98 SE, Me, 2000, or XP operating system and enjoy the ultrafast speed and... -
Page 6: Overview
P74414ea_F5U513ea_manual_uk 11-08-2003 12:09 Page 2 Specifications • 3 external 6-pin IEEE 1394 ports • OHCI 1.0-compliant • IEEE 1394a 2.0-compliant • Texas Instruments TSB12LV23 OHCI-Lynx 1394 Link Layer Host Controller • Texas Instruments TSB41LV02 Digital to Analog transceiver • Supports 100/200/400Mbps data rates •... -
Page 7: Minimum System Requirements
• 32MB RAM (128MB recommended for video editing) • Windows® 98 SE, Me, 2000, XP • 32-bit Type II CardBus slot (Check your laptop owner’s manual for CardBus slot specifications) Package Contents • Belkin FireWire Notebook Adapter • User Manual... -
Page 8: Hardware Installation
P74414ea_F5U513ea_manual_uk 11-08-2003 12:09 Page 4 HARDWARE INSTALLATION 1. Examine your laptop computer and locate the CardBus slot(s). 2. Insert the Adapter into a free 32-bit Type II CardBus slot. 3. Apply power to the laptop and let Windows start normally. -
Page 9: Windows 98 Se Driver Installation
P74414ea_F5U513ea_manual_uk 11-08-2003 12:09 Page 5 DRIVER INSTALLATION 1. When Windows has finished loading, the “New Hardware Wizard” will launch and display a window that identifies the Adapter as a “Texas Instruments OHCI Compliant IEEE 1394 Host Controller”. Click “Next”. 2. Select “Search for the Best Driver for Your Device (Recommended)”. Click “Next”. -
Page 10: Windows Me Driver Installation
P74414ea_F5U513ea_manual_uk 11-08-2003 12:09 Page 6 DRIVER INSTALLATION 1. When Windows has finished loading, the “New Hardware Wizard” will launch and display a window that identifies the Adapter as a “Texas Instruments OHCI Compliant IEEE 1394 Host Controller”. 2. Select “Automatic search for a better driver”. Click “Next”. 3. -
Page 11: Windows 2000/Xp Driver Installation
P74414ea_F5U513ea_manual_uk 11-08-2003 12:09 Page 7 DRIVER INSTALLATION 1. When Windows has finished loading, the “New Hardware Wizard” will launch and display a window that identifies the Adapter as a “Texas Instruments OHCI Compliant IEEE 1394 Host Controller”. Windows will search its driver database and automatically install the correct driver. You may be prompted to restart your computer. -
Page 12: Information
Belkin Corporation warrants this product against defects in materials and workmanship for its lifetime. If a defect is discovered, Belkin will, at its option, repair or replace the product at no charge provided it is returned during the warranty period, with transportation charges prepaid, to the authorized Belkin dealer from whom you purchased the product. - Page 13 P74414ea_F5U513ea_manual_uk 11-08-2003 12:09 Page 9...
- Page 14 P74414ea_F5U513ea_manual_uk 11-08-2003 12:09 Page 10 © 2003 Belkin Corporation. All rights reserved. All trade names are registered trademarks of respective manufacturers listed. Belkin Corporation 501 West Walnut Street Compton • CA • 90220 • USA Tel: 310.898.1100 Fax: 310.898.1111 Belkin Components, Ltd.
