UNDERSTANDING YOUR CO ALARM, Continued
USER'S MANUAL
LOW BATTERY WARNING
The light continues to flash (RED) and the horn also "chirps" once every
BATTERY OPERATED CARBON MONOXIDE ALARM
minute. This warning should last for up to 30 days, but you should replace
the batteries as soon as possible.
WITH DIGITAL DISPLAY AND SILENCE FEATURE
DIGITAL DISPLAY: Battery icon will show an empty icon.
DURING TESTING
Light flashes Red in sync with the horn pattern (4 beeps, pause, 4 beeps),
simulating a CO Alarm condition.
DIGITAL DISPLAY: During the
simulated CO alarm, "CO" is
displayed along with a full alarm
level. Several ppm CO levels are
also displayed and the alarm level
is shown increasing.
CO ALARM
Printed in Mexico
Model CO410
Sensor has detected enough CO to trigger an alarm. Light flashes rapidly
M08-0157-004 P 10/06
and horn sounds loudly (repeating 4 beeps, pause). See "If Your CO Alarm
Sounds" for details. During an alarm, move everyone to a source of fresh
air. DO NOT move the CO Alarm!
IMPORTANT!
DIGITAL DISPLAY: "CO" alternating with
PLEASE READ CAREFULLY AND SAVE.
the ppm number, a full level, and "EVACUATE" .
This user's manual contains important information about your Carbon
Monoxide (CO) Alarm's operation. If you are installing this CO Alarm for use
by others, you must leave this manual—or a copy of it—with the end user.
CO ALARM REQUIRES SERVICE (MALFUNCTION SIGNAL)
The light flashes (RED) and the horn sounds 3 quick "chirps" every minute.
CO Alarm needs to be replaced.
TABLE OF CONTENTS
DIGITAL DISPLAY: "ERROR" is displayed.
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2
Basic Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
How Your CO Alarm Works . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
USING THE REMOTE CONTROL TEST/SILENCE FEATURE
Understanding Your CO Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2
Using the Remote Control Test/Silence Feature . . . . . . . . . . . . . . . . . . . .2
Using the VOLUME or CHANNEL buttons on most remote controls, you can
Using the Peak CO Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
test or silence this CO Alarm from up to 12 feet (3.6 meters) away.
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-3
To Test or Silence the Alarm:
Where to Install CO Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
1. Make sure you have a clear path between you and the
Where CO Alarms Should NOT Be Installed . . . . . . . . . . . . . . . . . . . . . .2
Alarm, free of any obstructions.
How to Install Your CO Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
2. Point the remote at the front of the Alarm.
If Your CO Alarm Sounds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
3. Press the VOLUME or CHANNEL button for at least
If the Alarm Signal Sounds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
5 seconds.
Using the Silence Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
If the Alarm does not respond to your remote control:
Testing and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
•
You may be standing too far away.
Weekly Testing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
•
Your remote may not be compatible.
Regular Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
•
You did not hold the button on your remote for at least
What You Need To Know About CO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
5 seconds.
What is CO? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
•
The remote Silence Feature only works once in an alarm situation. Using
Symptoms of CO Poisoning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
the Test/Silence button on the CO Alarm will still silence the unit. The
Finding the Source of CO After an Alarm . . . . . . . . . . . . . . . . . . . . . . . . .4
remote Silence Feature will return when the unit clears itself.
How Can I Protect My Family? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Potential Sources of CO in the Home . . . . . . . . . . . . . . . . . . . . . . . . . .5-6
USING THE PEAK CO MEMORY
Underwriters Laboratories Inc. UL2034 . . . . . . . . . . . . . . . . . . . . . . . . . . .5-6
The CO Memory Feature lets you check the highest level of CO recorded
General Limitations Of CO Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-6
during an alarm.
Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-6
To check CO Memory:
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-6
1. Press the Peak Level Button until the peak CO
© 2006 BRK Brands, Inc., a Subsidiary of Jarden Corporation. All rights reserved.
level is displayed.
BRK Brands, Inc., 3901 Liberty Street Road, Aurora, IL 60504-8122
To clear CO Memory:
Consumer Affairs: (800) 323-9005
www.brkelectronics.com
•
www.firstalert.com
1. While checking CO memory, press or hold the
Peak Level Button until "CLEAR" is displayed.
2. Press or hold the Peak Level Button until the CO
INTRODUCTION
Memory is cleared.
NOTE: The highest CO level will be saved until you clear it. DO NOT clear the
BASIC SAFETY INFORMATION
CO Memory reading if you plan to call someone to investigate a CO problem!
Clear the CO Memory reading only after the investigator has checked your
•
Dangers, Warnings, and Cautions alert you to important operating
home.
instructions or to potentially hazardous situations. Pay special
attention to these items.
INSTALLATION
•
THIS IS NOT A SMOKE ALARM! This CO Alarm is designed to detect
carbon monoxide from ANY source of combustion. It is NOT designed
to detect smoke, fire, or any other gas.
WHERE TO INSTALL CO ALARMS
•
This CO Alarm is approved for use in single-family residences.
The National Fire Protection Association (NFPA) recommends that a CO Alarm
It is NOT designed for marine use.
should be centrally located outside of each separate sleeping area in the
immediate vicinity of the bedrooms. For added protection, install additional CO
Alarms in each separate bedroom, and on every level of your home.
•
This CO Alarm will only indicate the presence of carbon monoxide gas
If your bedroom hallway is longer than 40 feet (12 meters), install a CO Alarm at
at the sensor. Carbon monoxide gas may be present in other areas.
BOTH ends of the hallway.
•
The Silence Feature is for your convenience only and will not correct
a CO problem. Always check your home for a potential problem after
any alarm. Failure to do so can result in injury or death.
•
NEVER ignore your Carbon Monoxide Alarm if it alarms. Refer to
"If Your CO Alarm Sounds" for more information. Failure to do so can
result in injury or death.
BEDROOM
•
Test the CO Alarm once a week. If the CO Alarm ever fails to test
correctly, have it replaced immediately! If the CO Alarm is not working
properly, it cannot alert you to a problem.
•
This product is intended for use in ordinary indoor locations of family
living units. It is not designed to measure CO levels in compliance
with Occupational Safety and Health Administration (OSHA) commer-
cial or industrial standards. Individuals with medical conditions that
may make them more sensitive to carbon monoxide may consider
using warning devices which provide audible and visual signals for
carbon monoxide concentrations under 30 ppm. For additional infor-
mation on carbon monoxide and your medical condition contact your
physician.
REQUIRED TO MEET NFPA RECOMMENDATIONS
SUGGESTED AREAS FOR INSTALLING ADDITIONAL CO ALARMS
HOW YOUR CO ALARM WORKS
In a Single-level Home:
GENERAL INFORMATION
•
Install at least one CO Alarm near or within each separate sleeping area.
•
For added protection, install an additional CO Alarm at least 20 feet
•
This Co Alarm does not operate without working batteries. Removing
(6 meters) away from the furnace or fuel burning heat source.
the batteries, or failure to replace them at the end of their service
In a Multi-level Home:
life, removes your protection.
•
Install at least one CO Alarm near or within each separate sleeping area.
•
High temperatures, low temperatures, high humidity, impact or
•
For added protection, install at least one CO Alarm on each level of the
dropping can adversely affect LCD displays.
home. If you have a basement, install that CO Alarm at the top of the base-
A CO Alarm measures the CO levels in the air. It will alarm if CO levels rise
ment stairs.
quickly (if the heat exchanger on your furnace breaks, for example), or if CO
•
For added protection, install an additional CO Alarm at least 20 feet
is consistently present (a slow CO leak on a fuel-burning appliance).
(6 meters) away from the furnace or fuel burning heat source.
This carbon monoxide alarm features a permanently installed sensor, three
In a Mobile Home:
colored indicator lights, and an 85 dB alarm horn. It also has a silence feature
•
Install CO Alarms on inside walls ONLY . Uninsulated outside walls and roofs
to temporarily quiet the alarm horn.
of mobile homes often transfer heat and cold from outdoors.

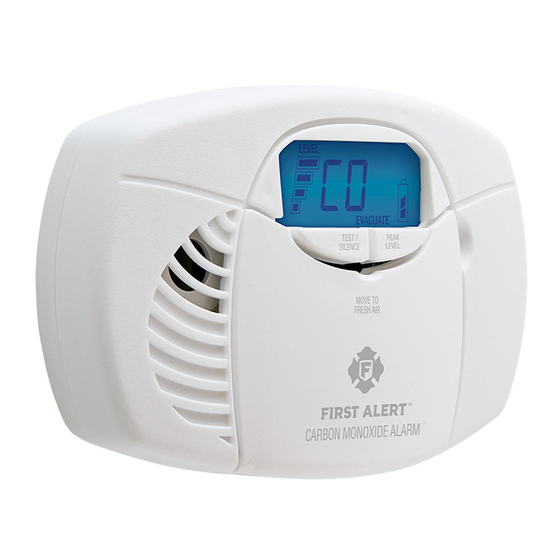

THE PARTS OF YOUR CO ALARM
WHERE CO ALARMS SHOULD NOT BE
6
INSTALLED
DO NOT locate this CO Alarm:
7
1
•
In a location where it could be easily triggered when using your remote
2
to operate your TV, VCR, etc.
•
In garages, kitchens, furnace rooms, or in any extremely dusty, dirty or
greasy areas.
•
Closer than 20 feet (6 meters) from a furnace or other fuel burning heat
source, or fuel burning appliances like a water heater.
5
3
•
Within 5 feet (1.5 meters) of any cooking appliance.
•
In extremely humid areas. This alarm should be at least 10 feet (3 meters)
from a bath or shower, sauna, humidifier, vaporizer, dishwasher, laundry
4
room, utility room or other source of high humidity.
•
In areas where temperature is colder than 40˚ F (4˚ C) or hotter than 100˚ F
1 Open door here
5 (Behind Cover) Alarm Horn: 85dB
(38˚ C). These areas include unconditioned crawl spaces, unfinished attics,
audible alarm for test, alarm, and
2 Test/Silence Button
uninsulated or poorly insulated ceilings, porches, and garages.
unit malfunction warning.
3 POWER/ALARM Light (RED)
•
In turbulent air, like near ceiling fans, heat vents, air conditioners, fresh air
6 Peak Level Button
4 Battery Compartment
returns, or open windows. Blowing air may prevent CO from reaching the
7 Digital Display
sensors.
•
In direct sunlight.
UNDERSTANDING YOUR CO ALARM
WELCOME CHIRP
• This CO Alarm is designed for use inside a single-family home or
apartment. It is not meant to be used in common lobbies, hallways,
Horn chirps and light blinks once when batteries are first connected.
or basements of multi-family buildings unless working CO Alarms
are also installed in each family living unit. CO Alarms in common
DIGITAL DISPLAY: All segments are turned
areas may not be heard from inside individual family living units.
on for a short time upon initial power.
Then the battery level icon is displayed.
• This CO Alarm alone is not a suitable substitute for complete
detection systems in places which house many people, like hotels
or dormitories, unless a CO Alarm is also placed in each unit.
ALARM RECEIVING BATTERY POWER
Light flashes every minute. Horn is silent.
• DO NOT use this CO Alarm in warehouses, industrial or commercial
buildings, special-purpose non-residential buildings, RVs, boats,
DIGITAL DISPLAY: Battery icon will show a full or almost
or airplanes. This CO Alarm is specifically designed for residential
full icon.
use, and may not provide adequate protection in non-residential
applications.
Continued...
1
HOW TO INSTALL YOUR CO ALARM
Read "Where To Install CO Alarms" before starting.
Before you start installation, find the pair of self-adhesive labels included
with this CO Alarm. On each label write in the phone number of your emer-
gency responder (like 911) and a qualified appliance technician. Place one
label near the CO Alarm, and the other label in the "fresh air" location you
plan to go if the alarm sounds.
INSTALLING THE AA BATTERIES
1. Flip the battery door down to open.
2. Install both AA batteries
(included) inside the battery
compartment as indicated.
Make sure the "+" and "–"
ends of each battery are
aligned properly.
3. Close the battery door.
TO MOUNT ON THE WALL
Tools you will need: pencil, drill with 3/16" or 5mm drill bit,
flathead screwdriver, hammer.
1. Choose a location on the wall. Do not install the Alarm closer than 4"
(102 mm) from where the wall meets the ceiling.
2. Hold the mounting guide template against the wall, and make a mark
inside each keyhole where you will drill your mounting hole as shown in
the diagram below.
3. Use a 3/16" (5 mm) drill bit to drill through the marks you made for the
mounting holes.
4. Insert the plastic screw anchors into the mounting holes until they are
flush with the wall. If necessary, tap them gently with a hammer.
5. Insert the screws into the anchors until the screwhead is 1/8 inch (3 mm)
away from the wall.
6. Slide the CO Alarm onto the screws until you feel it click into place.
7.
Test the CO Alarm as described in "Weekly Testing."
IF YOUR CO ALARM SOUNDS
Actuation of your CO Alarm indicates the presence of carbon monoxide
(CO) which can kill you. In other words, when your CO Alarm sounds,
you must not ignore it!
IF THE ALARM SIGNAL SOUNDS:
1. Operate the Test/Silence button.
2. Call your emergency services, fire department or 911. Write down the
number of your local emergency service here:
__________________________________________________________________
3. Immediately move to fresh air—outdoors or by an open door or window.
Do a head count to check that all persons are accounted for. Do not re-
enter the premises, or move away from the open door or window until the
emergency services responder has arrived, the premises have been aired
out, and your CO Alarm remains in its normal condition.
4. After following steps 1-3, if your CO Alarm reactivates within a 24-hour
period, repeat steps 1-3 and call a qualified appliance technician to inves-
tigate for sources of CO from fuel-burning equipment and appliances, and
inspect for proper operation of this equipment. If problems are identified
during this inspection have the equipment serviced immediately. Note any
combustion equipment not inspected by the technician, and consult the
manufacturers' instructions, or contact the manufacturers directly, for more
information about CO safety and this equipment. Make sure that motor
vehicles are not, and have not, been operating in an attached garage or
adjacent to the residence. Write down the number of a qualified appliance
technician here:
_________________________________________________________________
"ALARM-MOVE TO FRESH AIR"
If you hear the alarm horn and the Red light is flashing,
move everyone to a source of fresh air.
DO NOT disconnect the batteries from the CO Alarm!
Alarms have various limitations. See "General Limitations of CO Alarms"
for details.
USING THE SILENCE FEATURE
• The Silence Feature is for your convenience only and will not
correct a CO problem. Always check your home for a potential
problem after any alarm. Failure to do so can result in injury or
death.
• NEVER remove the batteries from your CO Alarm to silence the
horn. Use the silence feature. Removing the batteries removes
your protection! See "If Your CO Alarm Sounds" for details on
BEDROOM
BEDROOM
responding to an alarm.
The Silence Feature is intended to temporarily silence your CO Alarm's alarm
horn while you correct the problem—it will not correct a CO problem. While
KITCHEN
GARAGE
the alarm is silenced it will continue to monitor the air for CO.
HALL
LIVING ROOM
To Activate the Silence Feature Manually:
Press and hold the Test/Silence button until the horn is silent.
To Activate the Silence Feature Using Your Remote Control:
BASEMENT
Standing no farther than 12 feet (3.6 meters) away, point your remote control at
the cover of the CO Alarm and push the VOLUME or CHANNEL button. Hold
the button down for at least 5 seconds.
Once you activate the Silence Feature: the Silence cycle will last
approximately 4 minutes.
NOTE: After initial 4-minute Silence cycle, the CO Alarm re-evaluates present
CO levels and responds accordingly. If CO levels remain potentially danger-
ous—or start rising higher—the horn will start sounding again.
While the detector is silenced:
If the CO Alarm...
Is silent for only 4 minutes, then
starts sounding loudly—4 beeps,
pause, 4 beeps, pause
If the CO Alarm...
Remains silent after you pressed
the Test/Silence button
SILENCING THE LOW BATTERY WARNING
This silence feature can temporarily quiet the low battery warning "chirp" for
up to 8 hours without having to remove the batteries. You can silence the low
battery warning "chirp" two ways:
1. Manually: Press the Test/Silence button on the alarm cover.
2. Using Your Remote Control: Standing no further than 12 feet (3.6 meters)
away from the CO Alarm, aim your IR remote at the CO Alarm and press
the CHANNEL or VOLUME button for at least 3-5 seconds.
After 8 hours, the low battery "chirp" will resume. Replace the batteries as
soon as possible; this unit will not operate without battery power!
To deactivate this feature: Press the Test/Silence button again. The unit will
go into Test Mode and the low battery warning will resume (LED flashes and
unit sounds "chirp" once a minute.)
If you cannot silence the low battery warning, replace the batteries
immediately.
2
TESTING & MAINTENANCE
WEEKLY TESTING
•
Test the CO Alarm once a week. If the CO Alarm ever fails to test
correctly, have it replaced immediately! If the CO Alarm is not working
properly, it cannot alert you to a problem.
•
DO NOT stand close to the Alarm when the horn is sounding.
Exposure at close range may be harmful to your hearing. When
testing, step away when horn starts sounding.
You can test this CO Alarm two ways:
1. Manually: Press the Test/Silence button on the Alarm
cover until alarm sounds.
2. Remote Control: Aim your remote control at the CO
Alarm and press the CHANNEL or VOLUME button.
The alarm horn will sound: 4 beeps, a pause, then 4 beeps.
The ALARM (RED) light will flash quickly. The alarm
sequence should last 5-6 seconds. If it does not alarm,
make sure fresh batteries are correctly installed, and test it
again. If the unit still does not alarm, replace it immediately.
If the alarm does not test properly:
1. Make sure that fresh batteries are installed correctly.
2. Be sure the Alarm is clean and dust-free.
3. Install fresh AA batteries and test the Alarm again. For a list of acceptable
replacement batteries, see "Regular Maintenance."
•
DO NOT try fixing the Alarm yourself – this will void your warranty!
If the CO Alarm is still not operating properly, and it is still under
warranty, please see "How to Obtain Warranty Service" in the Limited
Warranty. Install a new CO Alarm immediately.
•
The two methods described on this page are the only proper ways to
test the CO Alarm. NEVER use vehicle exhaust! Exhaust may cause
permanent damage and voids your warranty.
REGULAR MAINTENANCE
To keep the CO Alarm in good working order:
•
Test it every week using the Test/Silence button.
•
Vacuum the CO Alarm cover once a month, using the soft brush attach-
ment. Never use water, cleaners, or solvents, since these may damage the
unit. Test the CO Alarm again after vacuuming.
•
Replace the batteries when the CO Alarm "chirps" about every minute (the
low battery warning).
The low battery warning should last for 30 days, but you should replace the
battery immediately to continue your protection.
Choosing a replacement battery:
This CO Alarm requires two standard AA batteries. The following batteries
are acceptable as replacements: Energizer E91. These replacement batteries
are commonly available at local retail stores.
Use only the replacement batteries listed. The unit may not operate properly
with other batteries. Never use rechargeable batteries since they may not
provide a constant charge.
DO NOT spray cleaning chemicals or insect sprays directly on or near
the CO Alarm. DO NOT paint over the CO Alarm. Doing so may cause
permanent damage.
Household cleaners, aerosol chemicals, and other contaminants can affect
the sensor. When using any of these materials near the CO Alarm, make sure
the room is well ventilated.
WHAT YOU NEED TO KNOW ABOUT CO
WHAT IS CO?
CO is an invisible, odorless, tasteless gas produced when fossil fuels do not
burn completely, or are exposed to heat (usually fire). Electrical appliances
typically do not produce CO.
These fuels include: Wood, coal, charcoal, oil, natural gas, gasoline, kerosene,
and propane.
Common appliances are often sources of CO. If they are not properly main-
tained, are improperly ventilated, or malfunction, CO levels can rise quickly. CO
is a real danger now that homes are more energy efficient. "Air-tight" homes
with added insulation, sealed windows, and other weatherproofing can "trap"
CO inside.
SYMPTOMS OF CO POISONING
These symptoms are related to CO POISONING and should be discussed
with ALL household members.
Mild Exposure:
Slight headache, nausea, vomiting, fatigue ("flu-like" symptoms).
Medium Exposure:
Throbbing headache, drowsiness, confusion, fast heart rate.
Extreme Exposure:
Convulsions, unconsciousness, heart and lung failure. Exposure to carbon
monoxide can cause brain damage, death.
Some individuals are more sensitive to CO than others, including people
with cardiac or respiratory problems, infants, unborn babies, pregnant
mothers, or elderly people can be more quickly and severely affected by
CO. Members of sensitive populations should consult their doctors for
advice on taking additional precautions.
FINDING THE SOURCE OF CO AFTER AN ALARM
Carbon monoxide is an odorless, invisible gas, which often makes it difficult to
locate the source of CO after an alarm. These are a few of the factors that can
make it difficult to locate sources of CO:
•
House well ventilated before the investigator arrives.
This means...
•
Problem caused by "backdrafting."
CO levels are still potentially
•
Transient CO problem caused by special circumstances.
dangerous.
Because CO may dissipate by the time an investigator arrives, it may be
difficult to locate the source of CO. BRK Brands, Inc. shall not be obligated
to pay for any carbon monoxide investigation or service call.
This means...
CO levels are dropping.
HOW CAN I PROTECT MY FAMILY?
A CO Alarm is an excellent means of protection. It monitors the air and
sounds a loud alarm before carbon monoxide levels become threatening
for average, healthy adults.
A CO Alarm is not a substitute for proper maintenance of home appliances.
To help prevent CO problems and reduce the risk of CO poisoning:
•
Clean chimneys and flues yearly. Keep them free of debris, leaves, and
nests for proper air flow. Also, have a professional check for rust and
corrosion, cracks, or separations. These conditions can prevent proper air
movement and cause backdrafting. Never "cap" or cover a chimney in any
way that would block air flow.
•
Test and maintain all fuel-burning equipment annually. Many local gas or
oil companies and HVAC companies offer appliance inspections for a
nominal fee.
•
Make regular visual inspections of all fuel-burning appliances. Check appli-
ances for excessive rust and scaling. Also check the flame on the burner
and pilot lights. The flame should be blue. A yellow flame means fuel is not
being burned completely and CO may be present. Keep the blower door on
the furnace closed. Use vents or fans when they are available on all fuel-
burning appliances. Make sure appliances are vented to the outside. Do not
grill or barbecue indoors, or in garages or on screen porches.
•
Check for exhaust backflow from CO sources. Check the draft hood
on an operating furnace for a backdraft. Look for cracks on furnace
heat exchangers.
•
Check the house or garage on the other side of shared wall.
•
Keep windows and doors open slightly. If you suspect that CO is escaping
into your home, open a window or a door. Opening windows and doors
can significantly decrease CO levels.
In addition, familiarize yourself with all enclosed materials. Read this
manual in its entirety, and make sure you understand what to do if your
CO Alarm sounds.
Mounting Guide Template
2.5 inches (64 mm)
3.875 inches
3.875 inches
3
Fuel-burning appliances like: portable heater, gas or wood burning fireplace,
gas kitchen range or cooktop, gas clothes dryer.
Damaged or insufficient venting: corroded or disconnected water heater
vent pipe, leaking chimney pipe or flue, or cracked heat exchanger, blocked or
clogged chimney opening.
Improper use of appliance/device: operating a barbecue grill or vehicle in
an enclosed area (like a garage or screened porch).
Transient CO Problems: "transient" or on-again-off-again CO problems can
be caused by outdoor conditions and other special circumstances.
UNDERWRITERS LABORATORIES INC. UL2034
WHAT LEVELS OF CO CAUSE AN ALARM?
Underwriters Laboratories Inc. Standard UL2034 requires residential CO
Alarms to sound when exposed to levels of CO and exposure times as
described below. They are measured in parts per million (ppm) of CO over
time (in minutes).
UL2034 Required Alarm Points*:
•
If the alarm is exposed to 400 ppm of CO, IT MUST ALARM BETWEEN
4 and 15 MINUTES.
•
If the alarm is exposed to 150 ppm of CO, IT MUST ALARM BETWEEN
10 and 50 MINUTES.
•
If the alarm is exposed to 70 ppm of CO, IT MUST ALARM BETWEEN
60 and 240 MINUTES.
* Approximately 10% COHb exposure at levels of 10% to 95% Relative
Humidity (RH).
The unit is designed not to alarm when exposed to a constant level
of 30 ppm for 30 days.
CO Alarms are designed to alarm before there is an immediate life threat.
Since you cannot see or smell CO, never assume it's not present.
•
An exposure to 100 ppm of CO for 20 minutes may not affect average,
healthy adults, but after 4 hours the same level may cause headaches.
•
An exposure to 400 ppm of CO may cause headaches in average, healthy
adults after 35 minutes, but can cause death after 2 hours.
This CO Alarm measures exposure to CO over time. It alarms if CO levels
are extremely high in a short period of time, or if CO levels reach a certain
minimum over a long period of time. The CO Alarm generally sounds an alarm
before the onset of symptoms in average, healthy adults.
GENERAL LIMITATIONS OF CO ALARMS
This CO Alarm is intended for residential use. It is not intended for
use in industrial applications where Occupational Safety and Health
Administration (OSHA) requirements for carbon monoxide detectors
must be met.
CO alarms may not waken all individuals. If children or others do not readily
waken to the sound of the CO alarm, or if there are infants or family members
with mobility limitations, make sure that someone is assigned to assist them in
the event of an emergency.
CO Alarms will not work without power. This alarm requires two standard
AA batteries to operate.
CO Alarms for Solar or Wind Energy users and battery backup power
systems: AC powered CO Alarms should only be operated with true or pure
sine wave inverters. Operating this Alarm with most battery-powered UPS
(uninterruptible power supply) products or square wave or "quasi sine wave"
inverters will damage the Alarm. If you are not sure about your inverter or
UPS type, please consult with the manufacturer to verify.
This CO Alarm will not sense carbon monoxide that does not reach the
sensor. This CO Alarm will only sense CO at the sensor. CO may be present
in other areas. Doors or other obstructions may affect the rate at which CO
reaches the CO Alarm. For this reason, if bedroom doors are usually closed
at night, we recommend you install a CO Alarm in each bedroom and in the
hallway between them.
CO Alarms may not sense CO on another level of the home. For example,
a CO Alarm on the second level, near the bedrooms, may not sense CO in the
basement. For this reason, one CO Alarm may not give adequate warning.
Complete coverage is recommended. Place CO Alarms on each level of the
home.
PROBLEM...
The light continues to flash (RED) and the horn
"chirps" once every minute.
The light flashes (RED) and the horn sounds 3 quick
"chirps" every minute.
CO Alarm goes back into alarm 4 minutes after you
press the Test/Silence button.
CO Alarm sounds frequently even though no high
levels of CO are revealed in an investigation.
*For a list of acceptable replacement batteries, see "Page 4: Regular Maintenance."
If you have any questions that cannot be answered by reading this manual, call Consumer Affairs at 1-800-323-9005.
BRK Brands, Inc. ("BRK") the maker of BRK
®
brand and First Alert
be free from defects in material and workmanship. BRK, at its option, will repair or replace this product or any component of the product found to be defective during
the warranty period. Replacement will be made with a new or remanufactured product or component. If the product is no longer available, replacement may be made
with a similar product of equal or greater value. This is your exclusive warranty.
This warranty is valid for the original retail purchaser from the date of initial retail purchase and is not transferable. Keep the original sales receipt. Proof of purchase is
required to obtain warranty performance. BRK dealers, service centers, or retail stores selling BRK products do not have the right to alter, modify or any way change
the terms and conditions of this warranty.
This warranty does not cover normal wear of parts or damage resulting from any of the following: negligent use or misuse of the product, use on improper voltage or
current, use contrary to the operating instructions, disassembly, repair or alteration by anyone other than BRK or an authorized service center. Further, the warranty
does not cover acts of God, such as fire, flood, hurricanes and tornadoes or any batteries that are included with this unit.
BRK shall not be liable for any incidental or consequential damages caused by the breach of any express or implied warranty. Except to the extent prohibited by
applicable law, any implied warranty of merchantability or fitness for a particular purpose is limited in duration to the duration of the above warranty. Some states,
provinces, or jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so
the above limitations or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state,
or province to province.
How to Obtain Warranty Service:
Service: If service is required, do not return the product to your retailer. In order to obtain warranty service, contact the Consumer Affairs Division at 1-800-323-9005,
7:30 AM to 5:00 PM, Central Standard Time, Monday through Friday. To assist in serving you, please have the model number and date of purchase available when
calling. 25 Spur Drive, El Paso, TX 79906
Battery: BRK Brands, Inc. makes no warranty, express or implied, written or oral, including that of merchantability or fitness for any particular purpose, with
respect to battery.
For your records, please record:
Date Purchased: _______________Where Purchased: ___________________
Date Installed: ____________/____________Month/Year
First Alert
®
is a registered trademark of the First Alert Trust.
4
5
POTENTIAL SOURCES OF CO IN THE HOME
The following conditions can result in transient CO situations:
1. Excessive spillage or reverse venting of fuel appliances caused by outdoor
conditions such as:
• Wind direction and/or velocity, including high, gusty winds. Heavy air in
the vent pipes (cold/humid air with extended periods between cycles).
• Negative pressure differential resulting from the use of exhaust fans.
• Several appliances running at the same time competing for limited
fresh air.
• Vent pipe connections vibrating loose from clothes dryers, furnaces, or
water heaters.
• Obstructions in or unconventional vent pipe designs which can amplify
the above situations.
2. Extended operation of unvented fuel burning devices (range, oven,
fireplace).
3. Temperature inversions, which can trap exhaust close to the ground.
4. Car idling in an open or closed attached garage, or near a home.
These conditions are dangerous because they can trap exhaust in your
home. Since these conditions can come and go, they are also hard to
recreate during a CO investigation.
Why is this important? Because you need to be warned of a potential CO
problem while you can still react in time. In many reported cases of CO
exposure, victims may be aware that they are not feeling well, but become
disoriented and can no longer react well enough to exit the building or get help.
Also, young children and pets may be the first affected. The average healthy
adult might not feel any symptoms when the CO Alarm sounds. However,
people with cardiac or respiratory problems, infants, unborn babies, pregnant
mothers, or elderly people can be more quickly and severely affected by CO.
If you experience even mild symptoms of CO poisoning, consult your doctor
immediately!
Standards: Underwriters Laboratories Inc. Single and Multiple Station carbon
monoxide alarms UL2034.
According to Underwriters Laboratories Inc. UL2034, Section 1-1.2: "Carbon
monoxide alarms covered by these requirements are intended to respond to
the presence of carbon monoxide from sources such as, but not limited to,
exhaust from internal-combustion engines, abnormal operation of fuel-fired
appliances, and fireplaces. CO Alarms are intended to alarm at carbon
monoxide levels below those that could cause a loss of ability to react to the
dangers of Carbon Monoxide exposure." This CO Alarm monitors the air at the
Alarm, and is designed to alarm before CO levels become life threatening. This
allows you precious time to leave the house and correct the problem. This is
only possible if Alarms are located, installed, and maintained as described in
this manual.
Gas Detection at Typical Temperature and Humidity Ranges: The CO Alarm
is not formulated to detect CO levels below 30 ppm typically. UL tested for false
alarm resistance to Methane (500 ppm), Butane (300 ppm), Heptane (500 ppm),
Ethyl Acetate (200 ppm), Isopropyl Alcohol (200 ppm) and Carbon Dioxide (5000
ppm). Values measure gas and vapor concentrations in parts per million.
Audible Alarm: 85 dB minimum at 10 feet (3 meters).
CO Alarms may not be heard. The alarm horn loudness meets or exceeds
current UL standards of 85 dB at 10 feet (3 meters). However, if the CO Alarm
is installed outside the bedroom, it may not wake up a sound sleeper or one
who has recently used drugs or has been drinking alcoholic beverages. This
is especially true if the door is closed or only partly open. Even persons who
are awake may not hear the alarm horn if the sound is blocked by distance or
closed doors. Noise from traffic, stereo, radio, television, air conditioner, or
other appliances may also prevent alert persons from hearing the alarm horn.
This CO Alarm is not intended for people who are hearing impaired.
CO Alarms are not a substitute for a smoke alarm. Although fire is a
source of carbon monoxide, this CO Alarm does not sense smoke or fire. This
CO Alarm senses CO that may be escaping unnoticed from malfunctioning
furnaces, appliances, or other sources. Early warning of fire requires the
installation of smoke alarms.
CO Alarms are not a substitute for life insurance. Though these CO Alarms
warn against increasing CO levels, BRK Brands, Inc. does not warrant or imply
in any way that they will protect lives from CO poisoning. Homeowners and
renters must still insure their lives.
CO Alarms have a limited life. Although the CO Alarm and all of its parts
have passed many stringent tests and are designed to be as reliable as
possible, any of these parts could fail at any time. Therefore, you must test
your CO Alarm weekly.
CO Alarms are not foolproof. Like all other electronic devices, CO Alarms
have limitations. They can only detect CO that reaches their sensors. They may
not give early warning to rising CO levels if the CO is coming from a remote
part of the home, away from the CO Alarm.
TROUBLESHOOTING GUIDE
THIS MEANS...
YOU SHOULD...
Low battery warning.
Install 2 new AA batteries*.
MALFUNCTION SIGNAL. CO Alarm needs to be
CO Alarms under warranty should be returned to
replaced.
manufacturer for replacement. See "Limited
Warranty" for details.
CO levels indicate a potentially dangerous situation.
IF YOU ARE FEELING SYMPTOMS OF CO POISON-
ING, EVACUATE your home and call 911 or the Fire
Department. If not, press the Test/Silence button
again and keep ventilating your home.
The CO Alarm may be improperly located. Refer to
Relocate your alarm. If frequent alarms continue,
"Where to Install CO Alarms."
have home rechecked for potential CO problems.
You may be experiencing an intermittent CO problem.
LIMITED WARRANTY
®
brand products, warrants that for a period of five years from the date of purchase, this product will
Replacement date is five years after installation:
_____________/____________Month/Year
NOTE: End of Life Signal — Once the unit reaches the end of its
lifecycle, the MALFUNCTION SIGNAL will sound once a minute to
indicate the need to immediately replace the Alarm.
Printed in Mexico M08-0157-004 P 10/06
6
Advertisement
