Cateye ViZ300 Manual

Manual
Before using the light, read this manual
thoroughly and keep it for future reference.
Do not use the product in any application or
method not described in this manual.
Design Pat. Pending
Copyright© 2020 CATEYE Co., Ltd.
1
TLLD810/820-201223
WARNING!!!
( Risk of death; Prevention of accidents )
• To prevent accidents and to ensure safe riding, make
sure the light is securely attached to the bracket and it is
functioning properly before the ride. Do not use a
damaged ladder rubber band.
• Always pay attention to the remaining battery power by
checking the indicator periodically when using.
• Do not disassemble or modify the light or any of the
included items.
CAUTION!
( Prevention of injury, damage, or property damage )
• Stop your bicycle to operate the switch.
• Do not place it within children's reach.
• This device is rated IPX4 based on JIS C0920.
Do not immerse the device in water. Doing so may cause
a malfunction. Wipe off any moisture after using the
device in rainy weather.
• Do not subject the light to strong vibrations, impacts, or
excessive force. Discontinue use if any abnormality occurs.
• Do not charge the battery in any way or at any voltage
other than that specified. Do not short-circuit the battery.
• Do not drop the light into a fire or heat the light.
• If the light unit or parts become dirty with mud, etc.,
clean with a soft cloth which is moistened with mild
soap. Never apply paint thinner, benzine or alcohol;
damage will result.
LITHIUM-ION BATTERIES
Cautions for charging and usage:
• We recommend using 500+mAh (USB2.0) USB battery
charger.
• Before charging, be sure that no dust or other foreign
objects attach to the USB plug.
• Do not subject the light to vibrations while charging.
• When your PC is in sleep state, the unit cannot be
charged.
• Once charging is complete, be sure to disconnect the
USB plug.
• Charging time is approximate values, and will vary
depending on the environmental and usage conditions.
• Charging, discharging, and storing in high
temperatures will cause the rechargeable battery to
deteriorate faster. Do not place the light inside a vehicle
or near a heater. Make sure to charge only when the
ambient temperature is between 5 and 40°C.
• If the illumination time is significantly reduced even
after proper charging, the rechargeable battery may be
nearing the end of its service life.
Cautions on storage:
• If the device will not be used for a long period of time,
store it in a location that is not too hot or too humid.
• Charge the battery for about 30 minutes every 6 months.
Cautions for dispose:
When disposing of the light unit, remove the internal
rechargeable battery and dispose of it according to local
regulations.

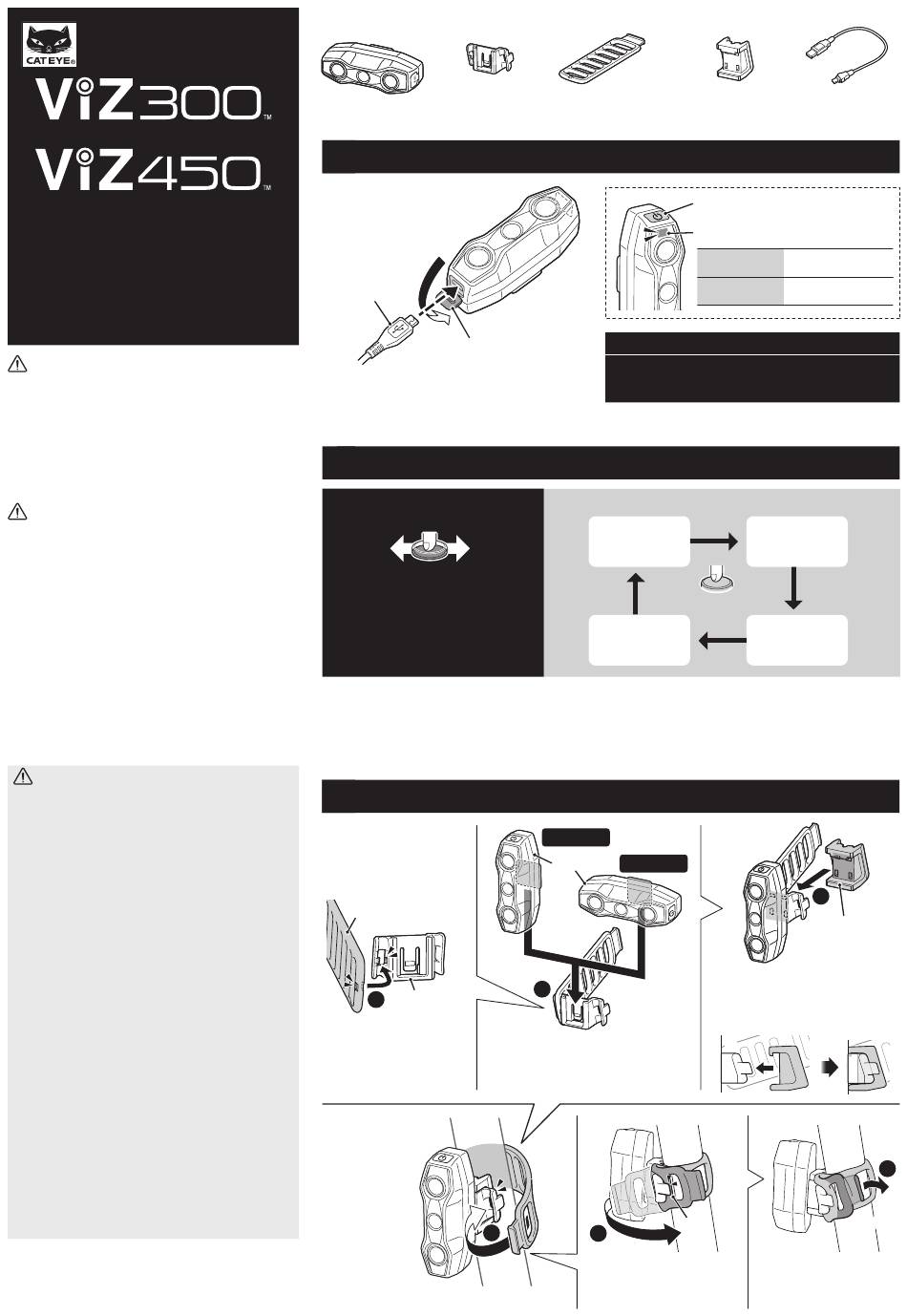

Included Items
ENG

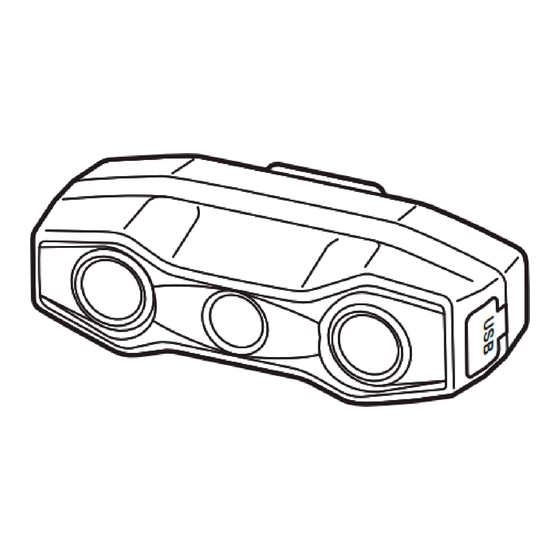

TL-LD810
Light unit
1
TL-LD820
HOW TO CHARGE
USB cable
To PC or USB battery charger
CAUTION!:
• Always charge the product before use.
• Once charging is completed, securely close the charging port cover.
2
SWITCH OPERATION
OFF
* When turning the light on, it lights
up in the mode that was used last
time. (Mode memory function)
Automatic battery-saving function:
When the remaining battery power gets low, the indicator starts flashing and the lighting mode changes to
power-save flashing mode (where the LEDs on both ends of the unit flash alternately). Charge the product as
soon as possible.
* Run time is approximately 1 hour in power-save flashing mode.
3
HOW TO MOUNT TO A BICYCLE
Attach the light securely
in the mounting position.
Ladder rubber band
1
B
Attach the ladder
rubber band (B) to the
bracket (A).
Seat post/stay
Ø21.5 – 32
* The light can be mounted on aero seat posts with an outer
circumference of approx. 130 mm.
A
Ladder rubber band
Bracket
(SP-15)
Charging port cover
ON*
Press and hold
Vertical
Light unit
or
A
2
Bracket
Mount the light unit vertically or
horizontally.
mm
4
B
C
Bracket rubber pad
Switch
Indicator
Steady red light
Off
Standard charging time
Approx. 3 hours
Viz300
Approx. 3.5 hours
Viz450
Switching the lighting mode
Constant
Click
Daytime
HyperFlash
Horizontal
Attach the bracket rubber pad (C)
aligning it with the protrusion on
the back of the bracket (A).
A
Tab
5
Fold back
Fold back any excess band
and hook it on the tab.
USB cable
(MICRO USB)
Charging
Charging is completed
( 0.5A )
( 0.5A )
Flashing
Group Ride
C
3
Bracket rubber
A
pad
C
6
Insert
Insert the tip of the band
into the gap.
