TEFAL Express Protect SV92 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

EN
Express Protect - SV92

Advertisement

Table of Contents
loading

Related Manuals for TEFAL Express Protect SV92

Summary of Contents for TEFAL Express Protect SV92

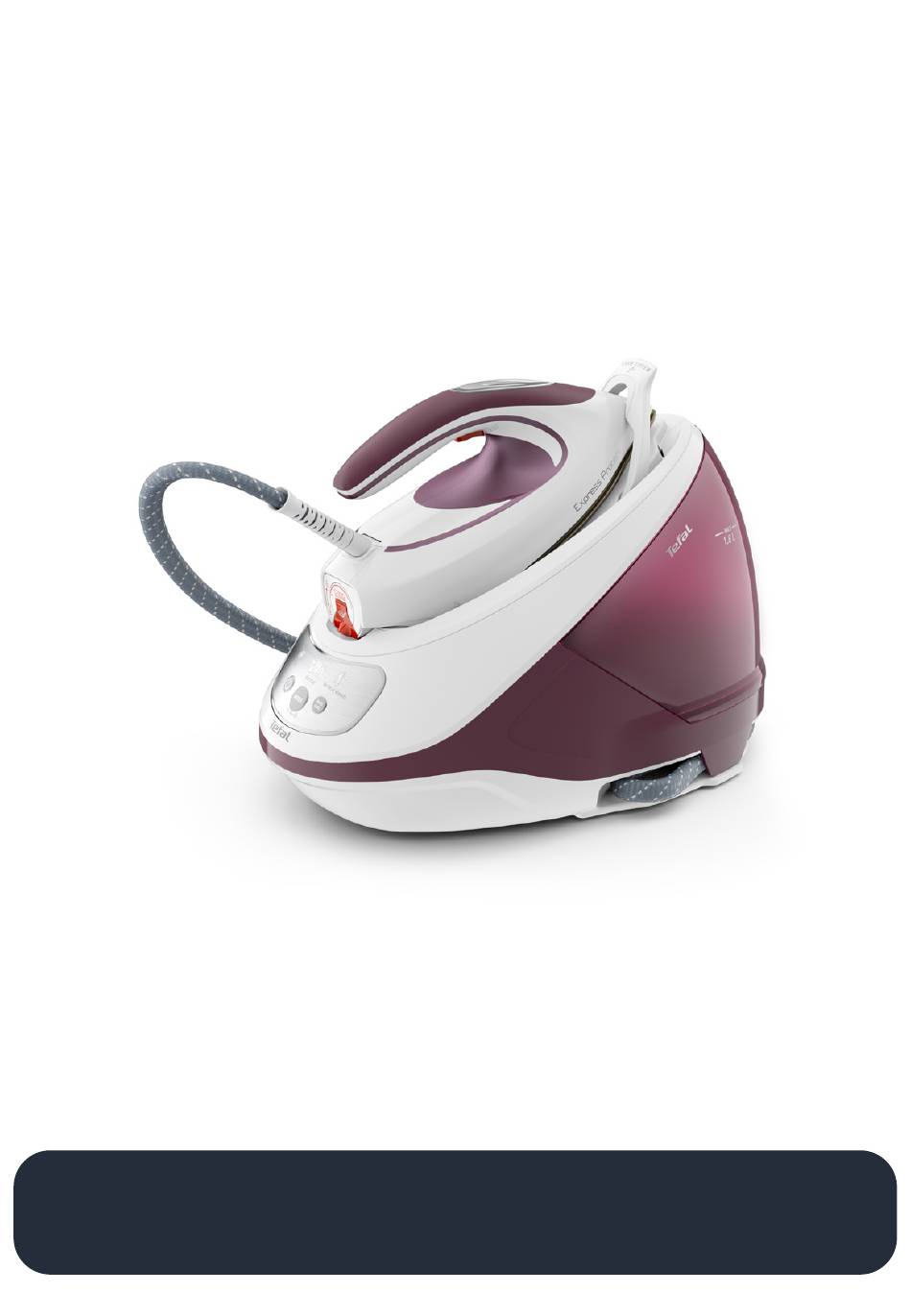

  • Page 1 Express Protect - SV92...

  • Page 3: Table Of Contents

    Summary 1. Safety instructions ..................5 2. USING YOUR APPLIANCE ..............12 2.1 Getting started................12 2.2 Filling the water tank ..............16 2.3 Transportation ................. 18 2.4 Settings ....................19 2.5 Vertical steaming ................23 2.6 Auto-off ..................... 25 3. MAINTENANCE AND STORAGE ............27 3.1 Emptying the scale collector .............

  • Page 5: Safety Instructions

    Safety instructions Important recommendations • Please read these instructions carefully before first use. This product has been designed for domestic and indoor use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply. •...
  • Page 6 or persons with reduced or impaired physical, sensory or mental capabilities provided that they have been thoroughly instructed regarding use of the appliance, are supervised, and understand the risks involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
  • Page 7 that are under pressure, must not be opened during use. • The appliance must not be used if it has been dropped, if it has any visible damage, if it leaks, or if it functions abnormally in any way. Do not attempt to dismantle your appliance: have it examined at an Approved Service Centre to avoid any danger.
  • Page 8 These types of water should not be used in your TEFAL iron. Also only use distilled water as advised above. Always remember: Never use rainwater or water containing additives (like starch, fragrance or water from domestic appliances).
  • Page 9 PLEASE RETAIN THIS INSTRUCTION BOOKLET FOR FUTURE REFERENCE Environment protection first ! Your appliance contains valuable materials which can be recovered or recycled. Leave it at a local civic waste collection point.
  • Page 10 1 Scale collector 2 Steam trigger 3 Lock system 4 Water tank 5 Flush accessory 6 Steam cord 7 Control panel...
  • Page 11 STEAMBOOST www.tefal.com...

  • Page 12: Using Your Appliance

    USING YOUR APPLIANCE 2.1 Getting started Express Protect equipped with a lock system to hold the iron onto the base for easy transport and storage. • Unlock your steam generator. • Completely unwind the power cord and take the steam cord out of its storage space.
  • Page 13 USING YOUR APPLIANCE • Fill the water tank with tap water up to the max indication. Put the tank back into the appliance by pushing in until it locks into place. • Always ensure that the base unit is positioned CLICK close enough to the ironing surface to avoid...
  • Page 14 USING YOUR APPLIANCE • Press the «ON-OFF» button on the control panel. • The «ON-OFF» and the «Normal» button light remain flashing while the appliance is warming up. • The steam generator is 2min ready for use. The mode can still be switched even when the light flashes.
  • Page 15 USING YOUR APPLIANCE • To release even more steam, press the steam STEAMBOOST trigger under the handle three times in quick succession for automatic sequential steam. During ironing do not leave the iron faced down on the soleplate or resting on the flush accessory.

  • Page 16: Filling The Water Tank

    USING YOUR APPLIANCE 2.2 Filling the water tank • Switch off and unplug the appliance. • Remove the removable water tank using the handle located at the front of the steam generator • Fill it with tap water without exceeding the MAX indicator.
  • Page 17 USING YOUR APPLIANCE • Plug in the appliance. • Press «ON-OFF» button to restart the appliance.

  • Page 18: Transportation

    USING YOUR APPLIANCE 2.3 Transportation Your steam generator is equipped with a lock system to hold the iron onto the base for easy transport and storage To transport your steam generator using handle of the iron: - Put the iron on the steam generator base and lift the lock system over the iron until it...

  • Page 19: Settings

    USING YOUR APPLIANCE 2.4 Settings Changing modes • Press the « MODE » button located on the control panel to go from one setting to another.
  • Page 20 USING YOUR APPLIANCE • When you press the MODE button to change mode, the light of the new mode flashes while the steam generator is adapting temperature and steam to the new setting. steam generator is ready when the light stops flashing.
  • Page 21 USING YOUR APPLIANCE Choosing the adapted mode DELICATE • Check garment label. According to the type of NORMAL fabric to be ironed, select the right setting on the appliance. BOOST • The product will automatically adjust the steam output.
  • Page 22 USING YOUR APPLIANCE Boost mode • To switch to the "Max" mode, just press the mode button for 2 seconds...

  • Page 23: Vertical Steaming

    USING YOUR APPLIANCE 2.5 Vertical steaming As steam is very hot: never attempt remove creases from a garment while it is being worn, always hang garments on a coat hanger. • Hang the garment on a coat hanger and hold the fabric slightly taut with one hand.
  • Page 24 USING YOUR APPLIANCE • Holding the iron in a vertical position tilted slightly forwards, press repeatedly on the steam trigger (underneath the iron handle) moving the iron from top to bottom. • Always use the 'max' wool - laine wool - laine setting on the thermostat silk - soie silk - soie...

  • Page 25: Auto-Off

    USING YOUR APPLIANCE 2.6 Auto-off • The steam generator is fitted with an «AUTO- OFF» monitoring system, which activated automatically after approximately 8 minutes without use. The «ON-OFF» button flashes to indicate that the appliance is on standby. • To reactivate the steam generator, press «ON-OFF»...
  • Page 26 USING YOUR APPLIANCE • After approximately 30 minutes of non-use, the «AUTO-OFF» system switches off your steam generator. • To start your ironing again, press «ON-OFF» button.

  • Page 27: Maintenance And Storage

    MAINTENANCE AND STORAGE 3.1 Emptying the scale collector* • For long lasting steam performance, empty the scale collector every now and then. • Switch off and unplug the appliance.
  • Page 28 MAINTENANCE AND STORAGE Appliance must be completely cooled down and unplugged for at least an hour before emptying the scale collector. • Fully unscrew collector and pull it out of the base unit. Do not use your steam generator without reinserting the scale collector.

  • Page 29: Rinsing The Boiler

    MAINTENANCE AND STORAGE 3.2 Descaling your generator • The flashing 'anti calc' indicator alerts you when descaling is required. • Switch off the unit by pressing the «Off» button, then unplug the appliance and allow it to cool completely. • Detach Flush accessory from the base of the appliance.
  • Page 30 MAINTENANCE AND STORAGE • If you do not have the model with the flush accessory, then hold your iron above the sink. • Press blinking «Anti calc» button for 3 2min seconds. • The descaling process is performed, during which the iron will emit water and steam for 2 minutes.
  • Page 31 MAINTENANCE AND STORAGE • Next, put back the collector, as well as the flush accessory. • Please make sure to empty the water tank before replacing the removable stand underneath the appliance. * Depending on model...

  • Page 32: Cleaning

    MAINTENANCE AND STORAGE 3.3 Cleaning Appliance must be completely cooled down and unplugged for at least 2 hours before emptying the scale collector. • Clean soleplate with a soft damp cloth. Do not use detergent or descaling products for cleaning the soleplate. •...
  • Page 33 MAINTENANCE AND STORAGE 3.4 Storage • Switch off and unplug the appliance. • Store the power cord in its side storage place. • Store the steam cord in its side storage place without stretching it too much. • Store the flush accessory in its holder placed underneath appliance.*...

  • Page 34: Troubleshooting

    TROUBLESHOOTING Problem Possible Causes Solutions Your iron is You have just filled the Press the steam control producing tank or changed the button continuously for little or no anti-calc cartridge, or few minutes pointing it steam. you have just started away from your linen, in using it.
  • Page 35 Problem Possible Causes Solutions Water streaks Your ironing board is Check that your ironing appear on saturated with water board is suitable. We because it is not recommend that you the linen. suitable for use with use a vented/mesh an appliance. type ironing board.
  • Page 36 Problem Possible Causes Solutions The anti calc You have not pressed Press the reset button indicator the reset button. until the light stops is still flashing. flashing after replacing the cartridge. The anti calc The descaling See section "descaling indicator procedure has not your generator".
  • Page 39 1820005128 - 31/20...
