Summary of Contents for Hyundai HYCH700

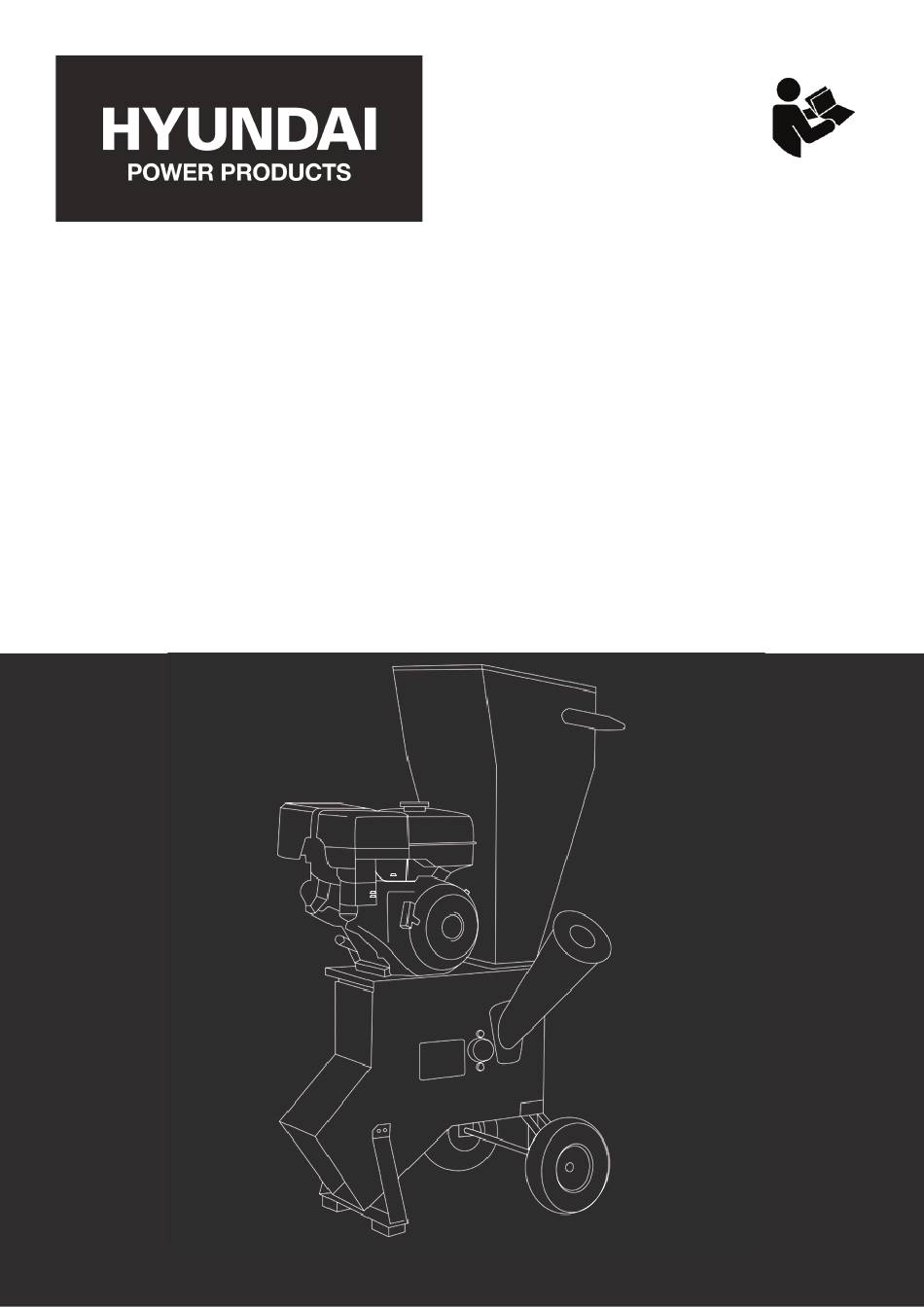

- Page 1 PETROL WOOD CHIPPER HYCH700 / HYCH1400 Instruction Manual...
- Page 2 IMPORTANT Do not forget to register your EXTENDED 3 YEAR HYUNDAI WARRANTY within 30 days of purchase. http://www.hyundaipowerequipment/warranty 3-6. Safety Instructions 7-8. Assembly 9-12. Operation 13-14. Maintenance Storage Troubleshooting Technical Data Declaration Of Conformity...
- Page 3 1. Hopper 2. Petrol Engine 3. Chipper Outlet 4. Chipper Funnel 5. Choke 6. Fuel Tap 7. ON/OFF Switch 8. Throttle 9. Fuel Tank Cap 10. Air Cleaner 11. Exhaust 12. Pull Start Handle...
-
Page 4: Safety Warnings
SERVICING MACHINERY: Make sure switch is in the OFF PACKAGE CONTENTS position before reconnecting. • MAINTAIN MACHINERY WITH CARE: Keep blades sharp and HYCH700/HYCH1400 PETROL WOOD CHIPPER clean for best and safest performance. Follow instructions for Petrol Wood Chipper lubricating and changing accessories. 1x Feed Hopper •... -
Page 5: Additional Safety Instructions
ADDITIONAL SAFETY INSTRUCTIONS • SECURE WORKPIECE: Use clamps or a vise to hold the workpiece when practical. A secured workpiece protects your hands and frees both hands to operate the machine. NOTE: READ THROUGH THE ENTIRE MANUAL BEFORE • DO NOT OVERREACH: Keep proper footing and balance at all STARTING ANY POWER PRODUCTS. -
Page 6: Carbon Monoxide Safety Information
CARBON MONOXIDE SAFETY INFORMATION OPERATION SAFETY INFORMATION WARNING WARNING • Carbon Monoxide is a colourless and odourless gas. Inhaling This machine presents serious injury hazards to untrained users. this gas can cause death as well as serious long term health Read through this entire manual to become familiar with the controls problems such as brain damage. - Page 7 ASSEMBLY (d) Place the funnel over the studs in the side of the chipper/shredder and secure it with flat washer (Ø8, 3pcs), spring washer (Ø8, 3pcs) and locknut (M8, 3pcs). The major components of this chipper/shredder have been assembled at the factory. Some minor assembly is required. The assembly process will use all the parts and hardware listed in the package contents.
-
Page 8: Fuel And Oil
FUEL & OIL FUEL CAUTION (g) The chipper/shredder is powered by a four-stroke engine, which uses unleaded petrol fuel. Use a suitable funnel to transfer the fuel to the engines fuel tank, taking care not to spill any fuel or over fill the All fuels are flammable, keep fuel away from all sources of ignition for fuel tank. -
Page 9: Operation Checks
OPERATION OPERATION CHECKS Place the chipper/shredder on a flat, firm, dirt or grass surface and WARNING point the outlet in a safe direction. Damage to your eyes, hands, and ears could result from using this Check the oil and gas levels before starting the engine. machine without proper protective gear. - Page 10 Turn the engine ON/OFF switch to the ON position (10.1). When the engine has been successfully started and is running smoothly return the choke lever to the OFF position (12.1). Hold down the engine firmly with one hand on the frame. With the other hand grip the recoil starter cord handle and pull slowly until resistance is felt indicating that the recoil starter is engaged.
- Page 11 STOPPING (a) Slowly feed the material into the hopper. DO NOT try to stuff too much material in at one time or the machine will jam. (b) Use a 1” diameter branch to push the material into the hopper if To stop the engine, turn the engine ON/OFF switch to the OFF necessary (fig.16).
-
Page 12: Chipping Tips
SHREDDING TIPS Feed material into the chipper/shredder slowly. If the engine begins to bog down, you are feeding too fast. Roots and dirty material will dull or damage the blades. Remove the chips often. Allowing the chips to pile up to the outlet will cause the outlet to clog. Avoid shredding wet leaves or brush to reduce clogging. -
Page 13: Maintenance
MAINTENANCE ENGINE OIL Place the machine on a level surface and warm up the engine for WARNING several minutes. Then stop the engine. Remove the oil filler cap. Turn OFF the machine, allow all moving parts to come to a complete stop, and disconnect the spark plug wire before moving the machine, Place an oil pan under the engine. -
Page 14: Replacing Blades
FILTER REPLACING BLADES After every 150 hours of running or every three months the fuel tank Sharpen or replace the blades as soon as the chipping performance filter (20.1) should be removed and cleaned. Remove the fuel tank begins to deteriorate, or if you notice dings, chips, or cracks. filler cap and the filter, clean the filter thoroughly using environmentally friendly water based degreasing agent and refit. - Page 15 BELT STORAGE Follow these guidelines when storing your chipper/shredder. Replace or tighten the v-belt if you notice the motor running and the Remove the spark plug wire to prevent unauthorized starting. chipper blades are not spinning. Place the chipper/shredder in a dry, level area. If the chipper/shredder TURN OFF THE MACHINE, ALLOW ALL MOVING PARTS TO is tipped it may leak oil and petrol.
-
Page 16: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION Engine Will Not Start Control levers are not in correct Make sure the ON/OFF switch is ON, the fuel shut-off valve is open, positions for starting. and the choke and throttle controls are in the start position. Spark plug wire is not connected to the Connect the spark plug wire or replace the spark plug. -
Page 17: Technical Data
Register your 3 year warranty within 30 days of purchase at: https://hyundaipowerequipment.co.uk/warranty Full warranty term and conditions can be found on the HYUNDAI website: www.hyundaipowerproducts.co.uk... -
Page 18: Ec Declaration Of Conformity
GENPOWER LTD confirms that this HYUNDAI POWER PRODUCT conforms to the following CE Directives: EN ISO 14982:2009 EN13683:2003+A2 AFPS GS 2014:01 EC DECLARATION OF CONFORMITY The undersigned, as authorised by: Genpower Ltd Declares that the following equipment manufactured under license by Hyundai Korea... - Page 19 UPDATES Our manuals are constantly being reviewed and updated. Should you find an error, omission or something you find unclear, please contact us for assistance. We reserve the right to make any modifications without prior notice whenever necessary. All our manuals can be found at: www.hyundaipowerproducts.co.uk...
- Page 20 Isaac Way, London Road, Pembroke Dock, UNITED KINGDOM, SA72 4RW T: +44 (0) 1646 687 880 F: +44 (0) 1646 686 198 E: info@hyundaipowerequipment.co.uk www.hyundaipowerproducts.co.uk mported/Distributed by Genpower Ltd for The United Kingdom & Ireland Licensed by Hyundai Corporation, Korea...
