Section 8-9 HV Assembly

8-9-1

Disassembly/Assembly of HV Assembly

Follow steps below and refer 8-15
1.) Remove Top Cover. Refer.8-2. For FRU Details refer
2.) Remove the Shield Plate.
3.) Remove the cable to the HV Power Supply.
4.) Remove 2 screws on the clamp.
5.) Pull the HV PCB upward (cable has to be removed).
6.) For assembly follow the reverse order.
Table 8-12 Functional tests
Service Manual

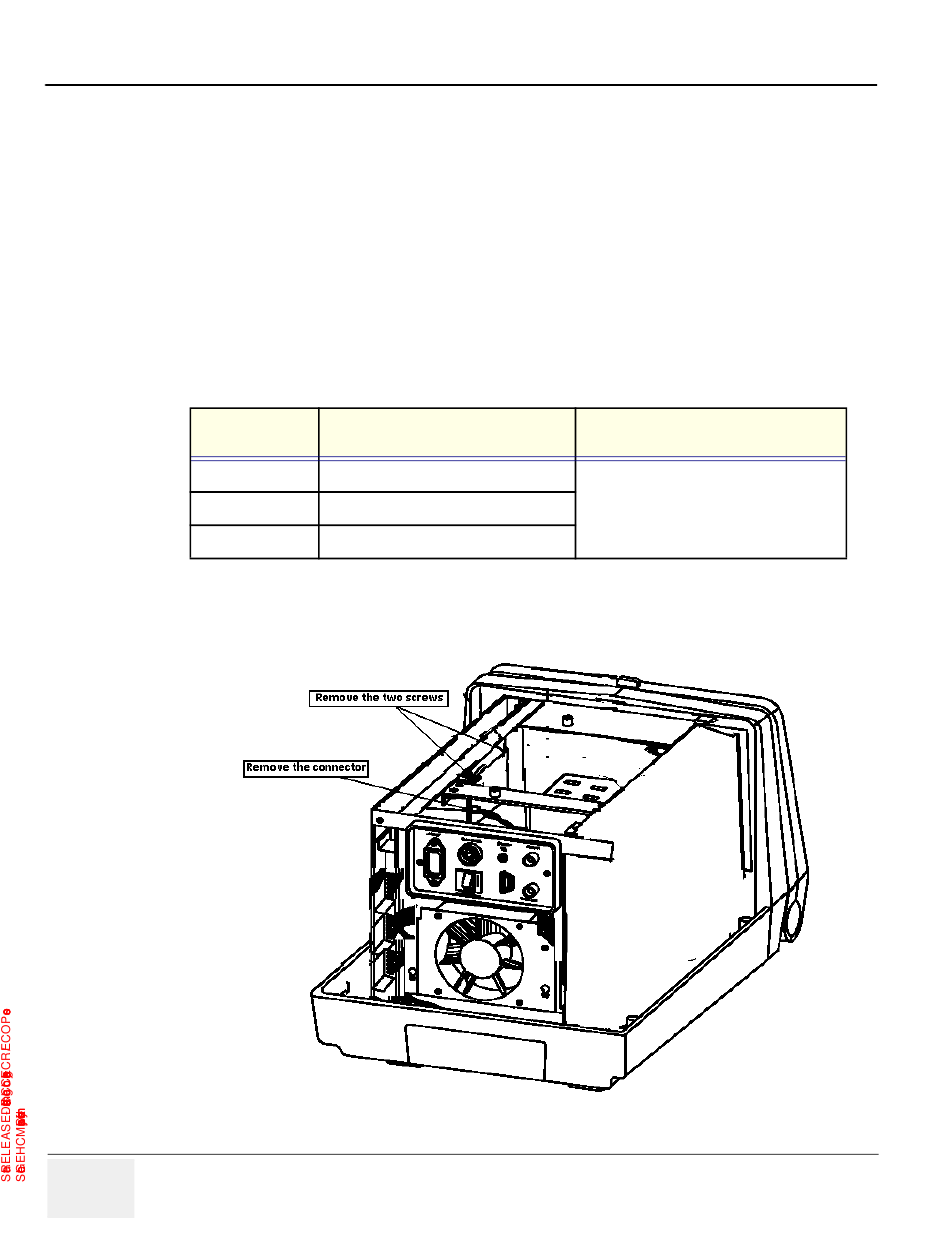

Figure 8-15 Disassembly/Assembly of HV Assembly
Page 8-24
Ap p r o v e d Do c u m e n t - 5 3 0 5 8 8 0 - 1 0 0 T PH_ r 3 . p d f Pa g e 1 5 3 o f 1 9 7
3
EVISION
Section Functional Test/ Diagnostic Test
4-2-1 Power ON/ Boot up
4-2-1 Power OFF/ Shut down
4-3 Functional Checks
Section 8-9 - HV Assembly
LOGIQ™ 100 PRO S
ERVICE
Debrief Script
Service manual direction 5305880-100,
Section 8-9-1.Equipment passed all
required tests and is ready for use.
