BENDIX DURAFLO 596 Installation Instructions

BENDIX DURAFLO 596
®
13 x
85mm
Head Bolt
Washer
Water
Outlet
(Tap Here
w/Mallet)
Pivot Arm
Stud Slots
Slotted Plunger
Guide Pin Opening
11
9
7
12
10
8
13

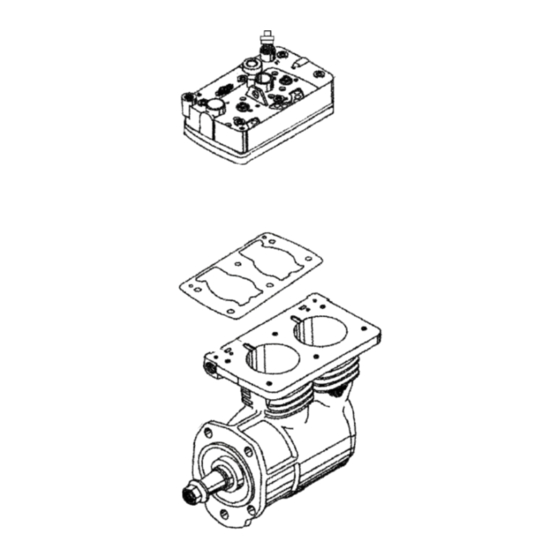

Figure 1 – Bendix DuraFlo 596
®
GENERAL
Depending upon the location of the compressor on the
vehicle and ease of access, this kit may be installed without
complete removal of the compressor. All kit components
and their location in the head are shown in Figure 1 above.
COMPRESSOR UNLOADER MAINTENANCE KIT
™
Cylinder
Head & Valve
Body Assy.
1
2
3
5
4
6
Cylinder
Block
Unloader Maintenance Kit Contents
™
Kit Contents
Item No. Description
1 Sliding Inlet Valve
2 Pivot Arm
3 Pivot Stud
4 Guide Pin (Long)
5 Guide Pin (Short)
6 Gasket
7 Plug (Metric & US)
8 O-Ring
9 Unloader Plunger
10 O-Ring
11 Split Ring
12 Spring
13 Lubricant
Qty.
2
2
2
2
2
1
2
2
2
2
2
2
1
1
