Required Tools; Installation - Cub Cadet FastAttach Brush Guard Operator's Manual

• 9/16" Socket Wrench (1)
Model 19A30038100 FastAttach™ Brush Guard
kit is designed for use with select Cub Cadet
XT1 & XT2 Enduro Series Lawn Tractors.
WARNING!
Disengage the PTO,
engage the brake lock, and stop the
tractor engine before performing
any preparation procedures. Place
the tractor on a firm and level
surface before beginning installation or removal
procedures.
WARNING!
The exhaust system
and surrounding areas are HOT. To
avoid personal injury, allow the
tractor to cool before beginning
any brush guard installation or
removal procedures.

Installation

1. Attach (689-00685) and (689-00686) to
tractor frame using four 3/8 bolts (710-
3001) and four locking nuts (712-04065)
found in hardware pack 689-00687. See
Figure 1-1.
Note: If single tube bumper is installed
on the tractor without FastAttach™
bracket, use the following alternate step.
Remove bumper by unbolting 4 fixing
bolts. Using 4 new bolts (710-06012A),
attach right and left FastAttach™
brackets (689-00685) (689-00686) to the
outside of the frame, re-using the riv-
nuts in the bumper in place of nuts (712-
04065) provided. It is recommended to
hand start the bolts prior to tightening.
Once bolts are in place, tighten all 4
bolts.

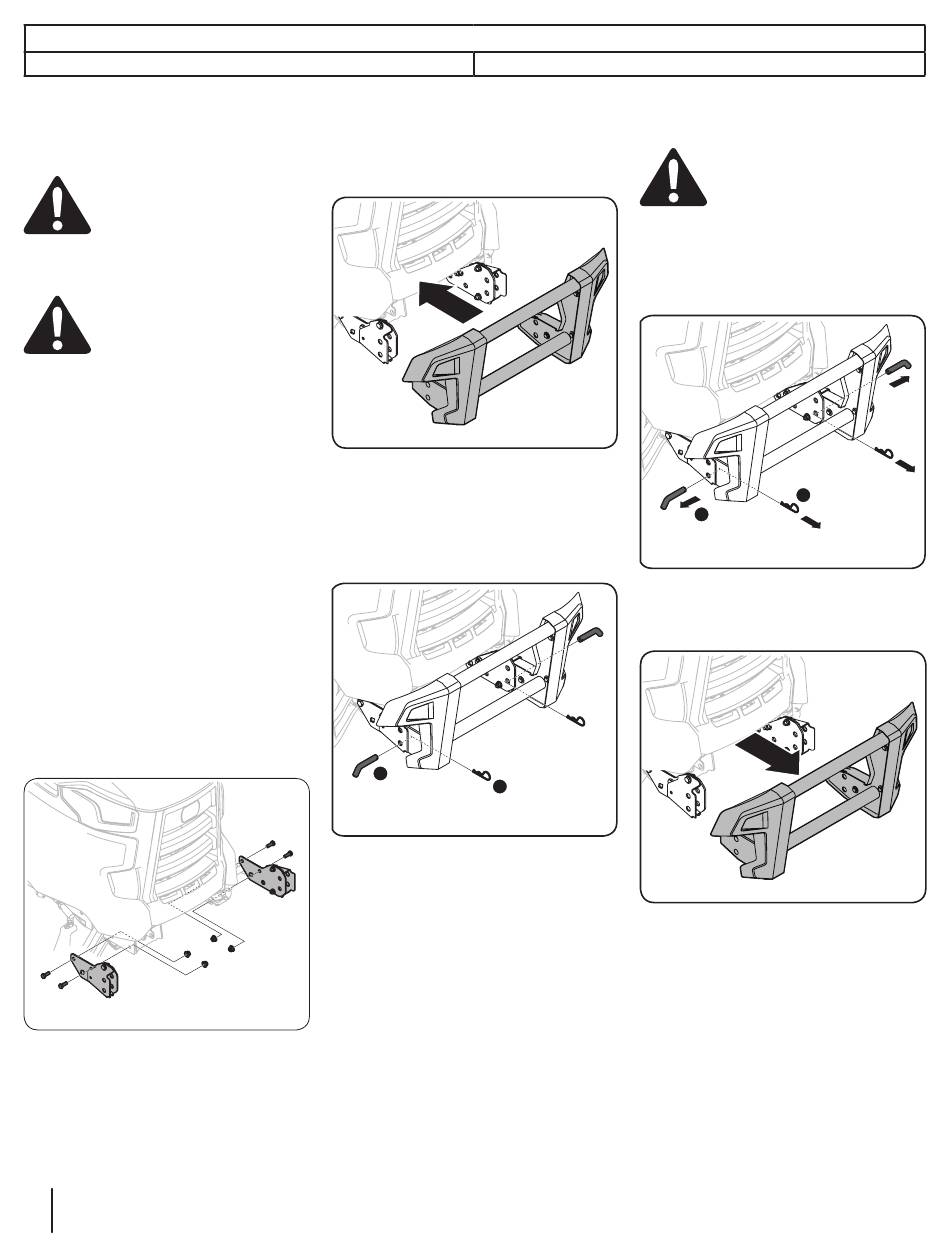

Figure 1-1
4 S 2— A
ection SSembly
2. Align the brush guard assembly with the
FastAttach™ brackets installed in step 1
and push assembly together. See Figure
1-2.
3. Install pins (747-06936) on Right and
Left side of brush guard and then secure
with two cotter pins (714-3020) found
in hardware pack 689-00687. See Figure
1-3.
1
Note: Pulling up lightly on the brush
guard may make installation of the pins
easier.
& S -U
et p

Required Tools

Figure 1-2
2
Figure 1-3
• 9/16" Open/Box Wrench (1)
Removal
WARNING!
and surrounding areas are HOT. To
avoid personal injury, allow the
tractor to cool before beginning
any brush guard installation or
removal procedures.
1. Remove two cotter pins (714-3020), and
then pull the pins (747-06936). See Figure
1-4.
2
Figure 1-4
2. The brush guard assembly may now be
removed. See Figure 1-5.
Figure 1-5
Note: The FastAttach™ brackets
(689-00685/689-00686) may be left
in place for use with the 19A30037100
FastAttach All-Season Plow and other
front FastAttach™ Attachments. See
CubCadet.com for a complete list of
available products.
