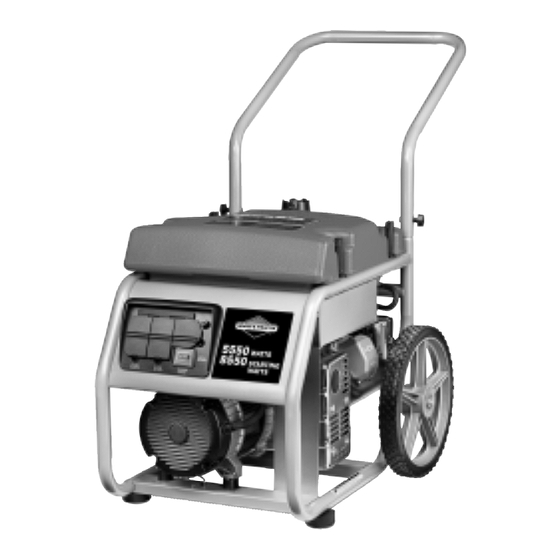

Illustrated Parts List
Model / Modèle / Modelo
Questions? Help is just a moment away!
Vous avez des questions? Vous n'avez pas besoin
030324
d'aller loin pour trouver de l'aide!
Preguntas? La ayuda es justa un momento lejos!
Call: Generator Helpline
Appelez: Ligne d'assistance de Générateur
Llame: Línea Directa del Generador
1-800-743-4115 M-F 8-5 CT
BRIGGSandSTRATTON.COM
BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC
JEFFERSON, WISCONSIN, U.S.A.
Manual No. 199718A Revision C (03/19/2007)
Advertisement
Related Manuals for Briggs & Stratton 30324
Summary of Contents for Briggs & Stratton 30324
-
Page 1: Illustrated Parts List
Illustrated Parts List Model / Modèle / Modelo Questions? Help is just a moment away! Vous avez des questions? Vous n'avez pas besoin 030324 d'aller loin pour trouver de l'aide! Preguntas? La ayuda es justa un momento lejos! Call: Generator Helpline Appelez: Ligne d'assistance de Générateur Llame: Línea Directa del Generador 1-800-743-4115 M-F 8-5 CT... -
Page 2: Exploded View - Main Unit
EXPLODED VIEWS AND PARTS LISTS EXPLODED VIEW - MAIN UNIT Copyright © 2007 Briggs & Stratton Power Products Group, LLC. All rights reserved. No part of this material may be reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power Products Group, LLC. - Page 3 EXPLODED VIEWS AND PARTS LISTS EXPLODED VIEW - PARTS LIST Item Part # Description J197129GS KIT, Frame 194150GS KIT, Vibration Mount 45° WASHER, M8 Lock 190220GS HOUSING, Engine Adapter NUT, Hex M8 - 1.25 ASSY., Alternator (see page 5) TPHMS, M8 - 1.25 x 35 96796GS WASHER, M8 Flat 67989GS...
- Page 4 EXPLODED VIEW AND PARTS LIST - CONTROL PANEL Item Part # Description 197471GS PANEL, Control 197472GS COVER, Outlet Flip 188890GS COVER, Back Panel 197731GS OUTLET, 120V, 15/20A Dplx 189165GS NUT, 5/32 Pal 197729GS MODULE, Led 197958GS SCREW, 3 x 6, Tapping 202030GS BREAKER, Circuit, 20A 191481GS...
- Page 5 EXPLODED VIEWS AND PARTS LISTS EXPLODED VIEW AND PARTS LIST - ALTERNATOR Item Part # Description 186059GS ADAPTER, Mounting, Alternator 191043GS ASSY, Rotor (Includes Item 12) 191042AGS STATOR 186060GS RBC, with O-Ring (p/n 189197GS) 86308CGS HHCS, M6 - 1.0 x 130 SEMS 91825GS ASSY, Holder, Rectifier/Brush 66849GS...
