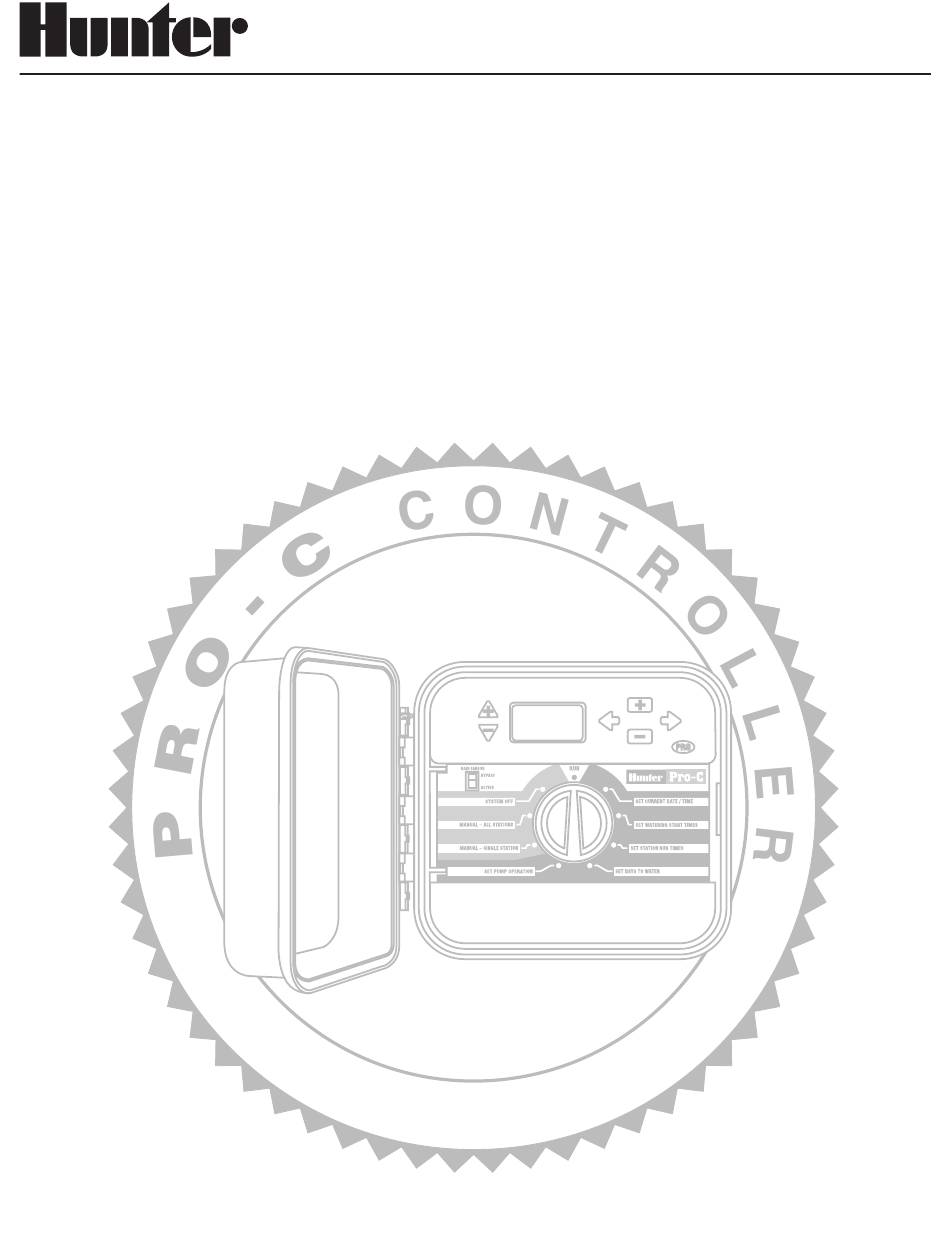

  • Page 1 ® P R O D U C T I N F O R M A T I O N Pro-C Controller A Complete Family of Full-Featured Residential and Light Commercial Controllers ®...

  • Page 2: Table Of Contents

    ® TABLE OF CONTENTS Pro-C Controller Product Overview .................1 Product Features and Benefits ..............2 Product Comparisons................11 Technical Information.................12 Product Explanation................12 Installation ..................13 Programming ..................17 Troubleshooting Guide ...............23 SRR Remote Control Product Overview ................24 Product Features and Benefits ............24 Installation and Programming.............26 Technical Information.................30...

  • Page 3: Pro-C Controller

    With its ability to customize to the particular size you need, the Pro-C will always be the right choice. Being a mod- ular system, the new Pro-C also makes inventory a breeze for contractors —...

  • Page 4: Product Features And Benefits

    Simply stock the base unit for all jobs and keep a box of modules The Pro-C controller is offered as an out- to easily add stations to the controller as door model when the need for weather required.
  • Page 5 The Pro-C has what every user of elec- tronic controllers has wished for: the abil- a bare station control wire). When a...
  • Page 6 The Pro-C allows for many different irri- buttons to make the adjustments. No other gation applications using three completely programming method is easier.
  • Page 7 With its 365-day, leap year intelligent cal- weather changes, without reprogramming endar the Pro-C makes programming true the entire controller. A unique bar graph Odd/Even day watering possible, automat- (thermometer display) in the large LCD ically correcting for 31-day months.
  • Page 8 Need to make certain that the controller ICR remote does not water on a specific day or days receiver. The of the week? The Pro-C handles this task SRR remote with ease. When Interval programming has control is great been selected as the Day Schedule this...
  • Page 9 Delays from 0 to 60 seconds are allocated in 5-second incre- The Pro-C allows you to turn off the con- ments and then up to 4 hours in 1-minute troller for a predetermined period of time increments.
  • Page 10 For systems that require Pro-C models can be supplied with a 110 only certain zones to receive a boost in VAC/60 Hz transformer for domestic use pressure from a pump (such as rotor zones)
  • Page 11 PC using SRP start time to the latest start time. The Pro-C software version 2.0 or will also shift or “rubber band” the start greater. Download your...
  • Page 12 Hunter IMMS™. Best of all it is able after empty start time slots. The controller to team with any or all of the Hunter con- will fill the start #1 slot first, and then the trollers, including the Pro-C.

  • Page 13: Product Comparisons

    Pro-C Controller PRODUCT COMPARISONS HUNTER Rain Bird Rain Bird Rain Bird IRRITROL IRRITROL IRRITROL NELSON WEATHERMATIC TORO ® ® ® ® ® ® ® ® ® ® Pro-C E-CLASS ESP-Si TOTAL RAIN RAIN SMARTZONE WEATHERMATE CUSTOM CONTROL DIAL PLUS DIAL...

  • Page 14: Technical Information

    PC-300i – base model indoor plastic cabi- • Programmable rain delay for 1-7 days net with plug-in 115 VAC transformer, • Compatible with Hunter’s SRR remote expands to 12 stations control system and SRP Windows PC-300 – base model outdoor locking ®...

  • Page 15: Installation

    Connecting Station Modules… can snap shut without damaging wires. The Pro-C controller is supplied with a factory-installed base module for up to 3 stations. Additional modules may be added Valve 4 in increments of 3 stations to expand the controller’s station capability.
  • Page 16 15 feet (4.5 m) away from both the pump start relay and the pump. When a pump is to be operated by the controller, a pump start relay must be used. Hunter offers a full range a pump start relays for most applications.
  • Page 17 Master Valve Wire Connecting an SRR or ICR Remote Common Wire Control (Not Included)… Relay holding current draw must not The Pro-C controller is shipped with a exceed .28 amps. Do not connect the con- SmartPort wiring harness, allowing for ®...
  • Page 18 White The SmartPort is now and set on your personal computer, upload ® ready for SRR or ICR then directly into the Pro-C through the remote control use. Please SmartPort outlet and the SRP program- ® refer to the Owner’s ming tool.

  • Page 19: Programming

    Pro-C Controller PROGRAMMING Programming the Controller… 2. The current year Two key features of the Pro-C that make will be flashing in programming a snap are its clear, easy-to- the display. Use read LCD display and its easy-to-use dial but- design.
  • Page 20 However, it is recommended that one NOTE: Regardless of the order in which program is completed before going on the start times are entered, the Pro-C will always arrange the start times in to the next program. Jumping between chronological order when the dial is...
  • Page 21 Odd and RAIN SENSOR manual bypass switch when BYPASS Even will appear in the display. ACTIVE using rain sensors (the Pro-C 2. Interval is flashing SYSTEM works with the Hunter press the button. Mini-Clik , plus some other rain, wind, ®...
  • Page 22 ® PROGRAMMING (Continued) Run… 2. You can select program A, B, or C After programming is com- by pressing the button. plete, turn the dial to RUN to 3. Press the button until desired enable automatic execution of starting station is displayed. all selected programs and start 4.
  • Page 23 Seasonal Adjust is used to make global run There are three advanced features avail- time changes without re-programming the able to customize the Pro-C to more com- entire controller. This feature is perfect for plex watering requirements. One of these making small changes that are necessary features is “hidden”...
  • Page 24 ® PROGRAMMING (Continued) displayed and the DAYS LEFT icon This feature allows the user to insert a will illuminate. The 1 will be blinking delay between when one station turns off at this point. and the next station turns on. This is 3.

  • Page 25: Troubleshooting Guide

    Pro-C Controller TROUBLESHOOTING GUIDE PROBLEM CAUSES SOLUTIONS There is no display. Check AC power wiring. Correct any errors. The display reads "ERR". Electrical noise is entering the Check the SmartPort wiring ® system. harness. If the wires were extended then they will need to be replaced with shielded cable.

  • Page 26: Product Overview

    One Transmitter, One Receiver a Simple and Reliable Remote Control for Does the Job… use with our Pro-C, ICC and SRC control- Portable and reusable at every location lers. The SRR can offer the installer fea- With the SRR, a contractor can visit one tures that other remotes can’t, at a price...
  • Page 27 Small and Compact Size... Slips into shirt or pants pocket Both the transmitter and receiver are small enough to fit into the palm of your hand. And because they are so compact, they can be easily transported in a shirt or pants pocket during daily uses.

  • Page 28: Installation And Programming

    (Radio Shack P/N 278-513) 12” below the Pro-C controller. (Note: to minimize the possible effects of the harness may be installed out doors electrical noise. See diagram below.
  • Page 29 SRR Remote Control make a note of the new settings, since the “ON” button. The word when the battery is removed and a new “ADDRESS” will now illuminate and one installed, the transmitter will revert the current address will be blinking. back to the original settings.
  • Page 30 The SRR System will allow you to not override the sensor for manual opera- remotely turn on and off any station on tion. your Pro-C controller with the press of a Transmitter Unit button. Once on, the station will run for Changing the Maximum Station Number...
  • Page 31 Likewise, perhaps you own a 2. Do not install the outlet of the wiring 12-station Pro-C controller, so in this case harness in a basement or underground you will want to access the stations above location. The higher, the better.

  • Page 32: Technical Information

    SRR - KIT EXAMPLE: MODEL FEATURES KIT = Transmitter, Receiver, Wiring Harness and Owners Manual SCWH = 25' Shielded Cable Connection Kit TR = Transmitter R = Receiver Additional SRR owner’s manuals can be ordered by Hunter part number LIT-217.

  • Page 33: Srp Programmer

    OVERVIEW AND BENEFITS New, from the Irrigation Innovators, Windows™ Compatible Software… Hunter is proud to present an idea way Works with most computer systems ahead of its time: the SRP – making con- The SRP version 2.0 software is compat- troller programming completely effortless.

  • Page 34: Technical Information

    ® PRODUCT FEATURES AND BENEFITS (Continued) with a substantial cus- tomer base. Simply develop the watering schedule by season, store the schedule by project site, and download the appropriate schedule when it is time to change the controllers. TECHNICAL INFORMATION Model SRP-KIT - Simple Reliable Programmer Dimensions...
  • Page 36 ® Hunter Industries Incorporated • The Irrigation Innovators © 2002 Hunter Industries Incorporated 1940 Diamond Street • San Marcos, California 92069 • TEL: (1) 760-744-5240 • FAX: (1) 760-744-7461 www.HunterIndustries.com P/N 700757 LIT-325 3/02...
