EasyPro LED4WWK Instructions For Operation

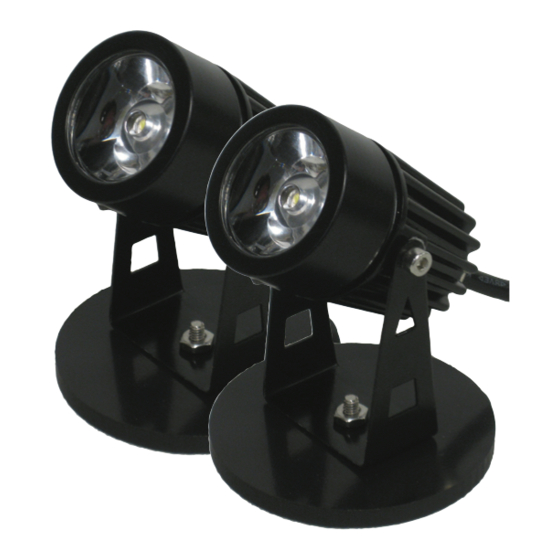

Underwater Warm White LED Light Kit
Two, 3 Watt Submersible, LED Lights with 45 Watt Transformer
Thank you for purchasing an EasyPro submersible LED pond light kit. With these warm, white LED lights
you can make your fountain glow, illuminate your pond from within, highlight your waterfall and extend the
enjoyment of your water feature in the evening hours. The LED4WW fixtures can be used in the landscape out
of the water or as a submersible underwater light with other warm white LED or halogen fixtures.
LED4WW Specs
•
Aluminum housing, HDPE base
•
Integrated driver
•
Power usage at 12v AC: 3 watts
•
37° beam angle
•
Color Temperature: 2800 K
•
15 ft. of #18-2 with Quick Connect ends
•
2 year warranty
(Magnetic 12 vac transformer required)
•
Free of UV/IR radiation
•
Mercury free, RoHS compliant
EPT45 Transformer Specs
•
Input: 120Vac, 60Hz
•
Output: 12Vac, Max 45 watts
•
Built-in photo-eye with four settings: Auto, 4, 6, or 8 hour
•
Integrated output screw terminals
•
3' SJTW 12 AWG cord
Safety and Electrical Connections
1. Always disconnect the electrical supply before handling, maintaining, repairing or installing any pond equipment.
2. Light(s) must be attached to a 12 volt UL listed magnetic transformer.
3. Never hook the lights directly to a 120 volt or higher outlet.
4. Connect the transformer only to a 120 volt receptacle that is protected by a Ground Fault Circuit Interrupter. (GFCI)
5. Do not use this product in bathrooms or swimming pools.
6. All electrical work must be performed by a qualified technician. Always follow the National Electrical Code (NEC) or
the Canadian Electrical Code as well as all local, state and provincial codes. Code questions should be directed to
your local electrical inspector. Failure to follow electrical codes and OSHA safety standards may result in personal
injury or equipment damage. Failure to follow manufacturer's installation instructions may result in electrical shock,
fire hazard, personal injury or death, damaged equipment, provide unsatisfactory performance and may void
manufacturer's warranty.
LED4WWK
Instructions for Operation • Safety • Warranty
