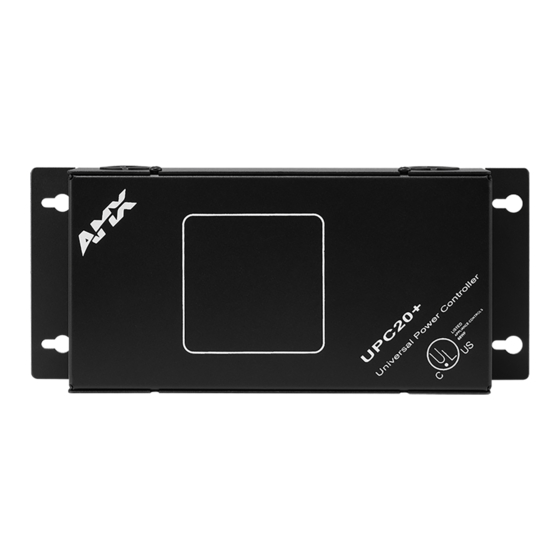

AMX UPC20 Plus Quick Start Manual

ATTENTION: READ THIS FIRST!
For more detailed installation, configuration, programming, and operating instructions,
refer to the UPC20+ Universal Power Controller Instruction Manual available on-line at
www.amx.com.
IMPORTANT SAFETY INSTRUCTIONS
When using your UPC20+ (FG672), basic safety precautions should always be
followed, including the following:
!
1. Read and understand all instructions before using. Close supervision is
necessary when any appliance is used by or near children. Do not leave appli-
ance unattended while in use.
2. Care must be taken as burns can occur from touching hot parts.
!
3. The appliance switch is provided with the symbols 0 indicating off and 1
indicating on. The symbols O and | may be used for this purpose.
4. Do not operate appliance with a damaged cord or if the appliance has been
dropped or damaged - until it has been examined by a qualified serviceman.
5. Position the cord so that it will not be tripped over, pulled, or contact hot surfaces.
6. If an extension cord is necessary, a cord with a current rating at least equal to
that of the appliance should be used. Cords rated for less amperage that the
appliance may overheat.
7. Always unplug appliance from electrical outlet before cleaning and servicing and
when not in use. Never yank cored to pull plug from outlet. Grasp plug and pull to
disconnect.
8. Let appliance cool completely before putting away. Loop cord loosely around
appliance when storing.
9. To reduce the risk of electric shock, do not immerse this appliance in water or
other liquids.
10. To reduce the risk of electric shock, do not disassemble this appliance, but take it
to a qualified serviceman when service or repair work is required. Incorrect
reassembly can cause electric shock when the appliance is used subsequently.
11. The use of an accessory attachment not recommended by the manufacturer
may cause a risk of fire, electric shock, or injury to persons.
12. Connect this appliance to a grounded outlet.
13. Disconnect this unit from its source of supply before replacing any part.
14. This appliance has a polarized plug (one blade is wider than the other). To
reduce the risk of electric shock, this plug is intended to plug into a polarized
outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If
it still does not fit, contact a qualified electrician. Do not modify the plug in any
way.
SAVE THESE INSTRUCTIONS
ATTENTION INSTALLER
FACTORY SET TO INOPERATIVE MODE
(UNIT WILL NOT WORK UNTIL DIP SWITCHES ARE SET)
SEE CHART ON LID TO SET
DIP SWITCHES FOR ACTIVE MODE
FIG. 1
UPC20+ inoperative mode warning label
UPC20+ Wiring Requirements
In the United States, the UPC20+ must be wired by an authorized electrician in
accordance with the National Electrical Code, ANSI/NFPA 70-1987, as well as all local
codes.
In the European community, the UPC20+ unit must be wired by an authorized
electrician in accordance with all applicable European codes.
A readily accessible disconnect device shall be incorporated into the fixed wiring.
An insulated earthing conductor that is identical in size, insulation material and
thickness to be earthed and unearthed branch circuit supply conductors, except that it
is green with or without one or more yellow stripes, is to be installed as part of the
branch circuit which supplies the unit or system. The earthing conductor described is
to be connected to earth at the service equipment, or supplied by a separately derived
system, at the supply transformer or motor generator set.
Product Information
Using Motor Control mode, the UPC20+ output alternates between two relays,
providing a brief pause in-between relay contacts, to protect the motor. A timing
adjustment potentiometer is user adjustable for automatic release of the relays. (The
range is 0 to 90 seconds). 1-, 2-, and 3- button control modes are selectable.
In Power Control mode, the UPC20+ provides power control for two independent
circuits with a combined total load of 20 Amps. Single-button momentary/latching and
2-button latching modes are selectable.
• Momentary Power Relay contacts are closed only as long as a closure from
input to common is maintained.
• Latching Power Relay contacts are toggled (from open to closed and closed to
open) each time a closure from input to common is momentarily pulsed.
Note: The UPC20+ cover contains information on high voltage wiring, low voltage
wiring, and DIP switch settings.
The UPC20+ will work the NXC-I/O10 input/output control card.
Specifications
UPC20+ Specifications
Power Self-powered when used with 110/220 VAC
Power input (for control ~
120/240V
board)
-or-
12 VDC, 0.2A max
Power output per relay • 20A @ 120/240V
• 6A @ 277V
• 1 HP @ 120V
• 2 HP @ 240V
Total Current through both relays CAN NOT exceed 20 amp.
Maximum operating ambi- 55°C
ent temperature
Approvals UL / C-UL / CE
Includes • 1-, 2-, and 3-button logic modes
• Local test switches with status LEDs
• 120, 240, and 277 VAC control capability
Inputs • 4 closure inputs, operation defined by mode.
• One IR remote sensor input.
• Motor Control mode alternates between the timed operation of
the two power relays.
• Power Control mode allows independent control of both power
relays.
Control Ports Two 2400 W power relays. Total combined current through both
relays is 20 Amps.
Input Power Switch (S1) • Set this switch according to the high voltage wiring that will be
connected to terminals 5 and 6 on P1.
• Set switch S1 to the line input voltage value used before
applying power to the UPC20+.
High Voltage Terminal Block High voltage input and output wiring for motor or power control.
(P1)
Low voltage and Control Contact closure, open-collector or CMOS logic level remote
Terminal Block (P2) control wiring. Inputs 5 - 8 are referenced to the common
connection at pin 4.
Jumper JP1 Sets control mode of the unit to contact closure or remote sensor
serial data.
Test Switches (PB1 and Provides local operation of relays K1 and K2 for testing power
PB2) circuits or motors connected to the relay terminals. An LED
indicates relay power applied.
Motor Time Delay Potenti- Only used in motor control modes. User adjusted for setting relay
ometer (R8) release time between 0 and 90 seconds.
DIP Switch (S2) Provides selection of control mode options. See the Motor Control
Mode DIP Switch S2 Positions table on page 1 and the Control
Input Wiring to Connector P2 Terminals table on page 2 for control
mode settings.
Enclosure Metal with black matte finish, knockouts for conduit.
Dimension (HWD) • 8.5" (10.5" including flange) x 4.5" x 2.2"
• (220 mm (270 including flange) x 110 mm x 60 mm)
Weight 3.0 lbs. (1.4 kg) with flange
Options 12 VDC power supply (for 277 VAC applications)
Control Options Modes
Note: If UPC20+ is powered up when changes are made to Dip Switch
settings, then power must be cycled before changes can take effect.
Motor Control Mode DIP Switch S2 Positions
1 2 3 4
On On Off On
Off Off Off On
Off On Off On
• Single Button Mode operates with one pushbutton in a sequence: Up, Stop,
Down, Stop and so on for each successive button press.
• Two/Three Button Mode operates with two pushbuttons, one for Up and one for
Down.
• Momentary On/Off operates only when the button is pressed.
Quick Start Guide
UPC20+
, 50-60 Hz, 0.05/0.025A
~
, 50-60 Hz (RESISTIVE LOAD)
~
, 50-60 Hz (FLUORESCENT BALLAST)
~
, 50-60 Hz (INDUCTIVE LOAD)
~
, 50-60 Hz (INDUCTIVE LOAD)
Control Mode
Single button
2-button
Momentary On/Off
