THESE NOTCHES ARE ONLY NEEDED
IF UNIT IS INSTALLED USING
DRYWALL EXPANSIONS CLIPS
(2 PROVIDED)
THESE 4 HOLES ARE ONLY REQUIRED
WHEN MOUNTING UNIT TO A SOLID
SURFACE (PODIUM, DESK, ETC.).
SECURE UNIT WITH #4 SCREWS.
SUGGEST INSTALLATION OF #4-40
THREADED INSERTS AT THESE 4
LOCATIONS.
MOUNTING USING EXPANSION CLIPS
(SHOWN THIS SIDE ONLY
.250 MAX RADIUS ALLOWED
IN THESE 4 CORNERS
.125 MAX RADIUS ALLOWED
IN CORNERS OF NOTCHES
CUTOUT
FRONT BEZEL
FRONT BEZEL
MOUNTING USING #4 SCREWS
(SHOWN THIS SIDE ONLY)
NOTICE: This drawing is the
UNLESS OTHERWISE SPECIFIED:
property of AMX Corporation.
TOLERANCE ON DECIMAL DIMENSIONS:
XX = .010
All information contained herein
XXX = .005
that is not generally known
TOLERANCE ON HOLE DIAMETERS:
shall be confidential except
UNDER .250 ú = +/- .005
.250 TO .500
= +.006 -.005
to the extent the information
OVER .500
= +.008 -.005
has been previously established.
FRACTIONAL DIMENSIONS INCLUDING HOLES: +/- 1/64
This drawing may not be copied,
ANGLES: +/- 1.0°
SURFACE FLATNESS .003 TIR PER LINEAR INCH.
reproduced, or used as the basis
ALL DIMENSIONS IN INCHES.
for manufacture or sale without
DO NOT SCALE THIS DRAWING.
written permission.
REVISIONS
REV
ECN
DESCRIPTION
RELEASE TO PRODUCTION
A
NOTICE
THIS CUTOUT WILL NOT
ACCOMMODATE THE BB-CP4
CONDUIT WALLBOX. REFER
TO THE MOUNTING SPECIFICATION
FOR THE BB-CP4 FOR SPECIFIC
MOUNTING DIMENSIONS AND
INFORMATION.
REL DATE
REL APPR
REV APPR
DRAWN
JSV
6/25/01
TM
ENGR SERV

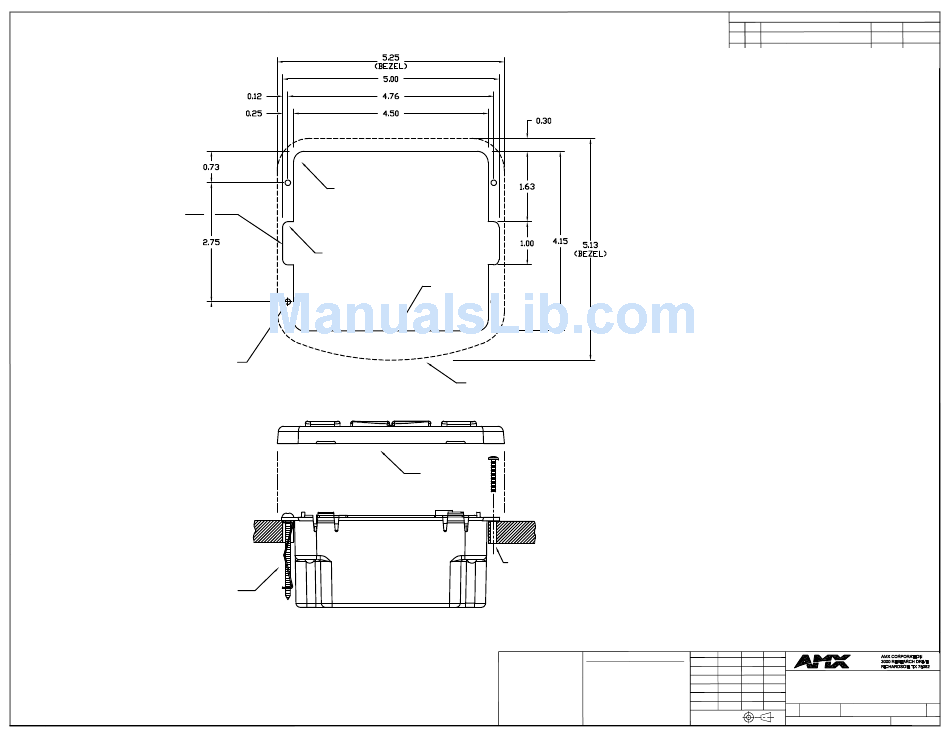

MOUNTING / MILLWORK SPECIFICATION
ENGINEER
AXD-CP4
PROD ENGR
MATL SUP
SIZE
SCALE
DWG. NO.
QUALITY
C
FULL
SP-5921-01
THIRD ANGLE
PROJECTION
SP-5921-01
DATE
APPROVED
09-21-01
REV.
A
SHEET
1 OF 1
