American Dynamics ADC531 Specifications

FEATURES
•
1/3-inch interline black &
white CCD
•
380 TV lines resolution
•
0.1 lux low light
sensitivity
•
Sensitive to IR
illumination
•
Supports DC-type or
EE-type auto iris lenses
•
CS lens mount with
C adapter included
•
Aperture correction
•
Automatic electronic
shutter
•
Automatic gain control
•
Automatic backlight
compensation
•
Phase adjustable line-lock
•
24 VAC input
•
Internal isolation
transformer
•
Low power consumption
ADC531 and ADC531X

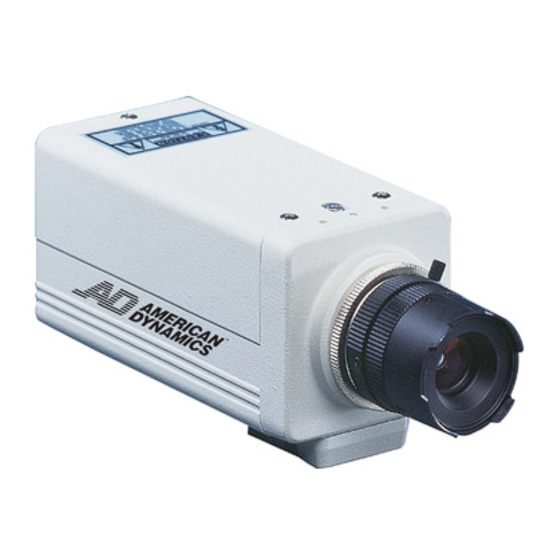

1/3-INCH BLACK & WHITE CCD CAMERA
The ADC531 and ADC531X black & white
1/3-inch CCD cameras are an excellent choice
for general purpose applications. Featuring
sensitivity of 0.1 lux, along with automatic
electronic shutter and automatic gain control,
the camera will operate in a wide range of
lighting conditions. For more extreme lighting
conditions, the camera also supports the use of
DC-type or EE-type auto iris lenses.
With 380 lines of resolution and aperture
correction, the camera delivers clean, sharp
pictures. Additionally, the camera features
phase adjustable line-lock for "roll-free"
switching and a fully isolated power supply
enabling multiple cameras to be connected to a
single 24 VAC source. This isolation also helps
eliminate ground loops.
These cameras are sensitive to infrared light
and are suitable for use in covert surveillance
applications in conjunction with
IR illuminators.
www.americandynamics.net
