American Dynamics AD2032 Specifications

FEATURES
AD2096 Series
Alarm Interface Unit
•
Input of 64 hard-wired
alarms
•
Multiple units cascadable
on a single RS-232 link
•
Enables the system to
automatically respond to
external inputs
•
Diagnostic LEDs
•
Alarm presence indication
•
Provides single relay output
•
Universal wall, surface, or
rack mount

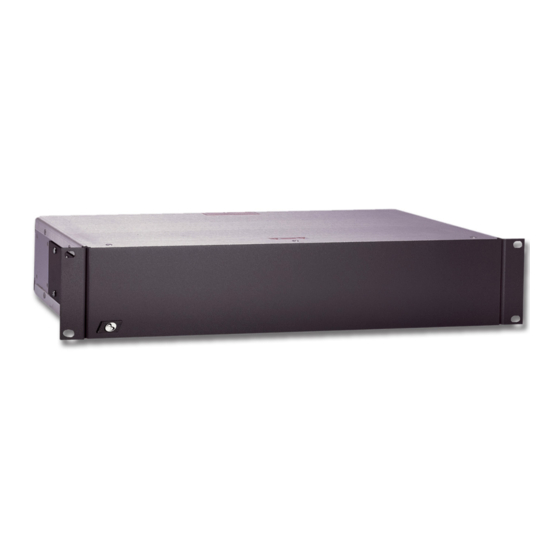

AD2032 Series
Alarm Responder
•
Activates relays that
correspond to video
outputs in alarm
•
32 addressable Form-A
relays
•
Relays can activate VCRs,
annunciators, or other
external alarm devices
•
Diagnostic LEDs
•
Universal wall, surface, or
rack mount
AD2096 and
AD2032 Series
ALARM ACCESSORIES
The AD2096 Series Alarm Interface Unit
converts sixty-four hardwire alarm inputs to
AD alarm contact numbers for use by American
Dynamics Matrix Switcher/Controller systems.
The matrix switcher/controller systems can be
programmed to automatically switch video
inputs to video outputs, display presets, and
activate auxiliary outputs in response to
activated alarm inputs. A single Form C relay
and LED indicate when any of the sixty-four
alarm contacts are activated. DIP switches are
used to select alarm input groups (in blocks of
sixty-four), to set acceptance of normally-open
or normally-closed alarms (in groups of eight),
and to set the baud rate of the RS-232 link.
Multiple units can be cascaded on a single
RS-232 system port. The universal mount
enables the unit to be mounted to the front or
rear of equipment racks, or flat on a wall or
horizontal surface.
The AD2032 Series Alarm Responder provides
thirty-two addressable double pole Form A
relays arranged in two groups of sixteen. The
Alarm Responder provides relay contact
closures for corresponding video outputs that
are displaying alarm actions. Each relay group
can be programmed to respond to two separate
groups of sixteen contiguous video outputs.
Relays can activate VCRs, annunciators, or
other external alarm associated devices. The
unit is used with MegaPower™ Series Matrix
Switcher/Controller Systems via High Speed
Data Line or AD Manchester code line. The
universal mount enables the unit to be
mounted to the front or rear of equipment
racks, or flat on a wall or horizontal surface.
