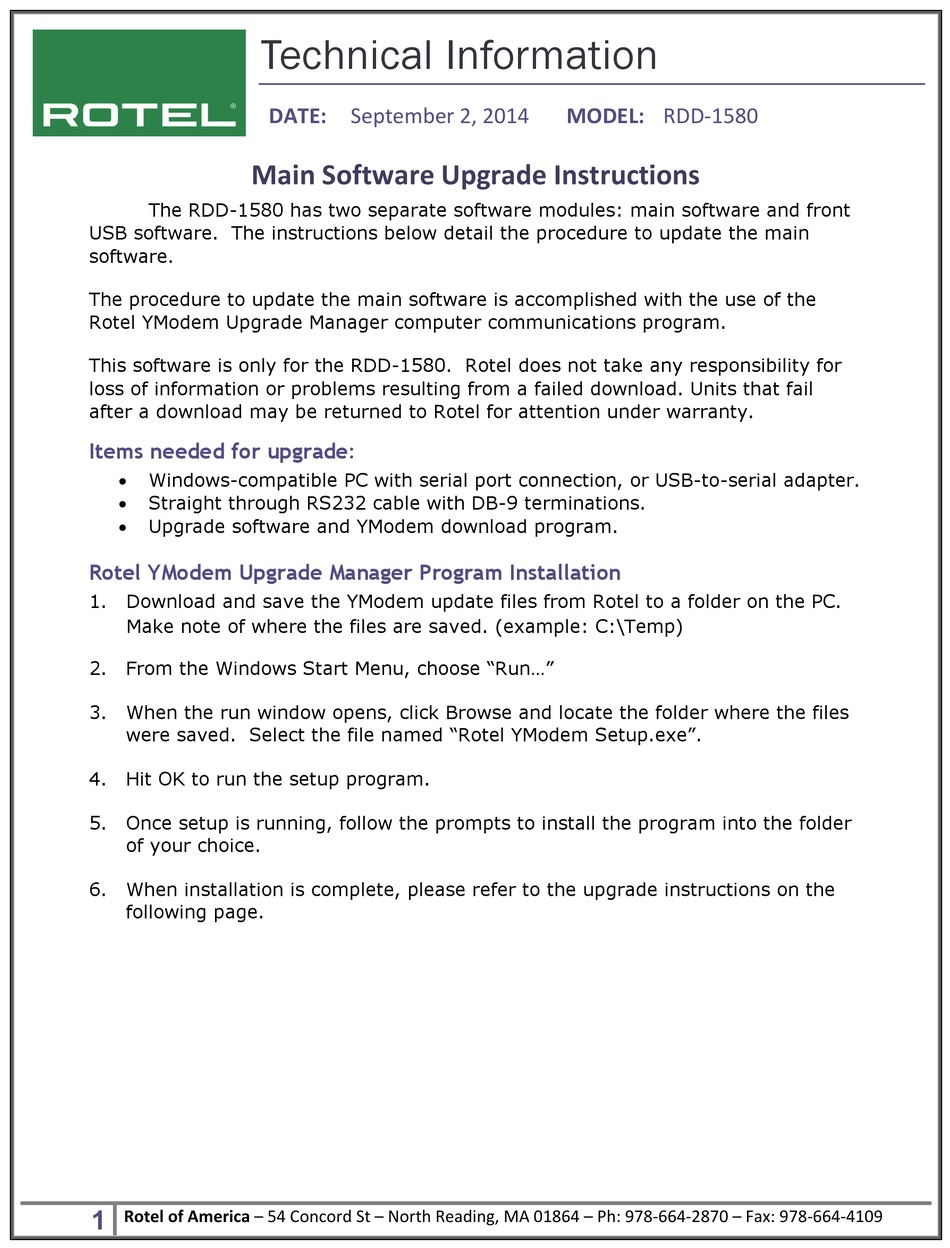

Technical Information
Main Software Upgrade Instructions
The RDD-1580 has two separate software modules: main software and front
USB software. The instructions below detail the procedure to update the main
software.
The procedure to update the main software is accomplished with the use of the
Rotel YModem Upgrade Manager computer communications program.
This software is only for the RDD-1580. Rotel does not take any responsibility for
loss of information or problems resulting from a failed download. Units that fail
after a download may be returned to Rotel for attention under warranty.
Items needed for upgrade:
Windows-compatible PC with serial port connection, or USB-to-serial adapter.
Straight through RS232 cable with DB-9 terminations.
Upgrade software and YModem download program.
Rotel YModem Upgrade Manager Program Installation
1.
Download and save the YModem update files from Rotel to a folder on the PC.
Make note of where the files are saved. (example: C:\Temp)
2. From the Windows Start Menu, choose "Run..."
3. When the run window opens, click Browse and locate the folder where the files
were saved. Select the file named "Rotel YModem Setup.exe".
4. Hit OK to run the setup program.
5. Once setup is running, follow the prompts to install the program into the folder
of your choice.
6. When installation is complete, please refer to the upgrade instructions on the
following page.
1
Rotel of America – 54 Concord St – North Reading, MA 01864 – Ph: 978‐664‐2870 – Fax: 978‐664‐4109
DATE:   September 2, 2014
MODEL:  RDD‐1580

Advertisement

loading

Related Manuals for Rotel RDD-1580

Summary of Contents for Rotel RDD-1580

  • Page 1 The procedure to update the main software is accomplished with the use of the Rotel YModem Upgrade Manager computer communications program. This software is only for the RDD-1580. Rotel does not take any responsibility for loss of information or problems resulting from a failed download. Units that fail after a download may be returned to Rotel for attention under warranty.
  • Page 2 Upgrade Procedure Connect the RS232 cable between the unit and the computer. Launch the Rotel YModem Upgrade Manager computer program. It should be located in the folder labeled “Rotel YModem Upgrade Manager”. Once the YModem program has launched, verify or adjust the settings to the following: ...
  • Page 3 OK. Once the file has been selected, click the “Send Upgrade Request” button. The front panel display of the unit should turn off and some text should appear in the window of the YModem program. Rotel of America – 54 Concord St – North Reading, MA 01864 – Ph: 978‐664‐2870 – Fax: 978‐664‐4109...
  • Page 4 Press “OK” to close the file transfer window, and then press “Close” to close the YModem Upgrade Manager. Unplug the RDD-1580, then power back on to complete the upgrade process. If at any time the update is interrupted or failed, or the...

  • Page 5: Troubleshooting

    3. From the Device Manager Window, look for the setting labeled Ports (COM & LPT), and click on the + to open this section. The USB to Serial adapter should be listed in this area, with the COM port in use listed in parenthesis next to it. Rotel of America – 54 Concord St – North Reading, MA 01864 – Ph: 978‐664‐2870 – Fax: 978‐664‐4109...
  • Page 6 A drop down menu will list all of the available com ports on the computer in black, while those ports that are currently in use are grayed out. Select an available port, and close the assistant to save the changes. Rotel of America – 54 Concord St – North Reading, MA 01864 – Ph: 978‐664‐2870 – Fax: 978‐664‐4109...
