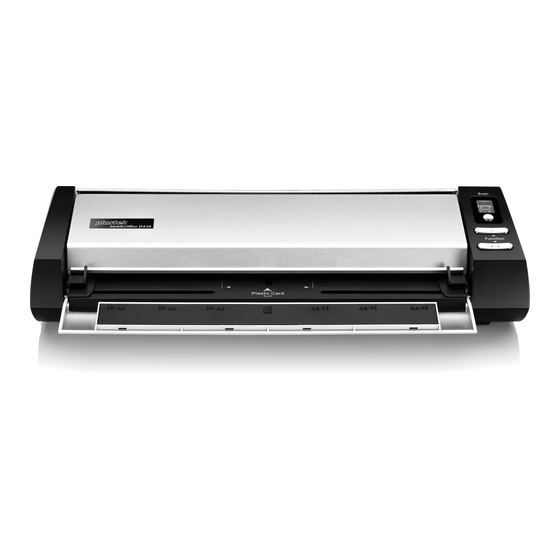

Plustek MobileOffice D430 Quick Start Manual

MobileOffice D430
Quick Start Guide
1
Connect and Install Driver
PDF Utility
Insert the product CD or visit Plustek website to download
and install scanner driver.
www.plustek.com/d430
Check the system tray to see if the installation is successful
when the scanner is connected.
1. Click button to select saving folder.
2. Click Setup button to select the filename format.
3. Select desired file format. This selection should match with the selection
of Scan Mode.
4. Click Configure button to configure advanced settings, you may select
to generate all pages in one file. Click Setting button to select the
desired OCR language.
5. Check the scan settings and make any required changes.
6. After all settings are done, click Apply button.
7. Double-click on PDF icon to scan. Or press up/down function button
to select corresponding number then press the Scan button on the
scanner panel.
* Keep the Calibration Sheet in case you need to calibrate the scanner in the future.
2
Scan Document & Plastic Cards
a
b
* Remember to select Card as Page Size to scan and eject the
card from the front side of the scanner.
BCR Utility
1. Select the desired BCR language.
2. Check the scan settings and make any required changes.
3. After all settings are done, click Apply button.
a. Up: horizontal eject b. Down: vertical eject
* Calibration sheet
