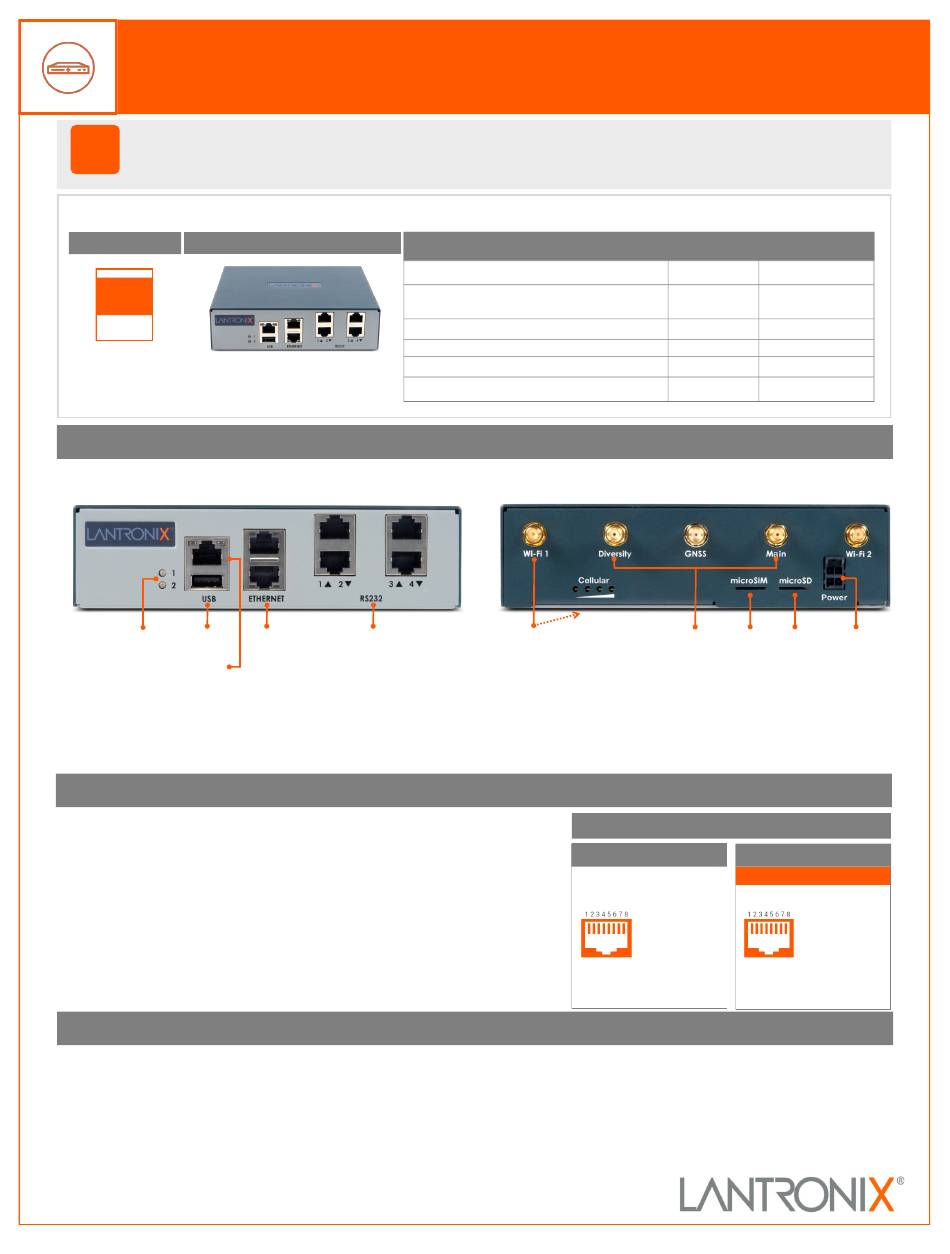

Lantronix EMG 7500 Quick Start Manual

™
EMG
!
Thank you for choosing Lantronix. Please register the EMG 7500 in order to receive notifications for
firmware and documentation updates at www.lantronix.com/product-registration.
WHAT'S IN THE BOX
Quick Start Guide
START
EMG751021 shown. Additional model
1. HARDWARE OVERVIEW

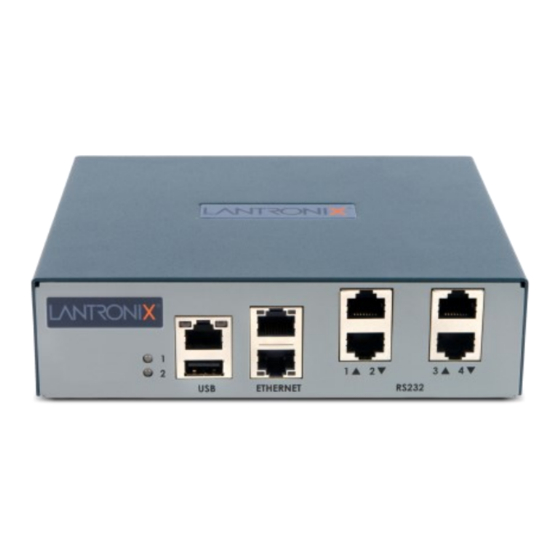

Front View
LEDs
LEDs USB Port
Console
Port
The front of the EMG 7500 unit offers up to 4 RJ45 (RS-232) or USB
serial device port connections.
2. CONNECTING THE EMG 7500
The front console port allows a dumb terminal or PC with terminal emulation software
to locally access management functions and connected devices.
The device ports allow simple and flexible connections to serial devices using adapters
and a standard CAT5 cable. Connect one end of the CAT5 cable to the device port and
the other end to an adapter that attaches to the serial console of the target system.
The default communication parameters for the device ports and console ports are:
• 9600 baud • 1 stop bit • 8 data bits • No flow control • No parity
Note: EMG 7500 device ports are reversed by default, and are software configurable.
3. HARDWARE INSTALLATION
1. Install the unit on a desktop or other flat, horizontal surface. Rack
mount and wall mount kits are available as optional accessories.
2. Connect the equipment to the numbered device ports on the unit
using the appropriate cables and adapters.
3. Connect the unit to the network using the Ethernet 1 network port.
4. Connect the power cord to apply power.
5. The top front LED turns green to indicate that power is ON and at
least one of the Ethernet ports has a link or both Ethernet ports are
disabled. The LED blinks red if none of the enabled Ethernet ports has
a link.
7500 Quick Start Guide
EMG 7500
External Universal AC (100W, 12V) Power Supply
North American Power Cord - 110V AC power cord, 8
ft (2.43m), RoHS
RJ45 to DB9F Adapter
RJ45 to RJ45, CAT5 Cable, 6.6 ft (2 m)
RJ45 Loopback Cable
variants are available. Rubber feet with adhesive
Ethernet
I/O Device Ports
(RJ45 or USB)
Accessories
Wi-Fi Antennas Cellular Antennas
(if installed) (if installed)
The back of the EMG 7500 unit offers one optional LTE cellular modem
and one 4-port I/O (RJ45 or USB) module or connectivity (Wi-Fi or dialup
modem) module, depending on model selected.
Console Port (RS-232)
1. RTS
2. DTR
3. TX
4. GND
5. GND
6. RX
7. DSR
8. CTS
Not Reversible
6. Wait about a minute and a half for the boot process to complete. The
first time you power up the EMG unit, Eth1 tries to obtain its IP Address
via DHCP.
Warning: If rack mounting the EMG,
do not block the air vents on the
sides of the unit. If mounted in an
enclosed rack, it is recommended
that the rack have a ventilation fan.
1
Edge Management
Gateway
Part Number Quantity
ACC-520-0164-00 1
ACC-500-041-R 1
ACC-200.2070A 1
ACC-200.0062 1
ACC-500-153 1
120-008-R 4 pieces
Back View
Micro Micro
SIM SD
Default Pin Assignments
Device Ports (RS-232)
Reversed by Default
(Out) 1. CTS
(Out) 2. DSR
(Out) 3. RX
4. GND
5. GND
(In) 6. TX
(In) 7. DTR
(In) 8. RTS
Software Reversible
Power
input
(In)
(In)
(In)
(Out)
(Out)
(Out)
