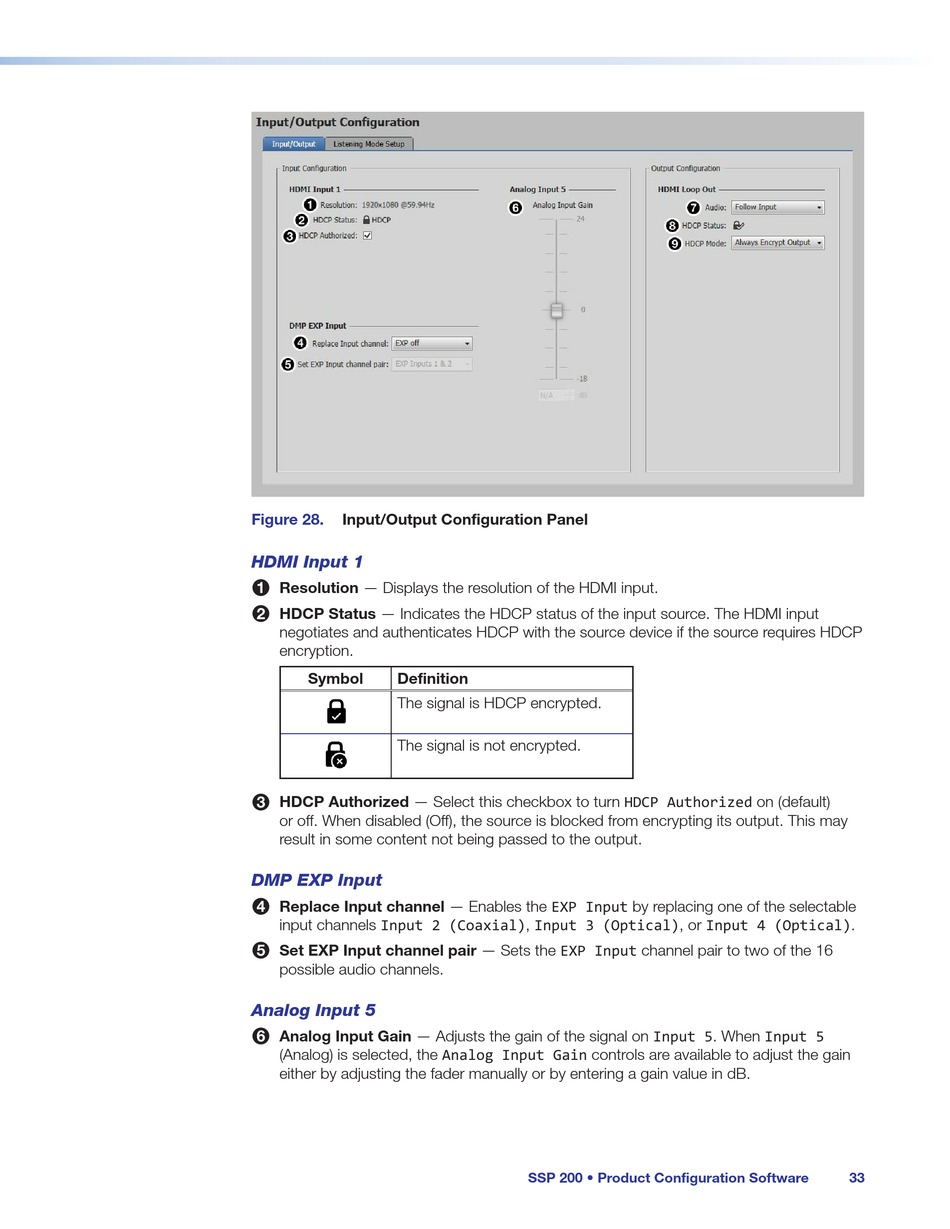

Figure 28.
Input/Output Configuration Panel
HDMI Input 1
Resolution — Displays the resolution of the HDMI input.
1
HDCP Status — Indicates the HDCP status of the input source. The HDMI input
2
negotiates and authenticates HDCP with the source device if the source requires HDCP
encryption.
Symbol
Definition
The signal is HDCP encrypted.
The signal is not encrypted.
HDCP Authorized — Select this checkbox to turn HDCP Authorized on (default)
3
or off. When disabled (Off), the source is blocked from encrypting its output. This may
result in some content not being passed to the output.
DMP EXP Input
Replace Input channel — Enables the EXP Input by replacing one of the selectable
4
input channels Input 2 (Coaxial), Input 3 (Optical), or Input 4 (Optical).
Set EXP Input channel pair — Sets the EXP Input channel pair to two of the 16
5
possible audio channels.
Analog Input 5
Analog Input Gain — Adjusts the gain of the signal on Input 5. When Input 5
6
(Analog) is selected, the Analog Input Gain controls are available to adjust the gain
either by adjusting the fader manually or by entering a gain value in dB.
SSP 200 • Product Configuration Software
